PCE-VE 270SV Videoscope with Side View Camera

ORDER ME IN
Product code: PCE-VE-270SV

Backorder Now, once ordered your item will dispatch before the 19th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

Borescope with for inspecting motors and machine parts with sideview camera that allows 90 degrees viewing angle.

-With a flexible, long (2000 mm) and thin (3 mm diameter) cable.

-With waterproof lens and camera.

-Images/videos are stored in a microSD card.

Read more

$7,409.20 AUD + GST
 $8,150.12 AUD Inc. GST

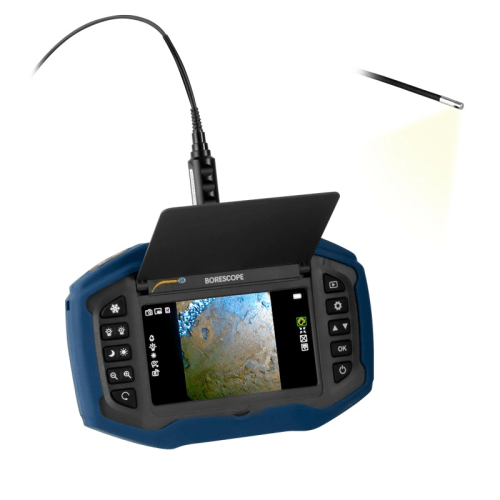

The videoscope with side view camera gives you new, visual insights into the interior of motors and systems. The inspection camera is the ideal tool for maintenance and repair in workshops or industrial companies. Optical analysis with an inspection camera has never been so easy. Guide the flexible cable through a hole or a cavity near the point to be inspected and look at everything on the display from the inspection camera. Thanks to the flexible guidance, the low weight and the excellent optics, you can use this inspection camera to identify weak spots and problem areas very easily and early and thus take preventive measures without having to carry out complex disassembly first.

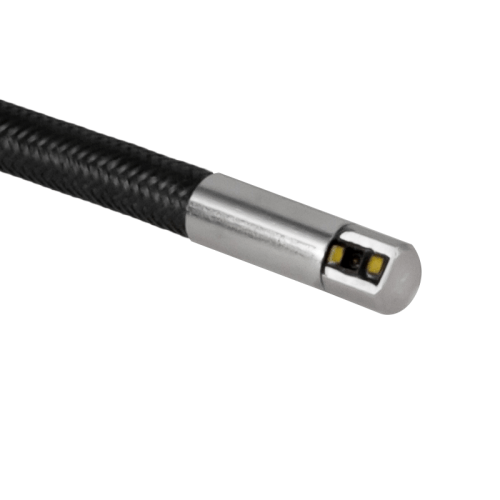

This videoscope with side view camera is extremely versatile, particularly due to the length of the flexible part (2000 mm) and the small diameter of 3 mm. LEDs on the inspection camera illuminate the cavities. The waterproof lens and camera can also be used in liquids without hesitation. Make your daily work easier and use the inspection camera for the maintenance and inspection of your operational systems and machines. The inspection camera can be used to save images and videos for documentation on a memory card. The inspection camera can be connected to a monitor via the HDMI interface.
Features:
- 2 m cable length
- 3 mm cable diameter
- Storage function on micro SD card
- LED light
- 90 degrees side viewing angle

Specifications

- Cable length: 2000 mm
- Cable type: flexible
- Cable diameter: 3 mm
- Degree of protection: IP67
- Depth of field of view: 5 to 50 mm
- Field of view: 120 degrees
- Angle of view: 90 degrees
- Lighting: 2 LEDs
- Exposure: automatic
- Anti-reflective coating: automatic
- Image sensor: 1/18 inch CMOS
- Camera resolution / image sensor: 400 x 400 Px
- Display: 5 inch TFT screen
- Interface: Micro-USB, HDMI
- Storage option: Image and video
- Storage: Micro SD memory card
- Picture format: JPEG (400 x 400 Px)
- Video format: MP4 (400 x 400 Px)
- Video output: HDMI
- Menu navigation: German, English, Chinese, Spanish, Portuguese,
French, Russian, Japanese, Korean
- Operating and storage temperature: -10 to 50 C
- Power supply: 3.7 V Li-ion battery, 5200 mAh
- Battery life: min. 6 h
- Dimensions: 200 x 130 x 58 mm
- Weight: 595 g
