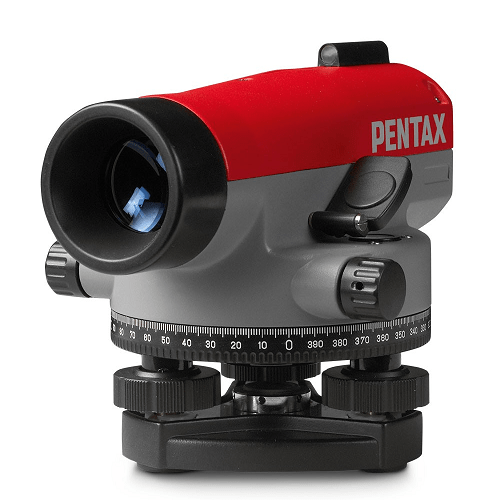

PENTAX AP-228: 28 x optical zoom, 1km levelling run = 1.5 mm.
Unfortunately, the PENTAX AP-228 has been discontinued, check out the PENTAX AP-230 as an alternative.Â
Set up to cost effective and accurate leveling work AP-228 Level is a perfect entry level designed for ease of use and guaranteed productivity
Unfortunately, the PENTAX AP-228 has been discontinued, check out the
PENTAX AP-230 as an alternative.
Features:
- Very Short Focusing Distance: 0.3m
- Optimal for close range work
- Robust construction: Metal top cover
- Weather and Dust Resistance: IP55
- An easy-to-read horizontal circle
- Magnetic damped automatic compensator for rapid and accurate results
- Lightweight design
Specifications
- Magnification: 28x
- Objective aperture: 30 mm
- Resolving power: 3"
- Field of view: 120
- Minimum focus distance: 0.3 m
- Stada ratio: 100
- Stadia constant: 0
- Accuracy (Double rune levelling): 1.5 mm
- working range: +/- 15
- Type: Magnetic
- Circular: 8'/2mm
- Minimum division: 1/1gon
- Reading system: Total area 400G/360
- Dust and water resistance: IP55
- Dimensions (L x W X H): 200mm x 130mm x 140mm
- Weight: 1.25 kg
Applications:
- General Building and Construction
- Civil Engineering
- Landscaping
- Agricultural Engineering
