Phase Power Analyzer with Harmonic Measurement

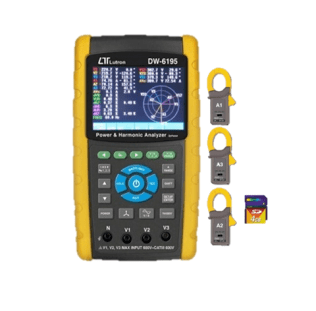

The DW6195 is a power analyser that provides real time recording with harmonic measurement and displays them in a colored screen.
- Monitors AC parameters, Power Factor, Phase, Harmonics, Crest Factor, Active, Apparent, and Reactive Power.
- Records measurements in real time (every 2 seconds up to 7200 seconds) to SD card.
- Includes 3 x 1200 amp current clamps.
Regular price
$3,509.30 AUD
+ GST
$3,860.23 AUD Inc. GST
$3,860.23 AUD Inc. GST
DW6195 Features
- Analysis for 3 phase multi-power system, 1P/2W, 1P/3W 3P/3W, 3P/4W. Voltage and Current are the True RMS value.
- 3 current probes ( CP-1201 ) are included, if change the current probes, the calibration procedures are not necessary.
- Meter can cooperate the universal current probes.
- Complete set with 4 PCs Test Leads, 4 PCs Alligator clips, 3 PCs Clamp Probe ( CP 1201 ), AC to DC 9V adapter, 2 G SD memory card and Carrying bag
- Harmonics display (1-50th order).
- Simultaneous display of Harmonics and Waveform.
- Display of Waveform with Peak Values.
- Analysis of Total Harmonic Distortion ( THD ).
- Graphic Phase diagram with 3-Phase system parameters.
- 3 phase Voltage or Current Unbalanced Ratio ( VUR, AUR ) and Unbalanced Factor.
- Calculated Unbalanced Current through Neutral Line ( An )
- Capture Transient events (including Dip, Swell and Outage ) with programmable threshold ( % ).
2 Year Warranty (1 Year Manufacturer Warranty + Bonus 1 Year Instrument Choice Warranty)
Standard package includes:
DW6195 meter and 3 x 1200 amp current clamps.
Specifications
Circuit
|
Custom one-chip of microprocessor LSI circuit
|
Display
|
TFT LCD (320 X 240 pixels) with back light
|
Measurement
|
V (phase-to-phase), V (phase-to-ground), A (phase-to-ground), KW / KVA / KVAR / PF (phase), KW / KVA / KVAR / PF (system), KWH / KVAH / KVARH / PFH (system), Power factor, Phase angle, Frequency, Harmonics display
|
Wire connections
|
1P/2W, 1P/3W, 3P/3W, 3P/4W
|
Voltage ranges
|
10 ACV to 600 ACV, auto range
|
Current probe input signal and range
|
(ACV)
|
Safety standard
|
IEC1010 CAT III 600 V
|
ACV input impedance
|
10 Mega ohms
|
Range select
|
ACV Auto range and ACA Manual range
|
Clamp frequency response
|
40 Hz to 1 KHz
|
Spec. tested frequency
|
45 to 65 Hz
|
Over load protection
|
ACV
|
Data Hold
|
Freeze the display reading.
|
Data Record
|
SD Card Record.
|
Sampling Time
|
Approx. 1 second.
|
Power ON/OFF
|
Manual OFF by push button.
|
Over Indicator
|
LCD display show OL .
|
Under Indicator
|
The data save into the SD card will show 9999 or 999 ( overleap the decimal point )
|
Real time data logger
|
year/month/data/hour/minute/second; downloadable to the Excel
|
Sampling time for data logger
|
2 seconds to 7200 seconds, the during of setting step are 2 seconds
|
Data Output (USB/RS232 Computer interface)
|
RS232 computer serial interface
|
Operating Temperature
|
0 to 50 C (32 to 122 F)
|
Operating Humidity
|
Less than 80% R.H.
|
Power Supply
|
DC 1.5V, AA ( UM-3 ) Battery X 8 PCs (Alkaline or heavy-duty battery)/AC to DC 9V power adapter.
|
Power Consumption
|
Meter
|
