Pool Line Professional Waterproof Portable pH/ORP/ISE Meter - IC-HI981914
Backorder Now, once ordered your item will dispatch before the 21st of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

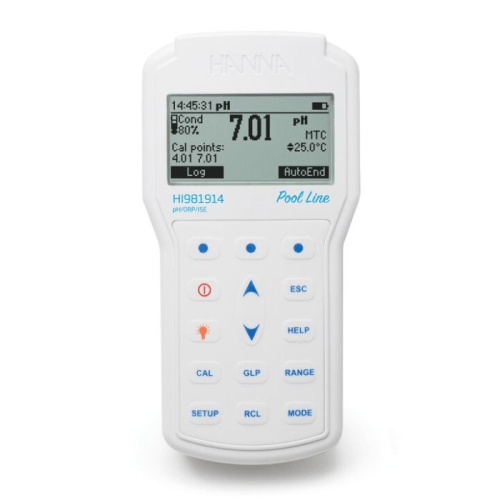

The HI981914 Pool Line Professional Waterproof Portable pH/ORP meter is made for measuring pH and ORP of a swimming pool, hot tub, or spa water.
- - Laboratory grade measurements in a portable.
- - CAL Check advanced probe diagnostics.
- - Troubleshooting tool for the maintenance of process probes.
Regular price
$1,224.91 AUD
+ GST
$1,347.41 AUD Inc. GST
$1,347.41 AUD Inc. GST
The HI981914 Pool Line Professional Waterproof Portable pH/ORP meter is a highly accurate that is equivalent to meters used in laboratories. HI 981914 offers many advanced features from a large dot matrix LCD that provides for an intuitive user interface in the operation of the meter, log on demand for storing readings, USB port for transferring data, GLP data for tracking calibration data, and Hannas exclusive CAL Check for pH calibration diagnostics.
During the calibration process the meter analyzes the mV signal being generated and provides warnings to whether the probe needs to be cleaned or of the buffer is contaminated. After calibration the meter displays the overall health of the pH electrode as a percentage and is based on both the offset (mV value in pH 7 buffer) and slope (mV difference from pH 7 to pH 4/10) characteristics.
The HI981914 uses pH and ORP probes with a BNC connector. The BNC connector can be used with process probes for evaluation of their performance. For pH it is possible to set the meter to a default calibration that resets the meter to the ideal mV response for a pH probe. When this is done then it is possible to connect a pH probe and perform a calibration. CAL-Check will provide the diagnostic messages to indicate potential problems.
The probe characteristics can be reviewed using the GLP feature. An acceptable offset value is +/-30 mV and the slope should be better than 90%. Values greater than +/- 60 mV or a slope less than 85% are indicators that the probe needs to be replaced in the near future to avoid a service calls due to probe failure or loss of control parameters.
The HI981914 can be used for process calibration as well in which the measurement is made with a calibrated pH probe or a measurement by an ORP probe and the value entered into a process controller to match the measured values.
3 Year Warranty (2 Year Manufacturer Warranty + Bonus 1 Year Instrument Choice Warranty)
HI981914 Features
- Setup Screen: Our extensive setup screen features a host of configurable options such as time, date, temperature units and language for help screens and guides.
- CAL Check Probe Diagnostics: Choose from seven standard pH buffers and five custom values to obtain up to five-point calibration and achieve high precision readings with a 0.001 pH resolution and a pH accuracy of +/- 0.002.
- GLP: Comprehensive GLP functions are directly accessible by pressing the GLP key. Calibration data, including date, time, and calibration values are stored with logged data for retrieval at a later time.
- Five point pH calibration with seven standard buffers and five custom buffers
- Five point ISE calibration with seven preprogrammed standard in choice of concentration
- ISE direct concentration readout in a choice of concentration units
- Automatic Temperature Compensation
- Calibration timeout to alert the user at a defined interval when the calibration has expired
- Multiple language selection
- 200-hour battery life with battery level displayed on measurement screen
- Menu driven for ease of use with virtual-key extended functionality
- Contextual help at the press of a button
- Backlit, graphic LCD
- Meter displays a clock tag that will disappear when the reading has achieved stability
- Battery Error Prevention System (BEPS): Turns meter off when battery power is too low for an accurate measurement
- PC connectivity via a sealed opto-isolated micro USB and HI92000 software
Standard package includes:
The HI981914 is supplied with HI72911B pH electrode with built-in temperature sensor, HI7662 temperature probe, HI7004M pH 4.01 buffer (230 mL), HI7007M pH 7.01 buffer (230 mL), HI7006014 general purpose cleaning solution sachets (20 mL x 3 pcs.), 100 mL plastic beakers (2 pcs.), 1.5V AAA batteries (4 pcs.), HI920015 micro USB cable, instrument quality certificate, and instruction manual packaged in a rugged thermoformed carrying case.
Specifications
pH Range
|
-2.0 to 20.0; -2.00 to 20.00; -2.000 to 20.000 pH
|
pH Resolution
|
0.1; 0.01; 0.001 pH
|
pH Accuracy
|
+/- 0.1; +/- 0.002 pH
|
pH Calibration
|
up to five point calibration, seven standard buffers available (1.68, 4.01, 6.86, 7.01, 9.18, 10.01, 12.45) and five custom buffers
|
pH Input impedence
|
10x12 Ohms
|
mV Range
|
+/- 2000 mV
|
mV Resolution
|
0.1 mV
|
mV Accuracy
|
+/- 0.2 mV
|
mV Relative Offset
|
+/- 2000 mV
|
ISE Range
|
From 1.00 E-7 to 9.99 E10 concentration
|
ISE Resolution
|
3 digits 0.01, 0.1, 1, 10 concentration
|
ISE Accuracy
|
+/- 0.5% of reading (monovalent ions)
|
Temperature Range
|
-20.0 to 120.0 C (-4.0 to 248.0 F)
|
Temperature Resolution
|
0.1 C (0.1 F)
|
Temperature Accuracy
|
+/- 0.4 C (+/- 0.8 F) (excluding probe error)
|
Temperature Compensation
|
manual or automatic from -20.0 to 120.0 C (-4.0 to 248.0 F)
|
pH Electrode
|
HI72911B titanium body pH & temperature probe (included)
|
Logging Memory
|
300 records, log on demand (100 records per pH, mV, or ISE range)
|
Automatic Shut-Off
|
5, 10, 30, 60 minutes or disabled
|
Battery Type/Life
|
1.5V AA batteries / approximately 200 hours of continuous use without backlight (50 hours with backlight)
|
Environment
|
0 to 50 C (32 to 122 F); RH 100%, IP67
|
Dimensions
|
185 x 93 x 35.2 mm (7.3 x 3.6 x 1.4)
|
Weight
|
400 g (14.2 oz)
|
