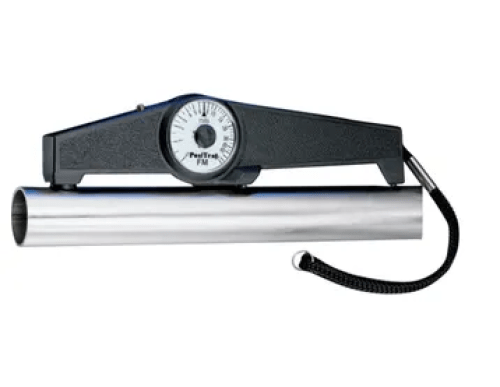

PosiTest F Magnetic Coating Thickness Gauge (0-2000um) - POSITESTF
Backorder Now, once ordered your item will dispatch before the 25th of April 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
Easy to use magnetic pull-off, thickness gauge to measure hot dip galvanizing, hard chrome metalizing, paint, enamel and plastic coatings on steel.
- Permanently calibrated.
- DeFelsko PosiTest F measurement range: 0 to 2000um.
- Complies with the requirements of Australian Standard AS3894.3-2002.
Regular price
$566.00 AUD
+ GST
$622.60 AUD Inc. GST
$622.60 AUD Inc. GST
DeFelsko PosiTest Manual Magnetic, Coating Thickness, Paint and Dry Film Thickness Gauge. Measures non magnetic and non metalic coatings and Paint thickness on steel substrates.
Built with extra rugged housing; not affected by mechanical shock, water, acid or solvents. Carbide measuring probe is durable and built to last.
Compact, lightweight and precisely balanced making it easy to use and store. Also allows for one-handed operation as the probe contact and dial rotation were all designed to be performed using only a finger.
3 Year Warranty (2 Year Manufacturer Warranty + Bonus 1 Year Instrument Choice Warranty)
POSITESTF Features
- Positive visual and audible indicators to designate when thickness reading is established
- V grooves in probe housing and Gage base allow correct positioning on cylindrical objects
- Compact, lightweight, precisely balanced, independent of gravity can be used in any position
- GO/NO-GO button can be pre-set for rapid measurement
- Probe contact and dial rotation all in a one-finger operation
- Furnished with wrist strap and instructions in a high quality leather case with belt loops for your convenience
- Certificate of Calibration showing traceability to NIST included with every gage
- Matching Calibration Standards and Procedures available for every model
- Highly wear resistant Carbide Probe for longest life and continuous accuracy
- Removable center of dial cover for easy calibration adjustment
- Conforms to national and international standards
- Extra rugged housing, not affected by mechanical shock, water, acid or solvents
- Unique overall design, fully supported, positive positioning, no pivoting tendencies during measurement
- Can be used fully supported or with only the front probe area contacting the surface
- Functions on a permanent rare-earth cobalt magnet
- No batteries/electronics
- 2 year warranty
Specifications
Type:
|
Scale F
|
Tolerance:
|
+/- 5um up to 100um (+/- 5% of the reading over 100um)
|
Coating Thickness:
|
0 to 2000um
|
