Power Line Monitor (Line EMI) - IC-PLM

ORDER ME IN
Product code: IC-PLM

Backorder Now, once ordered your item will dispatch before the 10th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

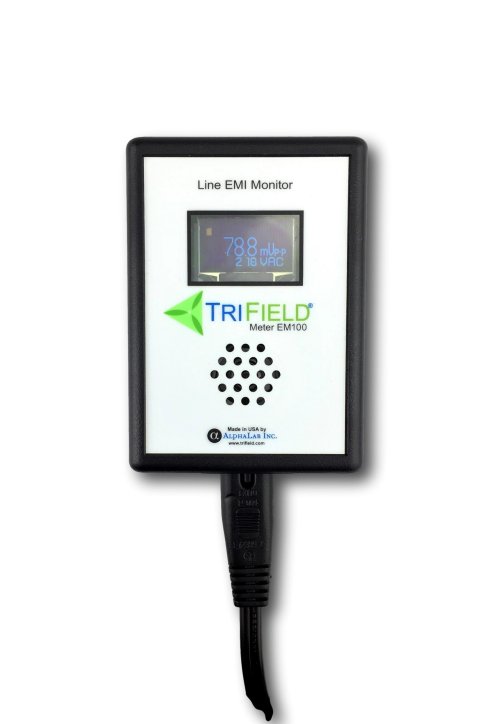

The Line EMI Meter measures electromagnetic interference in a single-phase AC power line. It plugs into a wall outlet (mains socket) and requires no battery.

Read more

$325.00 AUD + GST
 $357.50 AUD Inc. GST

The Line EMI Meter measures electromagnetic interference in a single-phase AC power line. It plugs into a wall outlet (mains socket) and requires no battery. It immediately displays total line noise in millivolts peak to peak (range 1999.9 mVp-p, resolution 0.1 mVp-p) in the frequency range 10 KHz 10 MHz (the frequency limits at which sensitivity is of the maximum sensitivity). A speaker plays the sound of the EMI, amplitude demodulated, in order to identify the EMI source (such as an AM or shortwave radio station vs. a motor vs. an electric arc).

Specifications

:

- Operating Voltage: 85 to 300 VAC 50/60 Hz.
- Voltage Reading: 85 to 250 VAC; Accuracy +/- 1 VAC
- Line Noise Range: 0.1 tp 1999.9 mVp-p AC (differential)
- Line Noise Accuracy: +/- 8% at 20 kHZ to 2 MHz; within a factor of 2 from 10 kHz to 10 MHz
- Size: 5.2 x 3.6 x 1.6 inches; 132 x 91 x 41 mm
- Weight: 8 oz
- Power Cable: Detachable 2-wire cord (appropriate to country)
