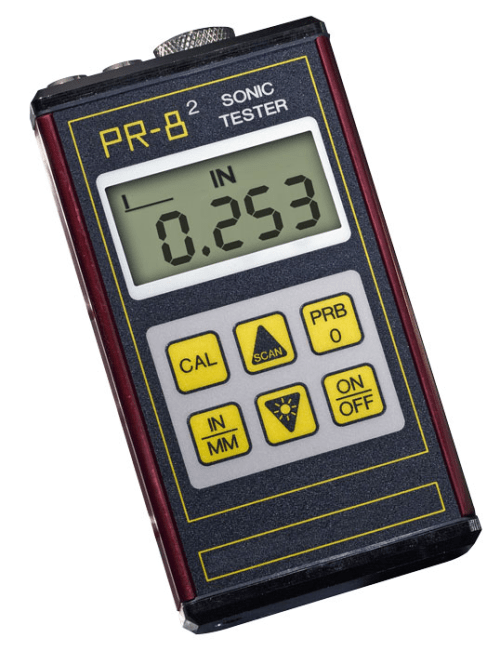

PR-82 Ultrasonic Thickness Gauge with T-104-2120 Probe for cylinders walls & flat decks
Unfortunately, the PR-82 has been discontinued and has been replaced by the PR-9.
The PR-82 is a lightweight, rugged tool that is resistant to water and oil. Can measure paint thickness at point of contact or through the innovative 'scan' mode for cylindrical walls and roll cages. Place the probe at the bottom of the cylinder and drag it to the top, the gauge will display the thinnest reading measured.
Unfortunately, the PR-82 has been discontinued and has been replaced by the
PR-9.
Features:
- Four readings per second for single point measurements or 16 per second in SCAN mode.
- Resolution of 0.001 inch (0.01 mm)
- Large, back-lit LCD display retains last reading
- Simple operator controls virtually eliminate training
- Special-purpose probes are offered for a variety of applications
- Switch-selected units for inches or mm
- CE Certified
- Includes NIST Calibration Certificate
- The PR-82 is supplied as a complete kit with the gauge, probe, 4 oz. bottle of coupling fluid, 2 AA batteries, NIST Calibration Certificate, and Operating
Instruction Manual - all in a foam-fitted carrying case.
Specifications
:- Standard Range: 0.040 to 6.00 in / 1.00 to 150.00 mm
- Range for Cast Steel & AL: 0.040 to 1.50 in / 1.00 to 38.00 mm
- Resolution: 0.001 inches (0.01mm)
- Velocity Range: 0.0492 to 0.3936 in./ms, 1250 to 9999 meters/sec:
- Units: English & Metric (inch or mm)
- Transducer Types: Dual Element (1 to 10 MHz).
- Power Source:Two 1.5V alkaline or 1.2V NiCad AA cells.
- Battery Life:Typically operates for 200 hours on alkaline and 130 hours on NiCad.
- Auto Power off: if idle 5 min
- Display: Multi-function 4.5 digit liquid crystal display with 0.500 inch numerals, backlit for use in poor light conditions
- Keyboard: Sealed membrane that is resistant to both water and petroleum products.
- Case:Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed).
- Operating Temperature: -20 to 120F (-20 to 50C)
- Weigth, net:10 ounces
- Dimensions: 2.5 W x 4.5 H x 1.24 D inches
- Warranty: 5 year limited
- Certification: CE Approved, Factory calibration traceable to national standards
