PRB21S Bypass Process Refractometer
Backorder Now, once ordered your item will dispatch before the 16th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
$10,008.90 AUD Inc. GST

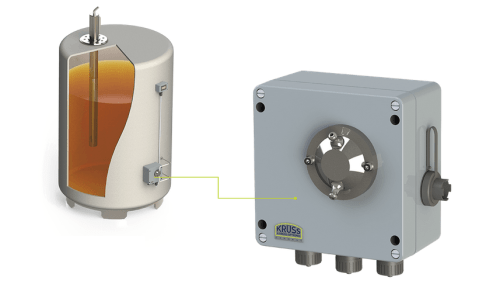

The Atline process refractometer PRB21S are installed in tanks or boilers using tube connections for the continuous monitoring and control of the concentration of liquids. The sample flows via the bypass into the measurement chamber made of stainless steel. The measurement prism consists of scratch-resistant sapphire and is resistant against solvents and acids.
Features:
- Measures refractive index (nd: 1.3200 to 1.5600) and Brix ( 0 to 95 %Brix)
- Measurement intervals from 3 to 60 seconds selectable
- Automatic temperature compensation (%Brix and freely definable for customer-specific products)
- Integrated sensor for temperature monitoring
- Brix scale (sucrose, glucose, fructose and invert sugar)
- Stainless steel measurement chamber that meets all the requirements of the food and pharmaceutical industry, CIP/SIP capable
- Sample prisms, made of scratch-proof and chemical-resistant sapphire
- Cleaning via process cleaning processes
- Suitable for process temperatures up to 120 C
- Two interfaces (RS-232, analogue 0/4-20 mA); a PROFIBUS interface is optionally available
- Display for the visual monitoring is also available
Specifications
:- Scales: Refractive index (nD), Concentration of sucrose, glucose, fructose and invert sugar [%Brix], User-defined
- Refractive index measurement range: 1.3200 to 1.5600
- Refractive index measurement accuracy: +/- 0.0002
- Refractive index measurement resolution: 0.0001
- Brix measurement range: 0 to 95 %Brix
- Brix measurement accuracy: +/- 0.2 %Brix
- Brix measurement resolution: 0.1 %Brix
- Mounting: Atline
- Measurement period: 3 to 60 seconds
- Measurement prism: Sapphire
- Light source: LED
- Wavelength: 589 nm
- Temperature compensation: ICUMSA or freely definable
- Temperature measurement: With integrated temperature sensor Pt100
- Temperature measurement range: 10 to 120 C
- Temperature measurement accuracy: +/- 0.2 C
- Temperature measurement resolution: 0.1
- Process temperature: 10 to 120 C
- Ambient temperature: 0 to 40 C
- Permitted pressure load: 1 - 10 bar
- IP Code: IP65
- Operating Voltage: 24 V (18 to 30 V)
- Power consumption: 5 W without display, 6 W with display
- Dimensions (W x H x D): 180 mm x 190 mm x 180 mm
- Weight: 3 kg
Warranty
- 1 Year Manufacturer Warranty + Additional 1 Year Instrument Choice Warranty
