Precision thin-wall gauge for non-corroded metals - IC-TI-007X

ORDER ME IN
Product code: IC-TI-007X

Backorder Now, once ordered your item will dispatch before the 13th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

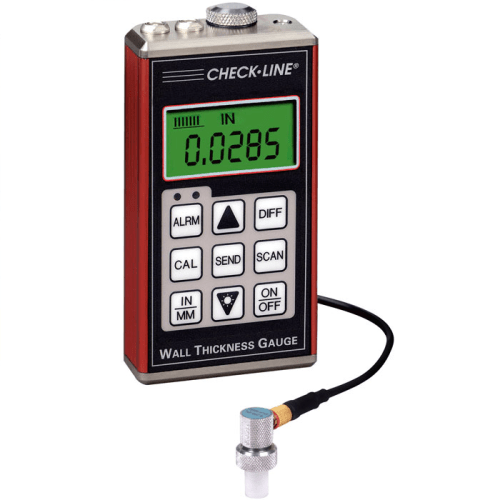

The TI-007X is a precision ultrasonic wall thickness gauge designed for high-resolution measurements on thin-wall metal and plastics. It is packaged in a sturdy extruded aluminum housing which is sealed for excellent environmental protection assuring trouble-free use even in the toughest field and production environments.

Read more

$4,469.40 AUD + GST
 $4,916.34 AUD Inc. GST

The TI-007X is a precision ultrasonic wall thickness gauge designed for high-resolution measurements on thin-wall metal and plastics. It is packaged in a sturdy extruded aluminum housing which is sealed for excellent environmental protection assuring trouble-free use even in the toughest field and production environments.

The TI-007X has measuring range in steel from 0.0060 to 1.0000 inch, (0.15 to 25.40 mm). Using a single element delay tip transducer, the gauges will measure thin materials and automatically remove any coatings in Echo-Echo Mode (E-E) as well as automatically switch to Interface Echo Mode (I-E)when measuring thicker materials, For measurement of plastics, the user would select Plastic Mode (PLAS) and use the option Graphite Delay Line Tip (p/n X-633-0000).
Additional Measuring Modes include Differential (DIFF) where a user sets a "nominal value" and the gauge displays the - difference between then nominal and actual wall thickness, Alarm (user-set Hi/Low Limits) trigger Hi/Lo LED's when the measured values are out of tolerance and Velocity Mode
The TI-007X can also be used with single element contact transducers for wall thickness measurements up to 36 inches (923 mm). Although the TI-007X does not have any built-in memory, it can transfer single values (value on the display) via the USB port to a PC or compatible data collector. No Software is required.
Features:
- Includes NIST Traceable Calibration Certificate
- Resolution of 0.0001 inch (0.001 mm)
- Large, backlit LCD display retains last reading
- Selectable units of inch or mm
- Selectable Backlight ON/OFF/AUTO
- Optional serial RS-232 or Bluetooth output
- IP 65 Rated for protection even in the toughest field conditions
- Operates on two (2) AA Batteries - 45 hours continuous operation
- Powered by: 120MHz FPGA timing & 100 volt spike pulser
- Measure Modes: Pulse-Echo (P-E), Echo-Echo (E-E), Interface Echo (I-E) and Plastics (PLAS)
- Additional Modes Include Differential (from user-entered "nominal value"), Alarm (user-set Hi/Low Limits) and Velocity Mode
- LCD shows Thickness Value, Velocity Setting, Gain Setting, Stability & Battery Indicators, Scan Mode, Zero and units
- Scan mode, 100 readings/sec. Probe is slid over a large measuring area, the minimum thickness during the "scan" will be displayed
- Calibrate to a sample of known thickness which automatically calculates the optimal acoustic velocity
- USB Data output of single values for transfer to data collection devices (no internal memory)
- Adjustable GAIN (AGC) in 5 steps to fine tune the gauge for use on challenging materials or applications
- Can be used with both Single Element Delay Line and contact transducers (5 to 20MHz)
- 5 Year Warranty, CE-Certified and Made in USA
- The TI-007X is supplied as a complete kit with the gauge, probe, 4 oz. bottle of coupling fluid, USB-C Data transfer cable, 2 AA batteries, NIST Traceable Calibration Certificate and Instruction Manual - all in a foam-fitted carrying case.

Specifications

- Total Measuring Range (Steel): 0.006 - 36.000 inches (0.15 - 924 mm),depends on material and transducer/probe type
- Range with Standard Probe: 0.0060-1.0000" (0.15-25.40 mm) with standard delay line transducer in steel
- Resolution: 0.0001" (0.001 mm) . 0.001" (0.01 mm), user-selected units and resolution
- Measuring Modes: Pulse-Echo (P-E), Echo-Echo (E-E), Interface Echo (I-E) and Plastics (PLAS), Differential, Alarm, Scan and Velocity (VX)
- Gain: Automatic time dependent gain (TDG) with manual override
- Velocity Range: 0.0120 to .7300 in/?s (305 to 18,542 m/sec)
- Probe (Standard): 1/4" diameter, 15 MHz delay line transducer with cable (p/n T-402-5507)
- Probes (optional): Various Single Element Delay Line and Contact Transducers (5 to 20MHz)
- Cable: 4 ft. (1.2 m) with Microdot/Lemo00 connector.
- Display: Multi-function 7 segment 4.5 digit liquid crystal display with Back-light
- Display Backlight: Backlight is selectable on/off/auto, and selectable brightness (Lo, Med, Hi) options
- Display Update Rate: 10 Hz (10 updates/sec)
- Output: USB single value only (no internal memory)TI-007DLX for a model with build-in memory for 40,000 values USB output
- Output Optional: RS-232 and Bluetooth
- Operating Temperature: -22 to 167 F (-30 to 75 C)
- Battery Type: 2x AA 1.5V alkaline, 1.2V NiCad, or 1.5V lithium AA cells (rechargeable batteries can be used)
- Battery Life: Typically operates for 35 hours on alkaline and 18 hours on NiCad
- Weight: 11 ounces (308 grams)
- Dimensions: 2.5 x 5.17 x 1.25"(64 x 131 x 32 mm)
