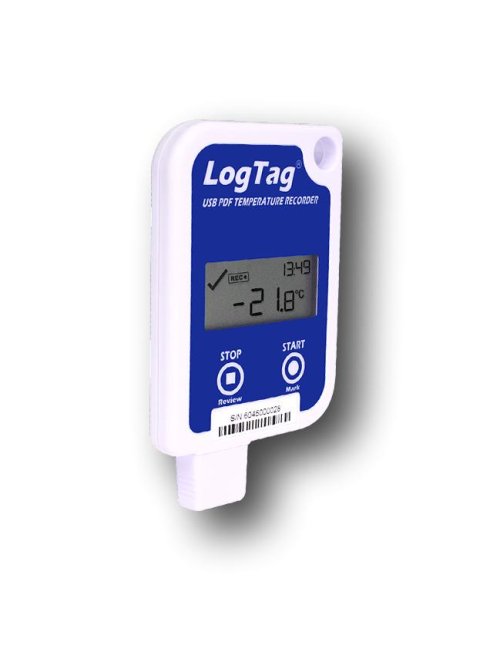

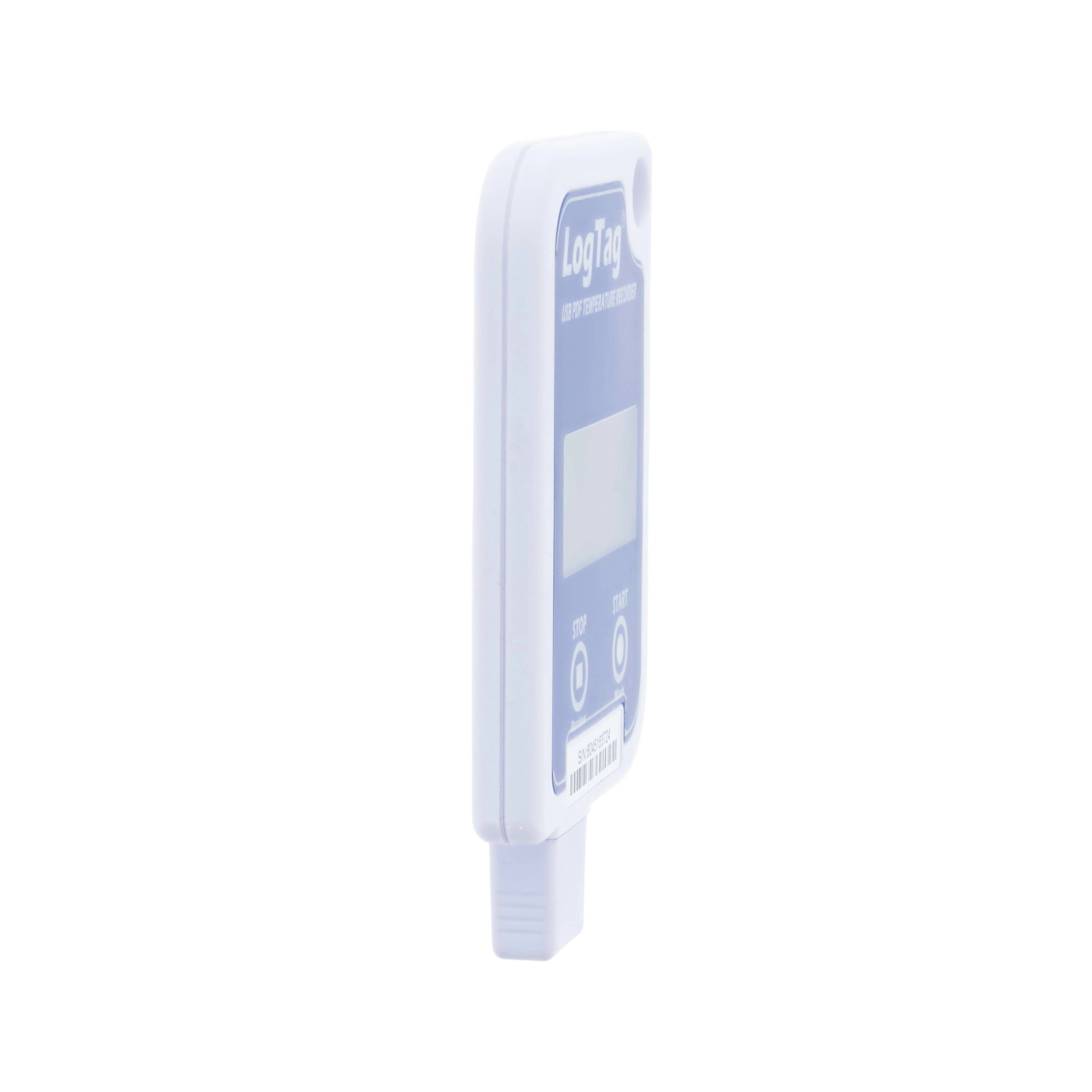

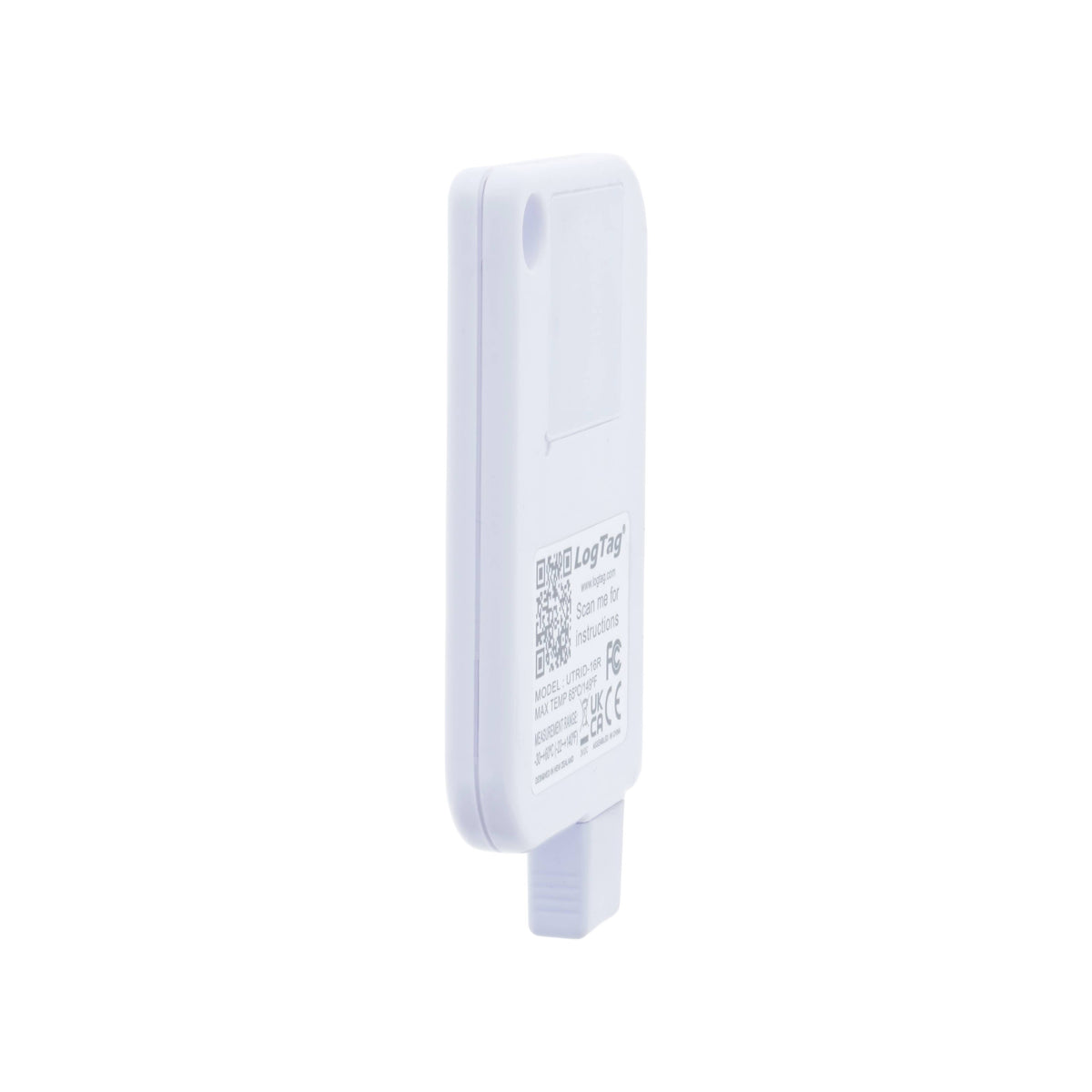

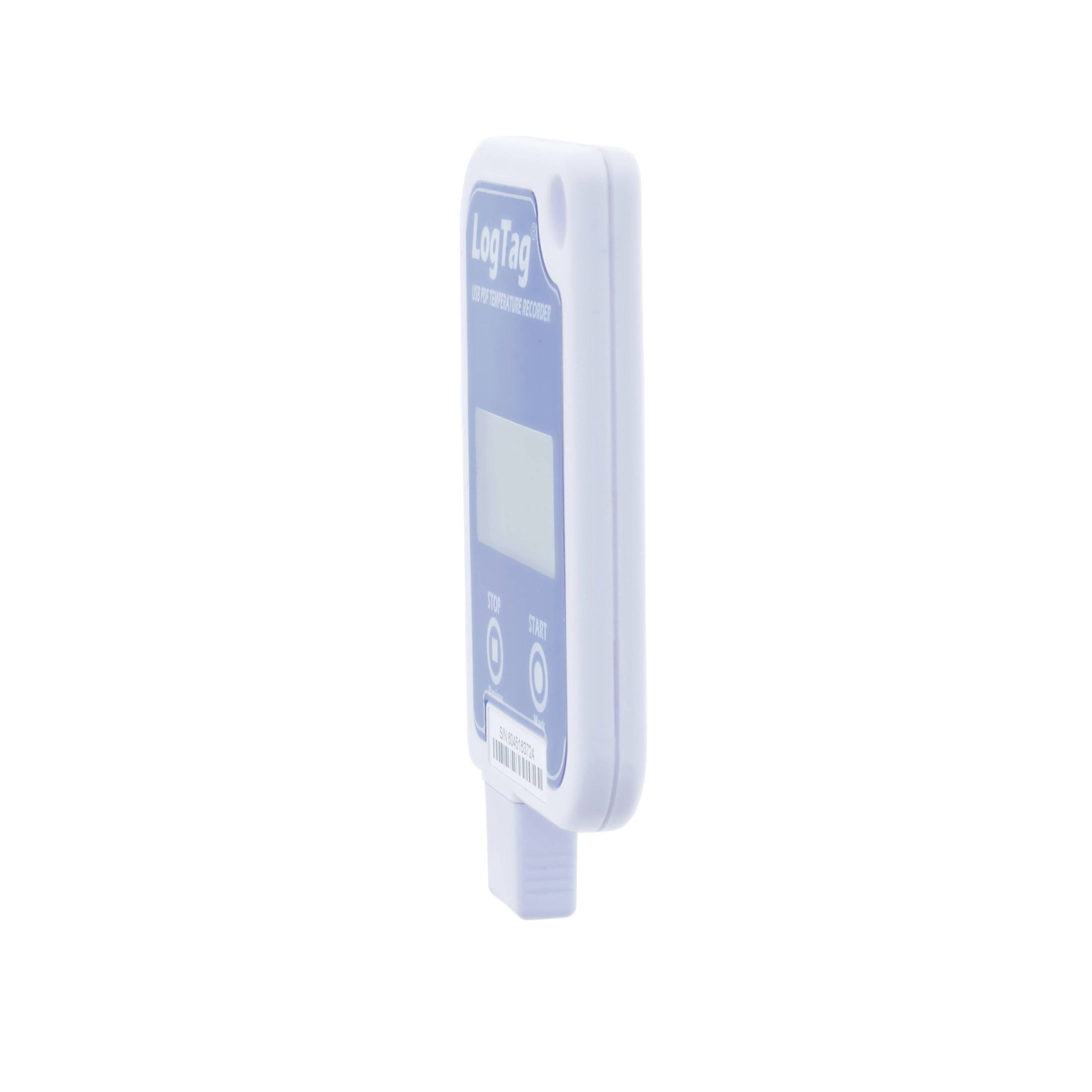

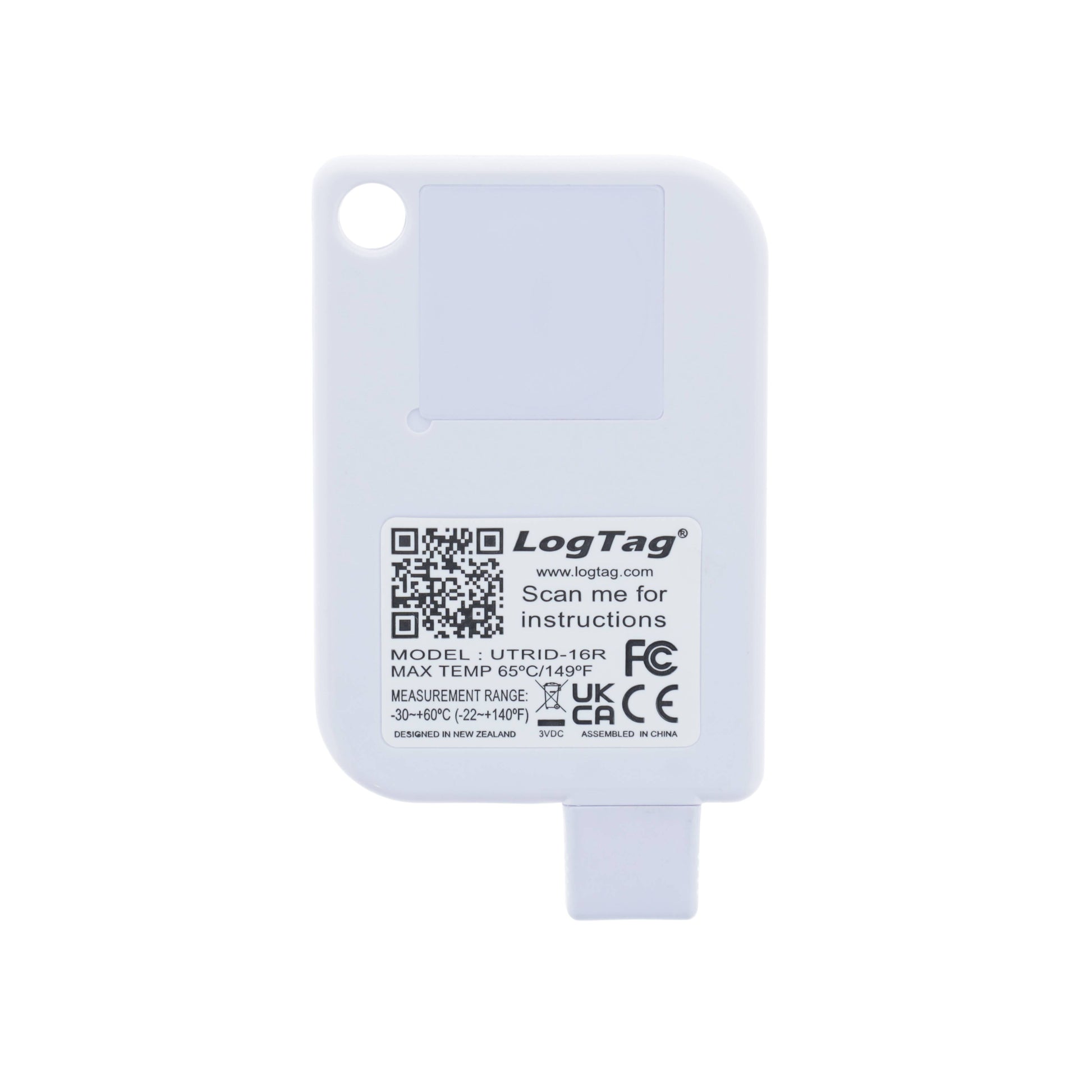

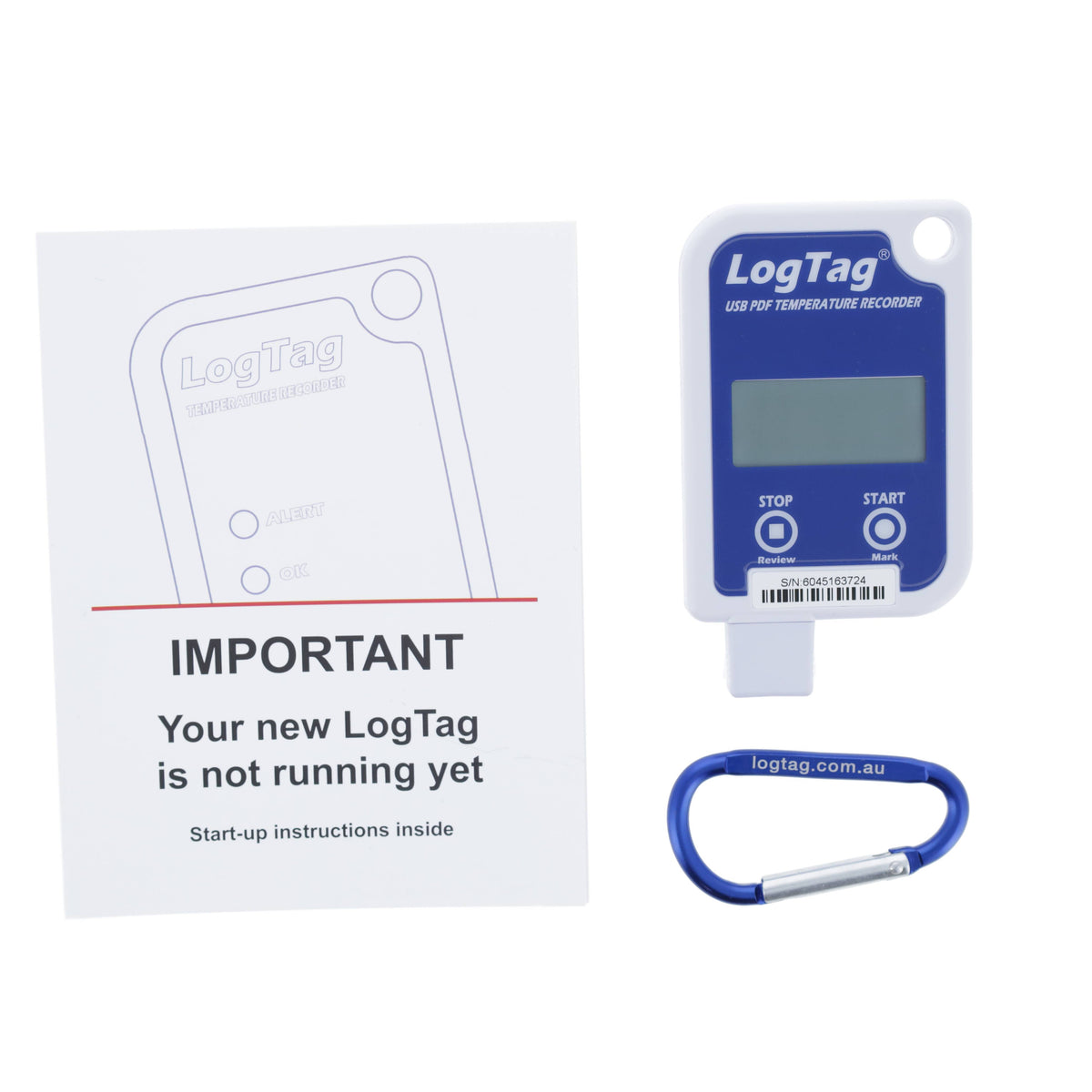

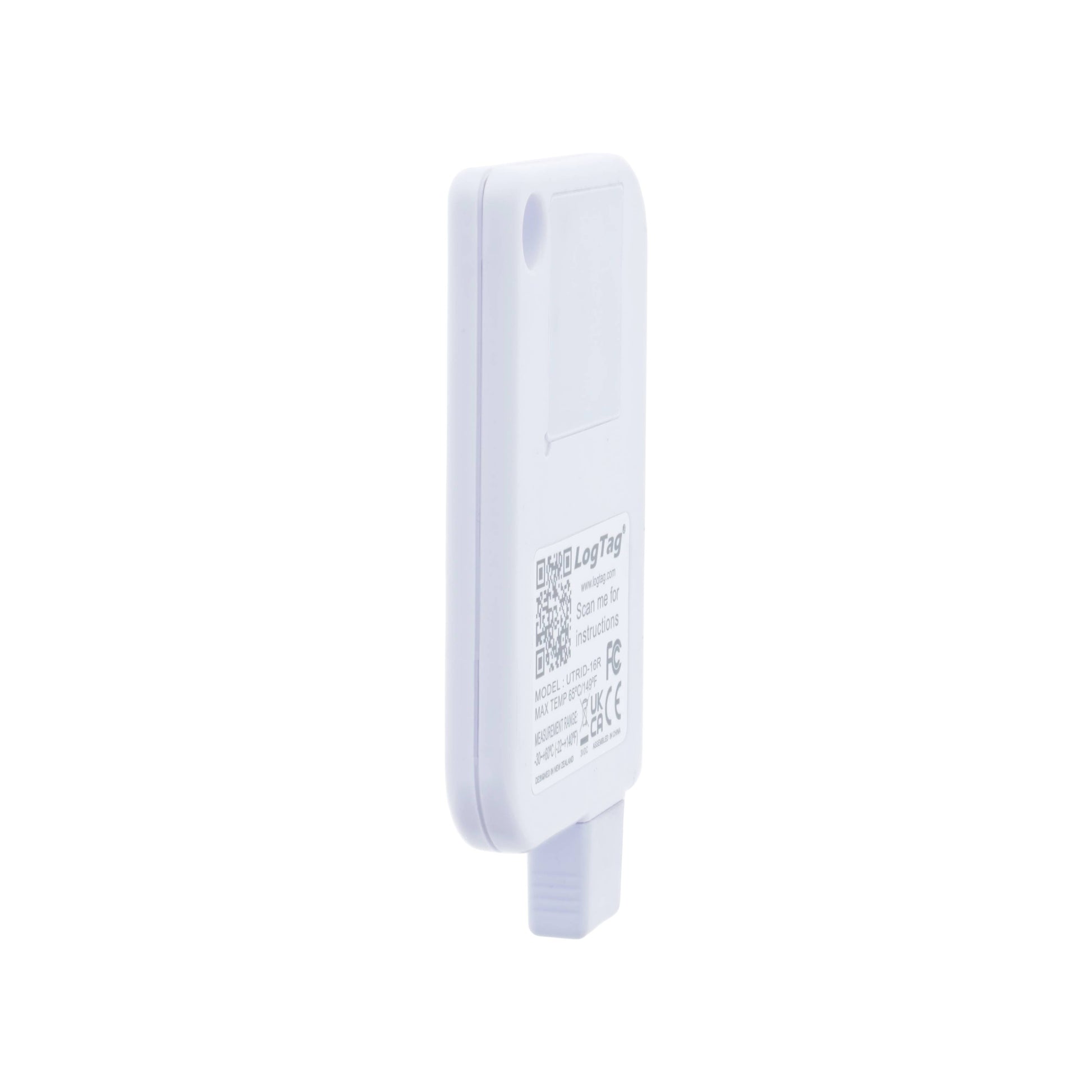

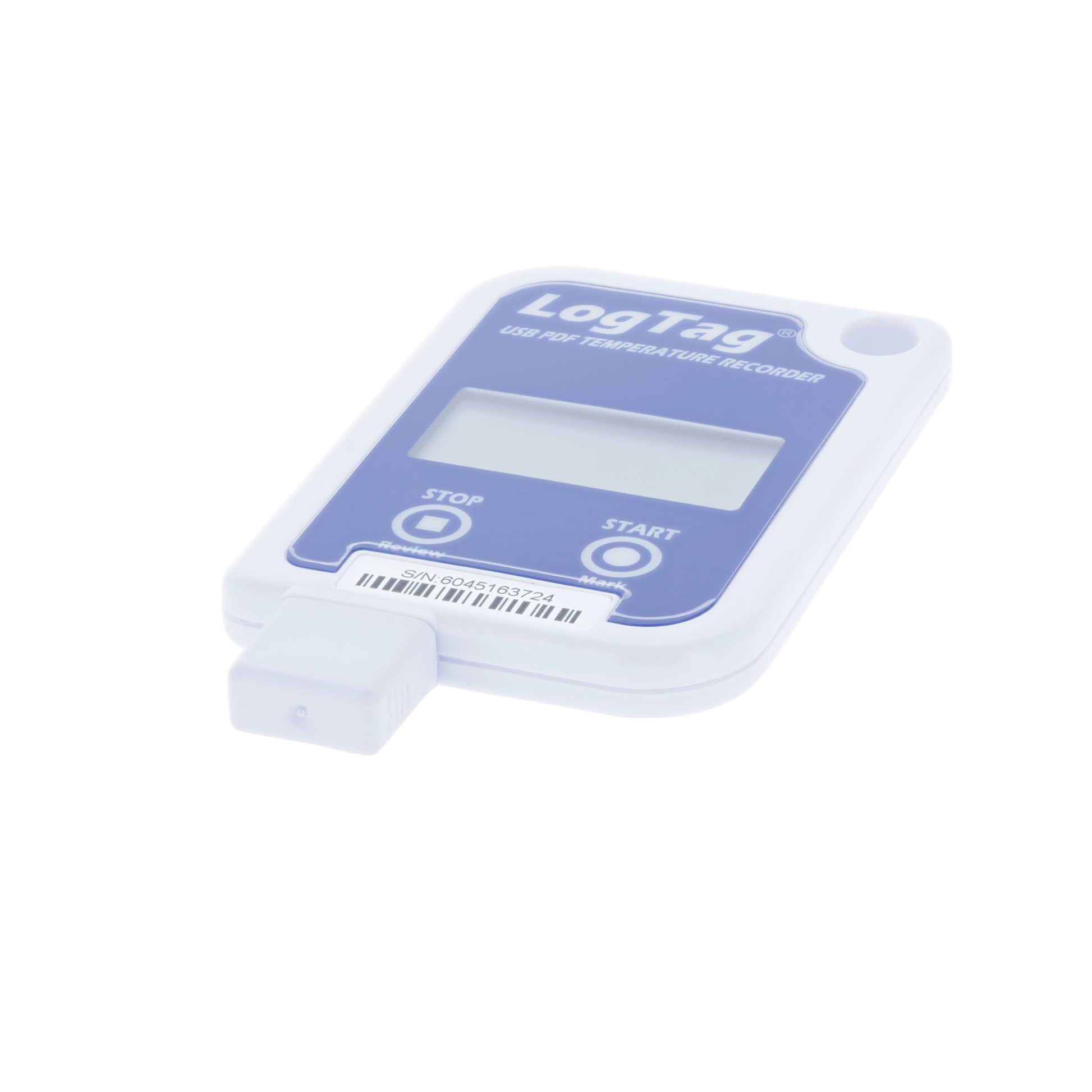

Premium LogTag with built-in USB - IC-UTRID-16
Backorder Now, once ordered your item will dispatch before the 25th of April 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
$165.00 AUD Inc. GST
No extra Reader Interface required
- This USB model has all the features of the standard LogTag without the need to buy a LogTag Interface. This means that it is more cost effective if you only need one or two loggers. (If you are monitoring more than that then the standard LogTag is more cost effective.)
- You need to install a copy of the free LogTag Analyser software on your Windows PC to program the logger prior to use.

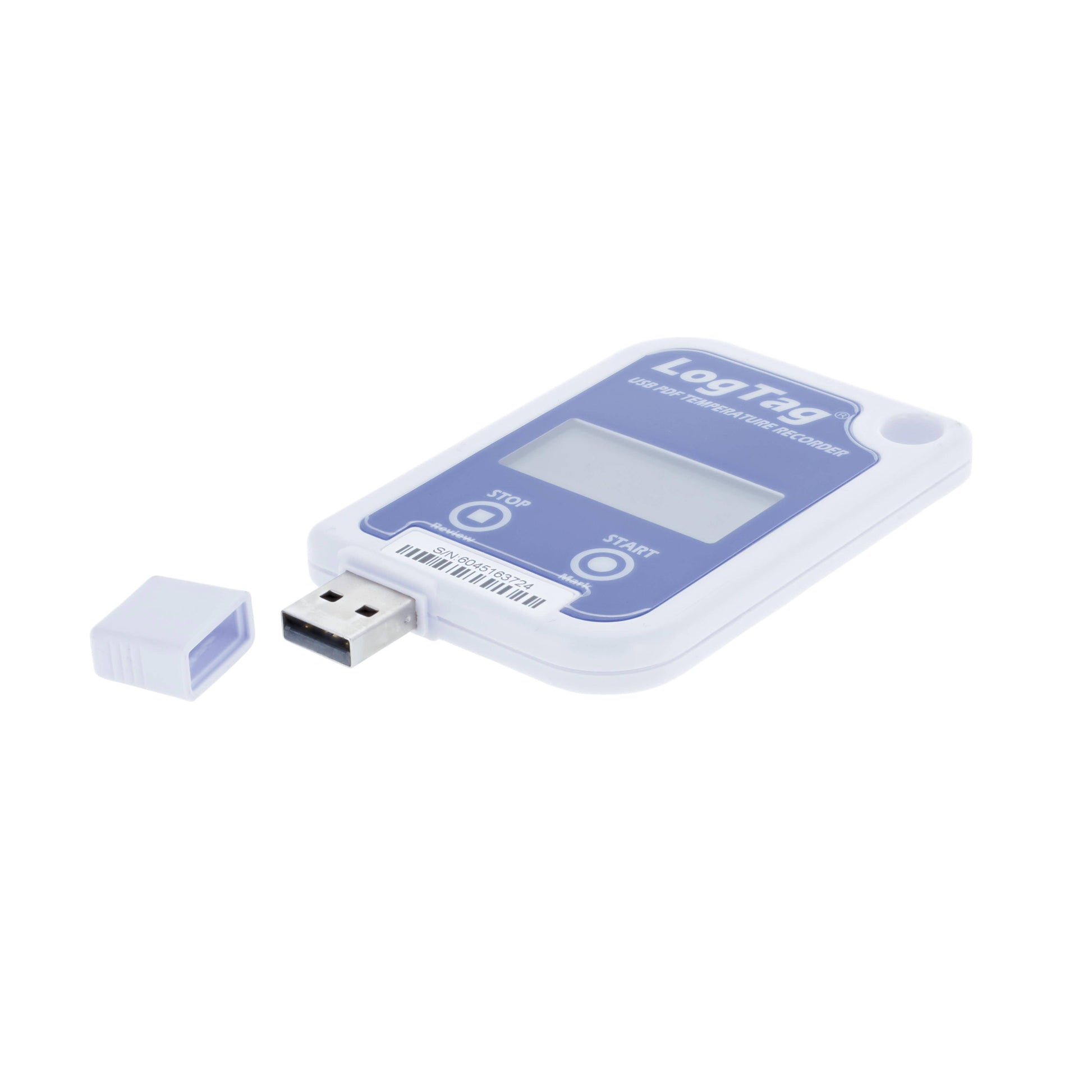

- To retrieve the data, you plug the LogTag directly into a USB port on your PC.
Automatic PDF of your report
- This USB LogTag has an extra party trick that other models don't. When you plug it into the USB port on your computer, it opens a folder similar to a USB memory stick. In that folder is a PDF copy of the data report.
- This means that data reports can be read on any computer using just a PDF reader such as Acrobat.
- The automatically generated PDF make this an ideal logger for tracking cold chain transport.
- Pack a USB LogTag with your goods and the receiver can plug it into any PC (no software needed) and download the report.
Other features
- Push Button Start: Configure the Tag to use Push Button Start and there is no rush about getting the Tag from the Reader to the refrigerator. Logging will not begin until the Start button is pushed.
- Visual Alerts: If the Tag logs temperatures outside the safe range you have set, the Alert LED will flash red, giving you a handy visual notification that there has been a problem.
- Easy to use: The LogTag is so simple to set up and use that you'll be an expert in no time. We have a full LogTag training program on our site
Specifications
- Product Model: UTRID-16
- Sensor Measurement Range: -30 to 60 C (-22 to 140 F)
- Operating Temperature Range: -30 to +60 C (-22 to 140 F)
- Storage Temperature Range: 0 to +40 C (32 to 104 F)
- Rated Temperature Reading Accuracy: Better than +/- 0.5 C (+/- 0.9 F) for -20 to 40 C (-4 to 104 F). Better than +/- 0.7 C (+/- 1.3 F) for -25 to -20 C (-13 to -4 F) and 40 to 60 C (104 to 140 F). Better than +/- 0.8 C (+/- 1.5 F) for 60 to 70 C (140 to 158 F). Actual performance is typically much better than the rated values.
- Rated Temperature Reading Resolution:0.1 C/F
- Sensor Reaction Time: Typically less than 7 minutes (T90) in moving air (1m/s) in EN12830:1999.
- Recording Capacity: 16,129 temperature readings. 56 days @ 5min logging, 168 days @ 15min logging.
- Sampling Interval: Configurable from 30 seconds to 18 hours.
- Logging Start Options: Push button start (with configurable start delay from 1 minute to 72 hours) or specific date & time.

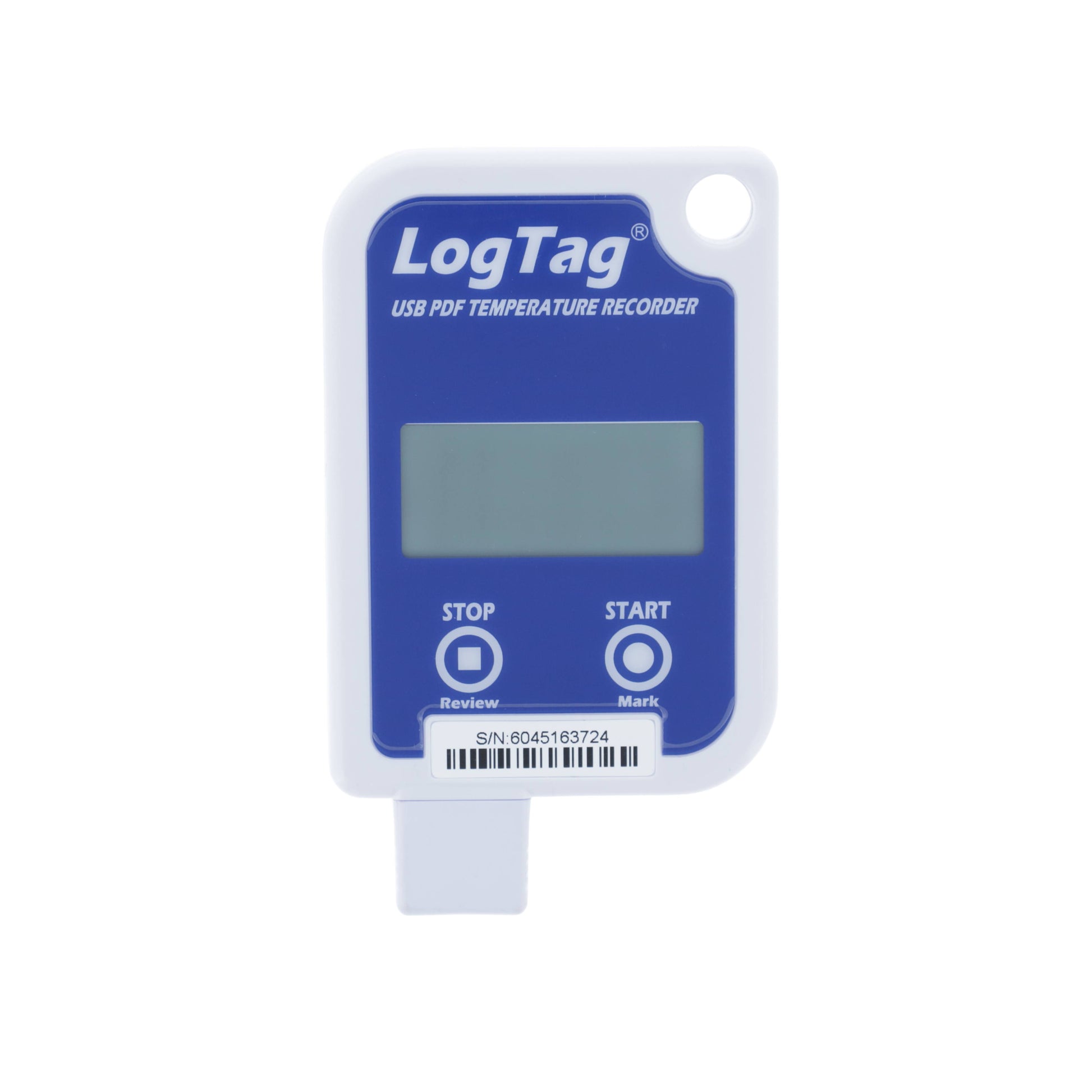

- Recording Indication: REC symbol on LCD
- Download Time: Typically with full memory (16,129 readings) in less than 30 seconds from time of insertion to availability of PDF report. Typically less than 10 seconds from time of insertion to availability of LTD file in LogTag Analyzer (if configured).
- Environmental: IEC 60529: IP64 with USB cap fitted.
- Power Source: CR2032 3V LiMnO2 Battery (Replaceable).
- Battery Life: 1 year storage, 1 year of normal use (based on 15 minute logging, download data monthly). The battery low symbol will appear on the LCD if the UTRID-16 has a low battery.
- Real Time Clock: Built-in real time clock. Rated accuracy 25ppm @ 25C (equivalent to 2.5 seconds/day). Rated temperature coefficient is -0.034 0.006ppm/C (I.e typically +/- 0.00294 seconds/day/C).
- Connection Interface: USB 2.0, A-type plug
- Software: PDF Reader, LogTag Analyzer 2.8 or higher
- Size: 93mm(H) x 54.5mm(W) x 8.6mm(T) including protective USB cap.
- Weight: 39g.
- Case Material: Polycarbonate.
