Adjustable Velocity Ultrasonic Wall Thickness Gaug - IC-TI-25PX
Backorder Now, once ordered your item will dispatch before the 12th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

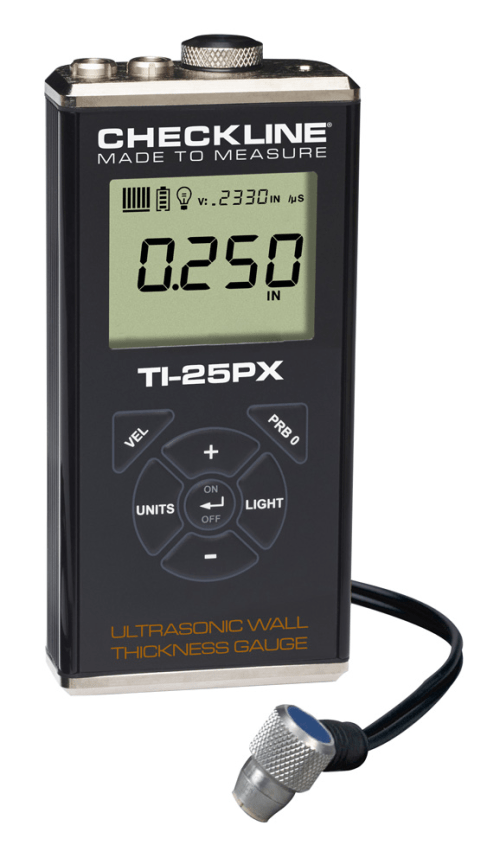

The Checkline TI-25PX Wall Thickness Gauge is designed for measuring wall thickness and the extent of corrosion on a wide range of materials. It is commonly used for checking the thickness of pipes, tanks, plates and other objects. It is designed and built to withstand harsh industrial conditions and is backed by a 5 year limited warranty.
Regular price
$2,529.60 AUD
+ GST
$2,782.56 AUD Inc. GST
$2,782.56 AUD Inc. GST
Please Note: Couplant gel required for use, not included, available for separate purchase and can be found
here.
Features:
- Includes NIST Traceable Calibration Certificate
- 5 Year Warranty, CE-Certified and Made in USA
- Resolution of 0.001 inch (0.01 mm)
- Switch-selected units for inches or mm
- Selectable Backlight ON/OFF/AUTO
- Acoustic Velocity (calibration) is manually adjusted via the keypad
- Special-purpose probes are offered for a variety of applications (1 to 10 MHz)
- The Transducer (probe) is waterproof and can be submerged in shallow water
- The extruded aluminum housing is impact-resistant and environmentally sealed (IP 65) to provide trouble-free operation under the toughest field conditions
- For underwater surveying, an optional 50 ft (15 meter) underwater probe/cable is available
- High visibility LCD Display is readable in all lighting conditions and temps as low as -30 C (22 F)
- LCD shows Thickness Value, Velocity Setting, Stability Indicator, Battery Indicator and units
- Operates on two (2) AA Batteries - 45 hours continuous operation
Specifications
- Total Measuring Range in Steel: 0.025-36.000" (0.63-914.40 mm), depending on material and transducer/probe type
- Measuring Range in Steel (with included standard transducer T-102-2000): 0.040-6.000" (1.00-150.00 mm)
- Resolution: 0.01 millimeter (0.001 inch)
- Measuring Mode: Pulse-Echo (P-E)
- Velocity Range: 0.0120 to .7300 in/us. 305 to 18,542 meters/sec
- Probe (Standard): 1/4", 5 MHz Dual Element Transducer, actual wearface is 5/8" (17mm), p/n T-102-2000
- Cable: 1.2m (4ft.) waterproof cable with non-polarized, quick-disconnect connectors
- Probes (optional): 1 to 10 MHz, 3/16" up to 1 inch (custom probes available)
- Probe Wearface: PEEK (Polyethylethylkytone)
- LCD Display: Multi-function 7 segment 4.5 digit liquid crystal display with 0.500" digit height. Two 0.125 in 14 segment fields for labels and values,
and one 7 segment field for labels and values. Additional icons to indicate features and modes
- Display Backlight: Backlight is selectable on/off/auto, and selectable brightness (Lo, Med, Hi) options
- Display Update Rate: 10 Hz (10 updates/sec)
- Temp. Limits (Ambient): -30 to 75 C (-22 to 167 F)
- Material: -20 to 100 C (0 to 200 F)
- Battery Type: 2x AA batteries (rechargeable batteries can be used)
- Battery Life: 45 hours continuous use
- Housing: Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed)
- Housing Rating: IP65
- Keypad: Sealed membrane that is resistant to both water and petroleum products, Seven or eight tactile-feedback keys
- Weight: 308 grams
- Pulse Repetition Frequency (PRF): 200 Hz (200 pulses/sec)
- Dimensions: 63.5 x 131.3 x 31.5 mm (2.5" x 5.17" x 1.25")
- Certifications: NIST Traceable and MIL-STD-45662A
- To Lock Settings: With gauge powered off, press and hold the "+" key while powering on the gauge, The LOCK icon will be illuminated on the Display
- To unLock Settings: With gauge powered off, press and hold the "-" key while powering on the gauge, The LOCK icon will turn off
Measuring limits:
- Minimum Radius for Convex Surfaces: 0.350" (8.89 mm)
- Minimum Radius for Concave Surfaces: 3" (76.2 mm)
- Minimum Headroom: 1" (25.0 mm)
- Minimum Sample Diameter: 0.150" (3.8 mm)
- Minimum Substrate Thickness - F: N/A
- Minimum Substrate Thickness - NFe: N/A
Warranty
- 5 Years Manufacturer Warranty + Additional 1 Year Instrument Choice Warranty
