Home > Prtemp1000 Data Logger With 0 - 30 Psig Range
Madgetech

Prtemp1000 Data Logger With 0 - 30 Psig Range

ORDER ME IN
Product code: PRTemp1000-30PSIG

Backorder Now, once ordered your item will dispatch before the 10th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

0 - 30 PSIG Pressure and Temperature Data Logger with 1/4" NPT Fitting and Stainless Steel Enclosure.

Read more

$1,821.65 AUD + GST
 $2,003.82 AUD Inc. GST

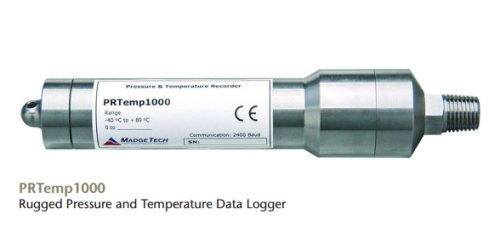

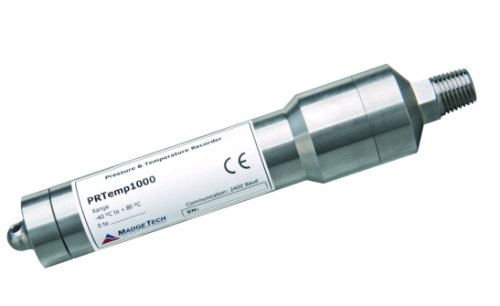

The PRTemp1000 is a rugged pressure recorder to accurately monitor and record pressure and temperature at user programmable reading intervals. The rugged stainless steel design allows for the device to be placed in harsh environments, which makes it well suited for use with air conditioning systems, chilled water, hot water, air, gas, oil and steam pressure systems.
The internal temperature sensor provides accurate temperature measurements without the needs for a separate temperature recorder. The logger can be started to take measurements as often as every two seconds, up to one reading every twelve hours. It will stor up tp 16,383 readings in its non-volatile memory.

The PRTemp1000 uses a rugged stainless steel pressure strain gauge to accurately measure the pressure. The device comes standard with a 1/4" NPT fitting, which allows the logger to be connected to almost any pressure adapter. The PRTemp1000 is also fully submersible.

The PRTemp1000-30PSIG comprises the 0 - 30 PSIG range.
Please see the related products category for models with other ranges.

Specifications

Temperature Sensor

Internal semiconductor

Temperature Range

-40 to 80C

Temperature Resolution

0.1C

Temperature Calibrated Accuracy

0.5C

Pressure Range

0 to 30, 100, 300, 500 PSIA/G; 1000 and 5000 PSIA - please see the different models in the related produtcs category.

Pressure Response Time

0.1ms (10 to 90% FSR)

Pressure Resolution

Pressure Calibrated Accuracy

2% FSR, 0.25% at 25C typical

Memory

16,383/channel

Reading Rate

2 seconds up to 12 hours

Material

303 stainless steel

Baud Rate

2,400

Battery Life

1 year

Operating Environment

-40~+80C, 0~100%RH

Submersible

Yes

Approvals

CE

Dimensions:
163 mm x 32 mm
Weight: 340 g


Specifications

Temperature Sensor

Internal semiconductor

Temperature Range

-40 to 80C

Temperature Resolution

0.1C

Temperature Calibrated Accuracy

0.5C

Pressure Range

0 to 30, 100, 300, 500 PSIA/G; 1000 and 5000 PSIA - please see the different models in the related produtcs category.

Pressure Response Time

0.1ms (10 to 90% FSR)

Pressure Resolution

See Specifications Sheet

Pressure Calibrated Accuracy

2% FSR, 0.25% at 25C typical

Memory

16,383/channel

Reading Rate

2 seconds up to 12 hours

Material

303 stainless steel

Baud Rate

2,400

Battery Life

1 year

Operating Environment

-40~+80C, 0~100%RH

Submersible

Yes

Approvals

CE

Dimensions:
50.8mm x 25.4mm dia
Weight: 85 g
