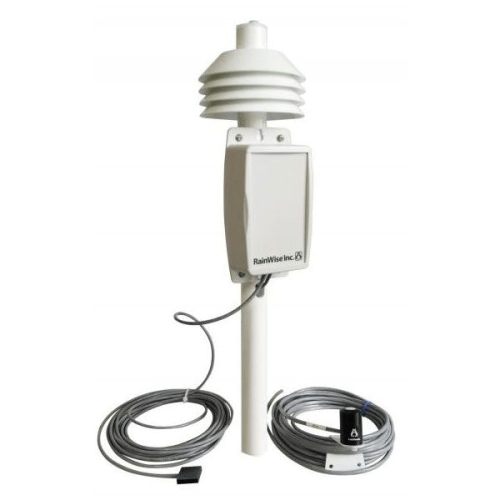

PVMet™ 75 Entry Level Weather Station

ORDER ME IN
Product code: 800-0275

Backorder Now, once ordered your item will dispatch before the 07th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

The PVmet 75 is an aggressively priced model, featuring RainWise’s own amplified silicon irradiance sensor and other sensors specific to PV power generation.

-Includes adjustable Irradiance sensor (Global or Plane-of-Array), panel temperature sensors and ambient air temperature sensor.

-Low-cost and easy to install; perfect for residential use.

Read more

$1,999.00 AUD + GST
 $2,198.90 AUD Inc. GST
The RainWise PVmet family of weather stations offers a powerful add-on to any solar plant monitoring system. Featuring accurate sensors and standard communication integration, the
PVmet is an economical addition to insure the highest PV panel output.
The PVmet-75 is an aggressively priced model, featuring RainWises own amplified silicon
irradiance sensor and other sensors specific to PV power generation. The PVmet-75 low cost
station is compact and simple to install. The price level makes it feasible for both residential and
commercial PV monitoring projects.
Features:
- Proprietary Irradiance sensor can be configured for either Global or Plane-ofArray monitoring
- 1 or 2 x Back-of-PV Panel Temp Sensor(s)
- Ambient Air Temperature Sensor
- Modbus RS-485 Communication
Sensors:
- Ambient Air Temperature: Housed in a passive solar shield.
- Global Irradiance or Plane-of-Array Irradiance: The RainWise irradiance sensor can be mounted on top of the PVmet-75 sensor assembly for Global mode, or it can be mounted to match the Photo Voltaic panel angle with the included bracket for Plane-Of-Array mode. The irradiance sensor comes with 25ft of cable for mounting options.
- Back-of-Module Temperature: These sensors are attached to the back of the PV panel using thermal conductive adhesive tape. They provide accurate panel temperatures, an important
parameter for efficiency monitoring. One sensor is shipped with each system. The PVmet-75 supports two sensors. The second may be purchased separately

Specifications

Irradiance Sensor:
- Sensor Range: 0 to 1750 W/m2
- Accuracy: +/-5%
- Cosine Response 45: +/-1%
- Cosine Response 75: +/-5%
- Operational Temperature: -25 to 55 C
- Resolution: 1 W/m
Ambient Air Temperature Sensor:
- Range: - 40 to 80 C
- Accuracy: +/- 0.3 C
- Thermal Time Constant 30 sec.
- Resolution: 0.1 C
Back of Module (BOM) Temperature Sensors:
- Range: - 40 to 80 C
- Accuracy: +/- 0.3 C
- Thermal Time Constant: 270 sec.
- Cable Length: 7.62m
- Resolution: 0.1 C
RS-485/422 Serial Port:
- Mode: 2-Wire Half Duplex
- Connector: 4-Position Screw Terminal ( A(-), B(+), Signal and Earth Ground)
- Max Speed: 9600 Baud
- Termination: 120 ohms (Internal Jumper Enable)
Materials:
- Polyvinyl Chloride, Acrylonitrile Butadiene Styrene, Stainless Steel, Anodized Aluminum, Lexan, Delri
Electronics:
- Lead-free RoHS Compliant
Physical:
- Packaged Dimensions: 58.42cm x 25.4cm x 20.32cm
- Packaged Weight: 2.26kg
Warranty:
- 2 Years
