Pyromini Miniature Infrared Temperature Sensor (Not suitable for human use)

ORDER ME IN
Product code: PM-MA-21-CT-CRT

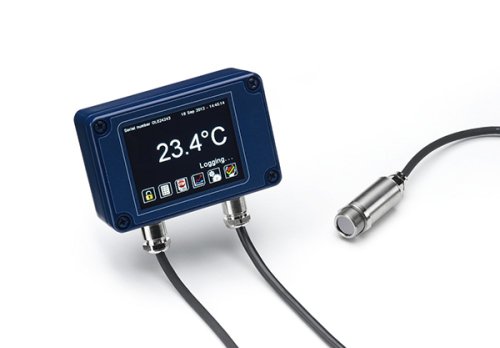

The Calex PyroMini is a Miniature Infrared Temperature Sensor with Touch Screen Interface, 4 to 20 mA or RS485 output and alarm relay outputs.

Read more

Note: This particular thermometer isnt suitable for human use, please see the following options for this application; https://www.instrumentchoice.com.au/instrument-choice/environment-meters/ir-thermometers/forehead-thermometers

PM-MA-21-CT-CRT Option

- MA Sensing head 0 to 60C
- 2:1 Field of view
- CT- Configurable temperature range between -20 to +1000C
- CRT 4 to 20mA output and two alarm relay outputs with touch screen and data logging (microSD card required for data logging)

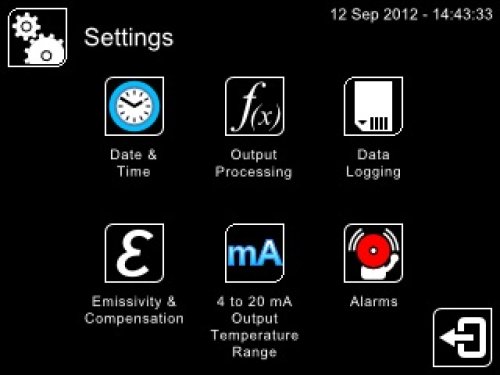

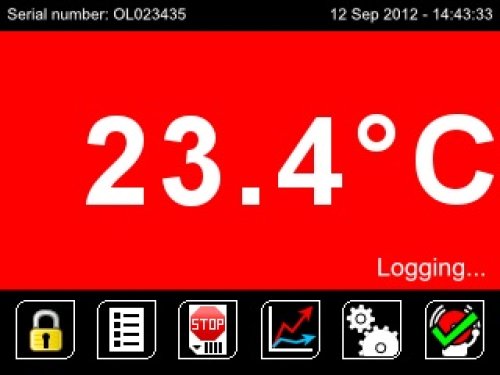

Touch Screen (-CRT and -BRT Models)

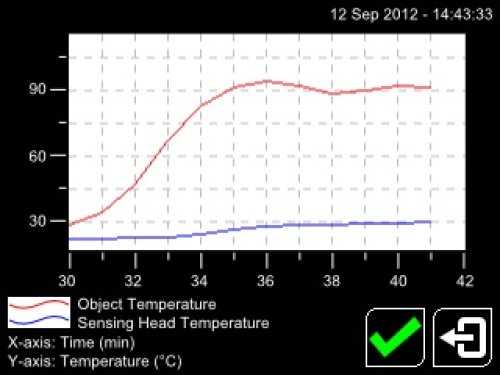

The optional backlit touch screen interface mounted in the lid of the electronics module provides a large, bright display of the measured temperature, as well as controls allowing full configuration of the sensor. The graph view shows the history of the measured temperature. In alarm conditions, the display changes colour to provide an immediate and obvious alarm indication. Alarm modes and levels can be configured via the touch screen.

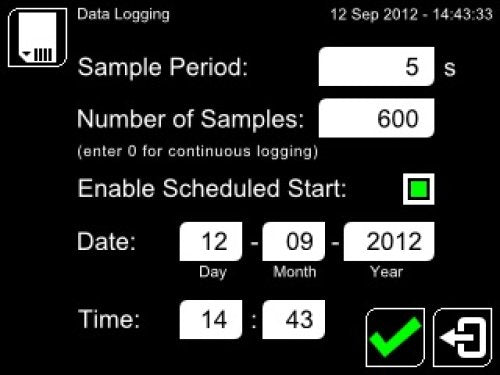

Data Logging (-CRT and -BRT Models)
The PyroMini can be used as a standalone data logger.
PyroMini models -CRT and -BRT include a MicroSD card slot for data logging, which can be configured via the touch screen interface. The user can select the sample rate and the number of samples to be taken and schedule the data logging to start at a certain time. With a 2 GB card, the user can store 28.4 million readings, which provides almost 1 years worth of data at the fastest possible sample rate of 1 per second. Data is stored on the MicroSD card in .csv format and can be viewed and edited easily using spreadsheet software. A MicroSD card with SD card adapter is available as an optional accessory. The MicroSD card slot and battery holder are located on the touch screen circuit board in the lid of the PyroMini. Readings are time and date stamped using the sensors internal clock. The clock is reset when the power is disconnected, or it will continue if the optional battery is fitted.

Specifications

and Datasheet
{module_literature,i,149966}
Select the model that suits you most (this model is the PM-MA-21-CT-CRT, call 1300 737 871 (NZ 0800 737 871) to discuss alternative options):
