Quantum Separate Sensor With Handheld Meter - IC-MQ-200
Backorder Now, once ordered your item will dispatch before the 10th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
Quantum Separate Sensor with Handheld Meter
Regular price
$1,071.00 AUD
+ GST
$1,178.10 AUD Inc. GST
$1,178.10 AUD Inc. GST

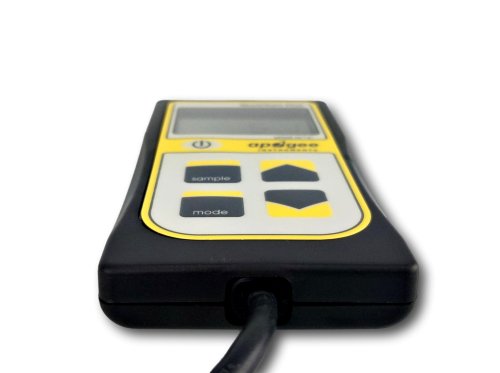

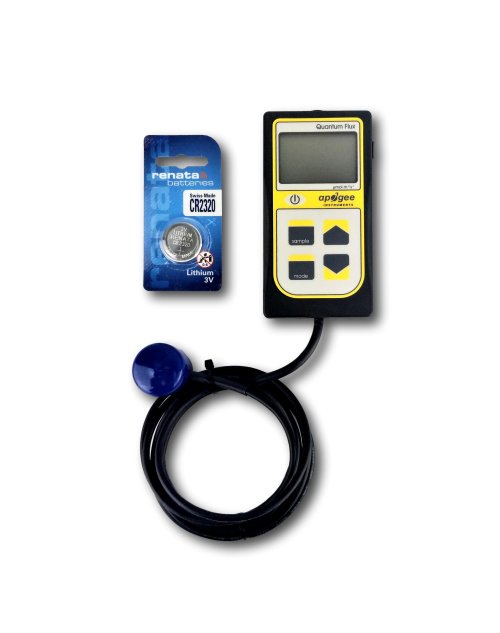

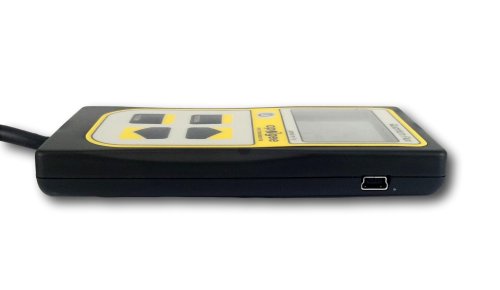

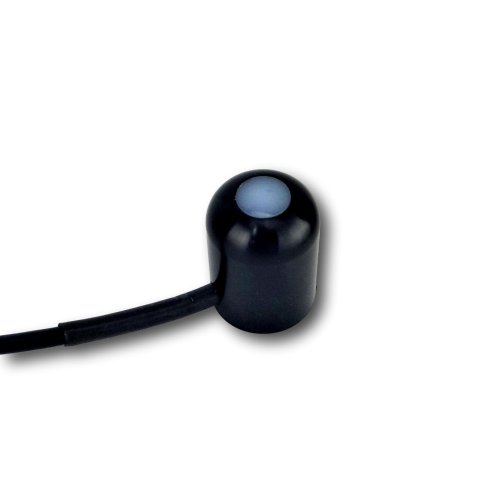

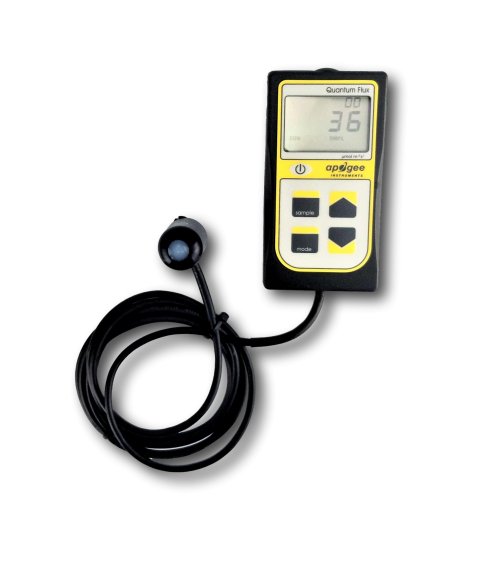

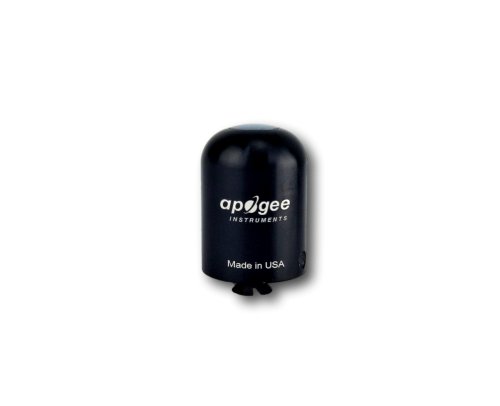

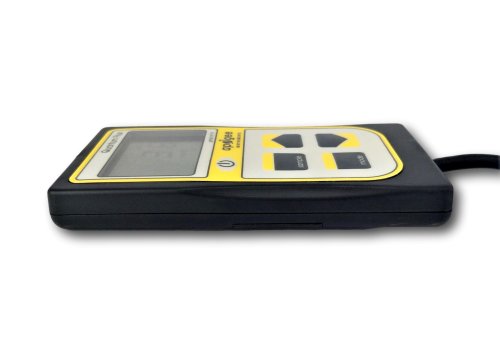

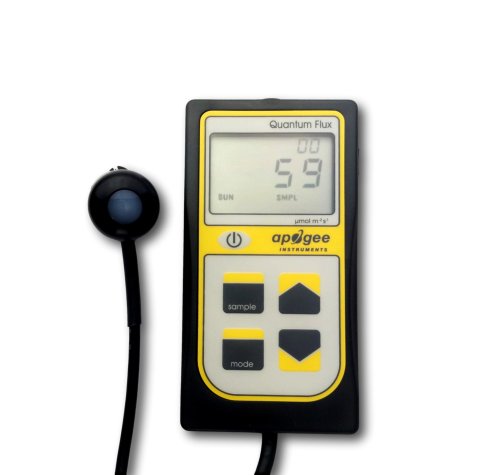

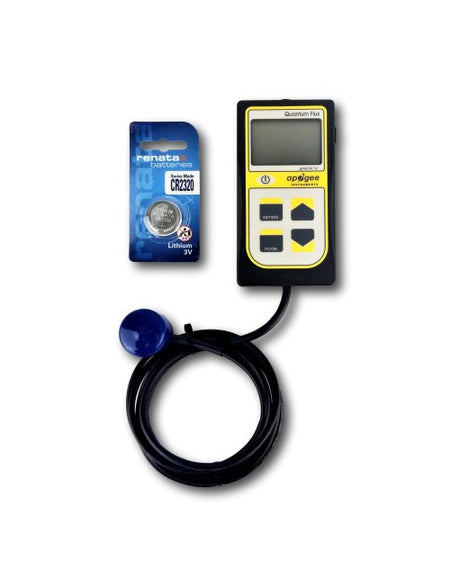

Apogee quantum sensors measure photosynthetically active radiation. The MQ-200 features a handheld meter to display and store measurements with a separate sensor head connected by a lead. The sensor head features a fully potted, domed-shaped design making it fully waterproof, weatherproof and self-cleaning.
The head can be held by hand, mounted to a leveling plate, or attached to an optional sensor wand for taking measurements in hard to reach places. Photosynthetically active radiation (PAR), or photosynthetic photon flux (PPF), is the spectral range (wave band) of solar radiation from 400 to 700 nanometers that photosynthetic organisms are able to use in the process of photosynthesis. Gardeners, greenhouse managers, growth chamber users and salt-water aquarists measure PAR to ensure optimal specimen health.
Specifications
- Calibration Uncertainty: 5 %
- Measurement Repeatability: < 1 %
- Non-stability (Long-term Drift): < 2 % per year
- Non-linearity: < 1 % (up to 3000 mol m-2 s-1 )
- Response Time: < 1 ms
- Field of View: 180
- Spectral Range: 410 nm to 655 nm (wavelengths where response is greater than 50 % of maximum)
- Directional (Cosine) Response: 0.06 0.06 % per C
- Temperature Response: 5 % at 75 zenith angle
- Operating Environment: 0 to 50 C, < 90 % non-condensing relative humidity up to 30 C, < 70 % non-condensing relative humidity from 30 to 50 C, Separate sensors can be submerged in water up to depths of 30 m
- Meter Dimensions: 12.6 cm length, 7.0 cm width, 2.4 cm height
- Sensor Dimensions: 2.4 cm diameter and 2.8 cm height
- Mass: 180 g
- Cable: 2 m of shielded, twisted-pair wire. Santoprene rubber jacket (high water resistance, high - UV stability, flexibility in cold conditions)
- Warranty: 4 years
