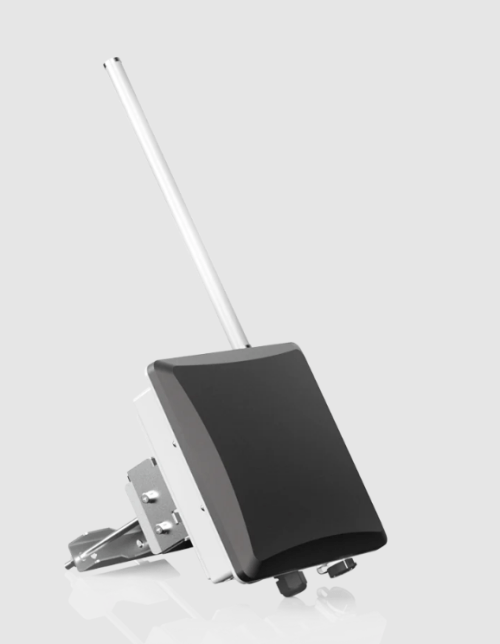

RAK7289V2 8-channel Outdoor LoRaWAN Gateway (AU915) - IC-717116
The RAK7289V2 WisGate Edge Pro version 2 s the RAK’s newest outdoor LoRaWAN gateway. This version has 8-channels, AU915 frequency; without lora antenna, without LTE.
Regular price
$642.00 AUD
+ GST
$706.20 AUD Inc. GST
$706.20 AUD Inc. GST
The RAK7289V2 WisGate Edge Pro version 2 s the RAKs newest outdoor LoRaWAN gateway. This version has 8-channels, AU915 frequency; without lora antenna, without LTE.
It is based on the latest SX1303 LoRa core, providing better sensitivity and improved performance. The gateway supports multi-backhaul with Ethernet, Wi-Fi, and Cellular connectivity. Optionally there is a dedicated port for different power options and full integration with RAK Battery Plus off-grid power solution. The gateways new enclosure design allows the LTE, Wi-Fi, and GPS antennas to be inside the enclosure.
The RAK7289V2 comes with the newest WisGateOS 2 which provides all the existing features but adds a new design, many options, and tooltips. It comes with extension add-ons an option to add and manage additional features catering to your need.
Supported LoRaWAN Network Servers:
ChirpStack v3, TTN/TTS, AWS IoT Core for LoRaWAN, AWS IoT core integration, Actility LNS with Basics Station
Features (Hardware):
- IP67/NEMA-6 industrial-grade enclosure with cable glands
- PoE (802.3af) + Surge Protection
- Dual LoRa Concentrators for up to 16 channels
- Backhaul: Wi-Fi, LTE and Ethernet
- GPS
- Supports DC 12V or Battery Plus off-grid system
- Internal antenna for Wi-Fi, GPS, and LTE, External antenna for LoRa
Features (Software):
- WisGateOS 2
- Extension add-ons
- Built-in Network Server
- LoRaWAN 1.0.3 (LoRaWAN 1.0.4 for the Built-in server is coming soon)
- Basics Station and Packet forwarder
- LoRa Frame filtering (node whitelisting)
- MQTT v3.1 Bridging with TLS encryption(compatible with ChirpStack LNS)
- Buffering of LoRa frames in Packet Forwarder mode in case of NS outage (no data loss)
Includes:
- 1pc Gateway
- 1pc Ethernet Cable Gland
- 1pc POE Injector
- 1pc Mounting Brackets
- 1set Screws
