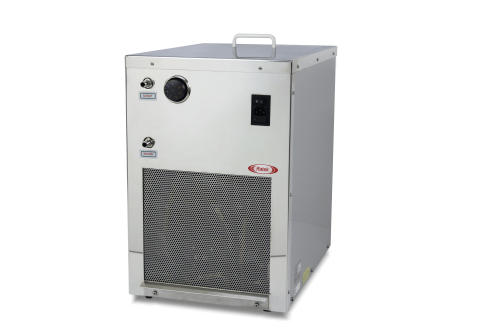

Recirculating Cooler with Tank - RC4
Backorder Now, once ordered your item will dispatch before the 24th of July 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
$7,875.12 AUD Inc. GST
The RC4 Refrigerated waterbath when used with an optional TH5 Thermoregulator will provide accurate temperature controlled water at or below ambient temperatures. The waterbath has a capacity of approximately 12 litres. A built in heavy duty recirculating pump provides closed loop circulation at the rate of 12 litres per minute, and can offer a reliable and preferable alternative to the use of mains water for cooling Heat exchangers, Electrophoresis baths,
Condensers, etc. To avoid accidental damage to the heat exchanger components the RC4 cooling is set to turn of at 4c, however it can be factory set
to have a minimum temperature of -10C if required. Suitable additives would need to be added to the water for the -10c version to avoid damage to the
system. Polished grade 304 stainless steel is used for the tank, and surround, and the main case is constructed from a heavy duty plastic. Heat exchanger
components are manufactured from copper. Only environmentally friendly R134a refrigerant is used in Ratek coolers.
Applications
Can be used in distillation and extraction systems, as well as for cooling laboratory apparatus and numerous other industrial applications.
Specifications
| Power requirements | 240 VAC/690 Watts | |
| Capacity | Internal dimensions l275 x w200 x d200 (12 litres including heat exchanger) | |
| Temperature range | -10 to ambient (using suitable additives) | |
| Compressor | - hp air cooled hermetic condensing unit | |
| Refrigerant | 134a | |
| Cooling capacity in watts | Average approx. 580 Watts between 30 C and 5 C | |
| Pump capacity | 11 litres per minute at zero head | |
| Overall dimensions | L480 x W340 x D510 | |
| Weight | 27kg |
