Respicon 2 TM - IC-Respicon 2 TM
Backorder Now, once ordered your item will dispatch before the 14th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

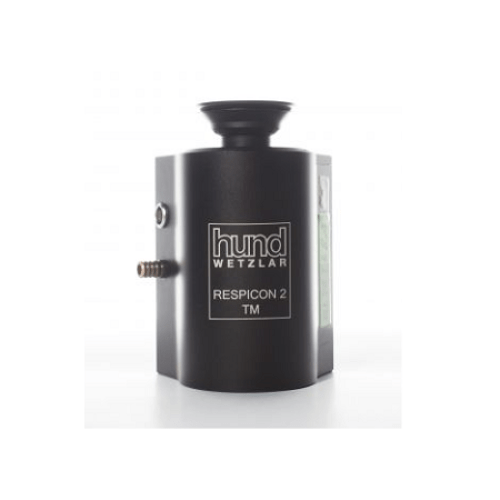

The Respicon 2 TM is a combined gravimetric-photometric dust monitor that has a lower measuring range compared to the Respicon TM (0-10 mg/m3) but has a higher sensitivity. Also appropriate for fine dust concentration monitoring in the work place.
Regular price
$17,697.00 AUD
+ GST
$19,466.70 AUD Inc. GST
$19,466.70 AUD Inc. GST
The Respicon 2 TM can be paired with the Hund DALO data logger for a more convenient operation via touchscreen. The DALA data logger also comes pre-installed with a data software that can analyze the data gathered from the Respicon TM for easier analysis of the samples gathered and the measured flow rate.
Requires Glass fibre filters and filter cartridge for use. Each sold separately.
Features:
• Simultaneous online measurement of all 3 relevant dust fractions: Inhalable dust, Thoracic dust, and Respirable dust.
• Simple calibration of the results
• Comfortable operation via touchscreen with the use of the DALO data logger (optional)
• Straightforward evaluation with PC software
Respicon TM Specifications:
• Collected dust fractions: Inhalable (< 100 μm), Thoracic (< 10 μm) and Respirable: (< 4 μm).
• Segregation principle: Two-stage virtual impaction
• Measurement range range [mg/m³] (DEHS particles, d = 1 μm): 0-10
• Sensitivity [mV/mg/m³]: 300
• Detection limit [μg/m³] (DEHS particles, d = 1 μm): approx. 30
• Filter modules: Filter cassettes for glass-fiber or membrane filters (37 mm diameter).
• Mounting thread: Whitworth thread W 1/4” in bottom stage
• Standards: EN481, ISO7708, ACGIH, AIHA, MAK, TRGS, test report acc. to prEN 13205 for Respicon TM
• Volume flow [l/min]: 6.22
• Pressure drop: 4 kPa
• Operation time [h] (as specified by manufacturer): > ca.24
Datalogger Specifications:
• Channels: 4, 1 available for additional sensors
• Interfaces: USB, Bluetooth
• Measurement interval [s]: 1 – 3.600, adjustable in 1-s steps
• Storage capacity: approx. 6 full days of measurement (@ 1 s measurement interval), max. 9 full measurement days (longer measurement intervals)
• Operation modes: Respicon TM/data logger
• Battery mode: Li-ion battery, charging time approx. 6 h
• Power supply: USB power supply and charger
• Operation time [h] approx. 8
• Display: 3.2” touchscreen, resistive
• Accessories: evaluation software, DALO carrying case, transport case
• Simultaneous online measurement of all 3 relevant dust fractions: Inhalable dust, Thoracic dust, and Respirable dust.
• Simple calibration of the results
• Comfortable operation via touchscreen with the use of the DALO data logger (optional)
• Straightforward evaluation with PC software
Respicon TM Specifications:
• Collected dust fractions: Inhalable (< 100 μm), Thoracic (< 10 μm) and Respirable: (< 4 μm).
• Segregation principle: Two-stage virtual impaction
• Measurement range range [mg/m³] (DEHS particles, d = 1 μm): 0-10
• Sensitivity [mV/mg/m³]: 300
• Detection limit [μg/m³] (DEHS particles, d = 1 μm): approx. 30
• Filter modules: Filter cassettes for glass-fiber or membrane filters (37 mm diameter).
• Mounting thread: Whitworth thread W 1/4” in bottom stage
• Standards: EN481, ISO7708, ACGIH, AIHA, MAK, TRGS, test report acc. to prEN 13205 for Respicon TM
• Volume flow [l/min]: 6.22
• Pressure drop: 4 kPa
• Operation time [h] (as specified by manufacturer): > ca.24
Datalogger Specifications:
• Channels: 4, 1 available for additional sensors
• Interfaces: USB, Bluetooth
• Measurement interval [s]: 1 – 3.600, adjustable in 1-s steps
• Storage capacity: approx. 6 full days of measurement (@ 1 s measurement interval), max. 9 full measurement days (longer measurement intervals)
• Operation modes: Respicon TM/data logger
• Battery mode: Li-ion battery, charging time approx. 6 h
• Power supply: USB power supply and charger
• Operation time [h] approx. 8
• Display: 3.2” touchscreen, resistive
• Accessories: evaluation software, DALO carrying case, transport case
