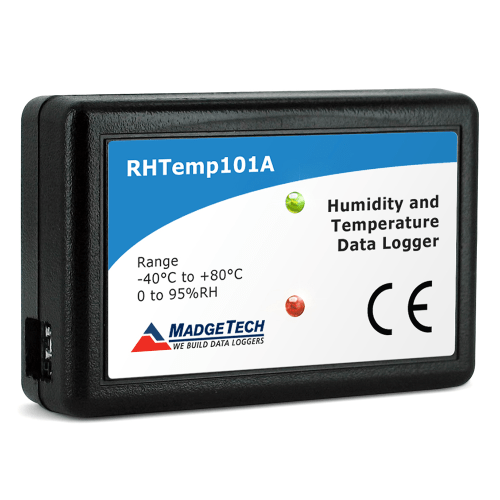

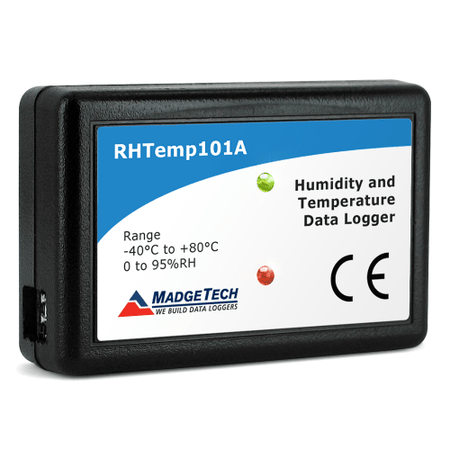

Humidity And Temperature Data Logger
Backorder Now, once ordered your item will dispatch before the 25th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
$560.18 AUD Inc. GST
The RHTemp101A offers a 10 year battery life, a 1 second reading rate, a multiple start/stop function, ultra-high speed download capability, 500,000 reading storage capacity, optional memory wrap, battery life indicator, optional password protection, programmable high-low humidity alarms and more.
Using the MadgeTech Software, starting, stopping and downloading from the RHTemp101A is simple and easy. Graphical, tabular and summary data is provided for analysis and data can be viewed in C, F, K,R, %RH, mg/ml water vapor concentration and dew point. The data can also be automatically exported to Excel for further calculations.
As the leader in low power data logger technology, MadgeTech continuously improves its products and develops solutions to meet ever-changing challenges. The RHTemp101A was designed with our customers in mind. MadgeTech offers free firmware upgrades for the life of the product so that data loggers already deployed in the field can grow with the technology. Units do not need to be returned to the factory for upgrades. The user can do this automatically from any PC.
Specifications
Temperature
|
Temperature Sensor |
Precision RTD Element
|
|---|---|
|
Temperature Range |
-40C to +80C (-40F to +176F)
|
|
Temperature Resolution |
0.01C (0.018F)
|
|
Temperature Calibrated Accuracy |
0.5C (0.9F)
|
Humidity
|
Humidity Sensor |
Internal semiconductor
|
|---|---|
|
Humidity Range |
0~95% RH
|
|
Humidity Resolution |
0.1% RH
|
|
Humidity Calibrated Accuracy |
3.0%RH (2%RH typical at 25C/77F)
|
|
RH Units |
%RH, dew pt., water vapor, concentration (mg/hl)
|
General
|
Memory |
500,000 readings; software configurable memory wrap
250,000 readings in multiple start/stop mode |
|---|---|
|
Reading Rate |
1 reading every second to 1 reading every 24 hours
|
|
Alarm |
Yes, Temperature
|
|
Baud Rate |
115,200
|
|
LED Indicators |
Red & Green
|
|
Push-Button Start |
Yes
|
|
Battery Life |
10 years typical at a 15 minute reading rate
|
|
Material |
ABS plastic
|
|
Dimensions |
1.4" x 2.2" x 0.6" (36mm x 56mm x 16mm)
|
|
Operating Environment |
-40C~+80C (-40F to +176F), 0~95%RH non-condensing
|
|
Required Interface Package |
IFC200
|
|
Approvals |
CE
|
|
Weight |
0.0563 LBS
|
