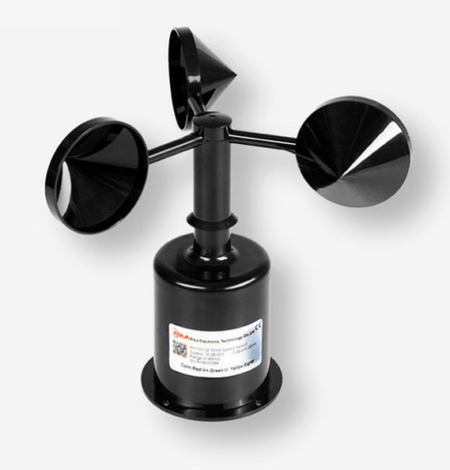

The RK100-02 wind speed sensor uses a sensitive 3-cup anemometer designed to measure wind speed and wind run. The cups are made of carbon fiber material, with high intensity and low starting threshold. The signal processing units are built-in the housing shell. It can be used in meteorology, marine, environmental monitoring, airport, harbors, laboratories and agricultural areas.
Features:
- Low starting threshold
- Overall carbon fiber material
- Strong corrosion resistant ability
- Light structure
- Various output signals optional
- Easy Installation
Specifications
- Range: 0 to 45m/s
- Accuracy: +/- (0.3+0.03V)m/s; (V is the current wind speed)
- Supply voltage: 5V,12V-24V
- Staring Threshold: <0.5m/s
- Limit Wind Speed: 50m/s
- Ingress Protection: IP55
- Operating Temperature: -40 C to +50 C
- Weight(unpacked): 170g
- Dimension: Cup rotor: 179 mm, Height: 160 mm
- Main material: Carbon fiber
- Storage Condition: 10 C to 50 C at 20%-90%RH
