RK100-02 ABS Wind Speed Sensor (0-5V)
Backorder Now, once ordered your item will dispatch before the 10th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

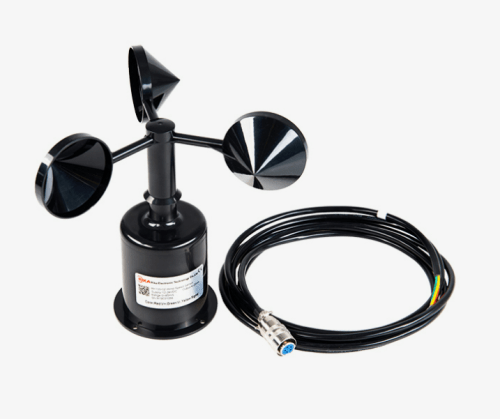

The RK100-02 wind speed sensor has a test range of 0-45m/s. Cable length: 3 meters. Cups made from carbon fiber. Pulse signal output.
Regular price
$99.90 AUD
+ GST
$109.89 AUD Inc. GST
$109.89 AUD Inc. GST

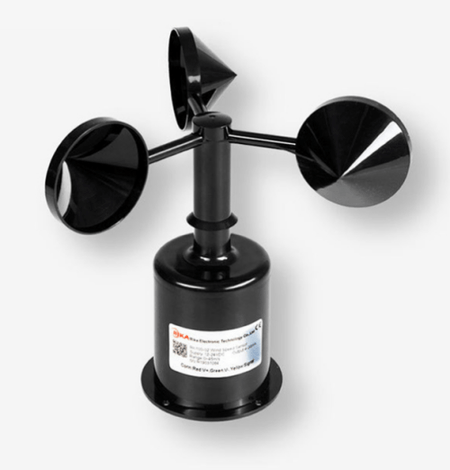

The RK100-02 wind speed sensor uses a sensitive 3-cup anemometer designed to measure wind speed and wind run. The cups are made of carbon fiber material, with high intensity and low starting threshold. The signal processing units are built-in the housing shell. It can be used in meteorology, marine, environmental monitoring, airport, harbors, laboratories and agricultural areas.
Features:
- Low starting threshold
- Light structure
- Various output signals optional
- Easy Installation
Specifications
- Range: 0 to 45m/s
- Accuracy: +/- (0.3+0.03V)m/s; (V is the current wind speed)
- Supply voltage: 5V,12V-24V
- Staring Threshold: <0.5m/s
- Limit Wind Speed: 50m/s
- Ingress Protection: IP55
- Operating Temperature: -40 C to +50 C
- Weight(unpacked): 170g
- Dimension: Cup rotor: 179 mm, Height: 160 mm
- Main material: Carbon fiber
- Storage Condition: 10 C to 50 C at 20%-90%RH
