RTD-210 Surface Roughness Gauge

ORDER ME IN
Product code: IC-RTD-210

Backorder Now, once ordered your item will dispatch before the 29th of April 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

The RTD-210 uses a highly sensitive, diamond tipped stylus that accurately traces the surface, measuring the vertical deviations from the centre line. The separate stylus drive unit is attached on a 1mt long fly-lead to allow roughness measurement of both inside and outside bores on small diameter pipe or tube, stepped gears, o-ring grooves and recessed notches.

Read more

$2,399.40 AUD + GST
 $2,639.34 AUD Inc. GST

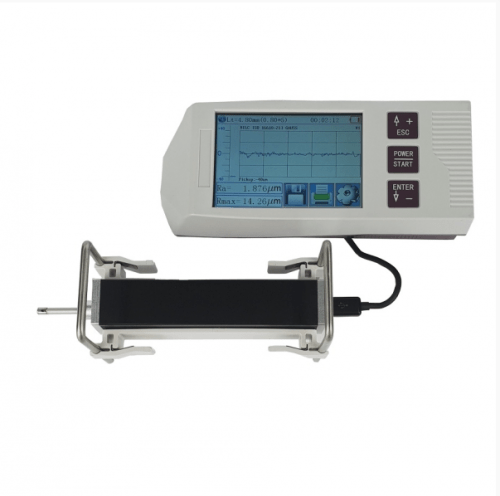

The new RTD-210 by Starr Instruments is an advanced surface roughness tester that provides the user with comprehensive testing capabilities. It is designed to allow testing on almost any surface, including difficult to access samples.

The separate stylus drive unit is attached on a 1mt long fly-lead to allow roughness measurement of both inside and outside bores on small diameter pipe or tube, stepped gears, o-ring grooves and recessed notches.
The RTD-210 uses a highly sensitive, diamond tipped stylus that accurately traces the surface, measuring the vertical deviations from the centre line. It is able to display the results in many parameters including Ra, Rz, Rq, Rt, Rp, Rv, Rsk, Rmr to name a few. The results are clearly shown on the high resolution, colour touch-screen LCD; including the waveform trace of the surface. Results can be saved to the 100 record internal memory and managed with software or downloaded via Bluetooth to the free App.
Features:
- 3.5" Full colour graphic LCD Touch Screen
- USB communication and charging
- Wide measuring range ?160?m
- 22 Advanced roughness parameters
- High accuracy inductive, diamond stylus/pick up
- Separate stylus drive unit and fly lead for increased accessibility.
- Adjustable height stand to fine adjust stylus positioning for precise measurement
- Standard kit includes the main display processor unit, stylus and motor drive unit, height adjustable stand, touchscreen stylus, USB cable and mains charger, calibration certificate, Ra calibration specimen and specimen holder.

Specifications

- Maximum Travel: 20mm
- Indicating Error: Less than or equal to 10%
- Accuracy: better than +/- 6%
- Measured Profile: Roughness, Waviness, Contour
- Parameter: Ra, Rq (0.005 um to 30 um) Rz, R3z, Ry, Rt, Rp, Rm (0.02 um to 320 um)
- Other parameters: Rq, Rt, Rp, Rv, R3z, R3y, Rz(JIS), Rs, Rsk, Rsm, Rku, Rmr, Ry(JIS), RMax, RPc, Rk, Rpk, Rvk, Mr1, Mr2
- Filter: RC, PC-RC, Gauss, D-P
- Sampling Length "L": 0.25mm, 0.8mm or 2.5mm
- Stylus Force: 4mN (0.4gf)
- Stylus Tip: Diamond, 90 degrees, 5 umR
