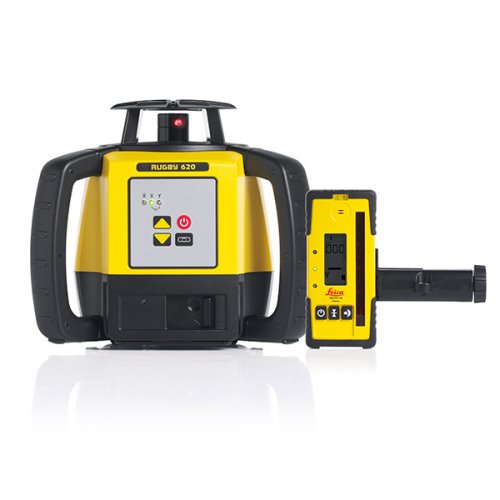

Rugby 620 with Rod Eye 160 Digital Receiver - ICLG6005985
Backorder Now, once ordered your item will dispatch before the 12th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
Rugby 620 with Rod Eye 160 Digital Receiver. Includes: carry case, Digital Receiver and bracket, alkaline batteries, instructions.
Regular price
$1,600.00 AUD
+ GST
$1,760.00 AUD Inc. GST
$1,760.00 AUD Inc. GST
Leica Rugby lasers are the toughest rotating lasers suitable for all construction applications. Level, align and square much quicker than ever before, eliminating costly errors and downtime.
Leica Rugby 620 rotating laser - Simple and reliable no mistakes possible
- Concrete forming, pad placement and framework levelling; setting foundations and footings has never been more efficient
- Slope matching up to 8% in single axis
- Concrete forming, pad placement and framework levelling; setting foundations and footings has never been more efficient
- Slope matching up to 8% in single axis
Kit comes with Rugby 620 with Rod Eye 160 Digital Receiver. Includes: carry case, Digital Receiver and bracket, alkaline batteries, instructions.
| Technical data | Leica Rugby 610 | Leica Rugby 620 | Leica Rugby 640 | ||
| Dimensions | 212 239 192 mm | ||||
| Weight | 2.38 kg / 5.2 lbs | 2.56 kg / 5.6 lbs | 2.56 kg / 5.6 lbs | ||
| Functionality | Self-levelling horizontal, one button laser |
Self-levelling horizontal & manual slope in one axis |
Self-levelling horizontal, vertical, 90 and manual slope in dual axis |
||
| Product type | General construction | General construction | Multipurpose / H.V. | ||
| Laser class | Class 2 | ||||
| Laser type | 635 nm (visible) | ||||
| Plumb up | - | - | Yes | ||
| Measured at 20C (horizontal / vertical) |
2.2 mm at 30 m (3/32" at 100 ft) |
1.5 mm at 30 m (1/16" at 100 ft) | |||
| Grade range | - | - | - | ||
| Smart Slope | - | - | - | ||
| Rotation RPS | 10 | 10 | 0, 2, 5, 10 | ||
| Scanning degrees | - | - | 10, 45, 90 | ||
| Scan90 | - | - | Yes | ||
| Beam down | - | - | Yes | ||
| Sleep mode | - | - | Yes | ||
| Range (diameter) Basic | 500 m (1.650 ft) | 600 m (2.000 ft) | 500 m (1.650 ft) | ||
| Range (diameter) RE140/160 | 600 m (2.000 ft) | 800 m (2.600 ft) | 600 m (2.000 ft) | ||
| RF remote control (diameter) | - | - | 200 m (650 ft) | ||
| Li-Ion batt. / hours operation | 40+ | 40+ | 40+ | ||
| Alkaline batt. / hours operation | 60+ | 60+ | 60+ | ||
| Working temperature range | 10 to +50 C (14 to +122 F) |
20 to +50 C (4 to +122 F) |
20 to +50 C (4 to +122 F) |
||
| Storage temperature range | 20 to +70 C (4 to +158 F) |
40 to +70 C (40 to +158 F) |
40 to +70 C (40 to +158 F) |
||
| Seal (both excluding and including battery pack) |
IP67 | IP67 | IP67 | ||
| Warranty | 3 years no cost (see PROTECT by Leica Geosystems policy for life time coverage) | ||||
