Rugby 680 with Rod Eye 160 Digital Receiver - ICLG6006009
Unfortunately, the LG6006009 has been discontinued, check out our other Survey Equipment for more options.
Rugby 680 with Rod Eye 160 Digital Receiver. Includes: carry case, Rod-eye 160 and bracket, alkaline batteries, instructions.
Unfortunately, the LG6006009 has been discontinued, check out our other
Survey Equipment for more options.
Leica Rugby lasers are the toughest rotating lasers suitable for all construction applications. Level, align and square much quicker than ever before, eliminating costly errors and downtime.
- Dial-in grade in single or dual axis, easy and fast at the touch of a button
- The unique Smart Slope function continuously monitors time and temperature changes to ensure accurate performance over the course of the day

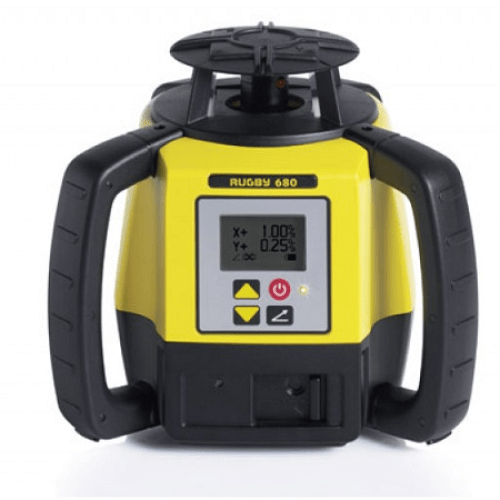

Leica Rugby 680 rotating laser - Slopes done easy
- A great general construction laser with digital grade capability- Dial-in grade in single or dual axis, easy and fast at the touch of a button
- The unique Smart Slope function continuously monitors time and temperature changes to ensure accurate performance over the course of the day

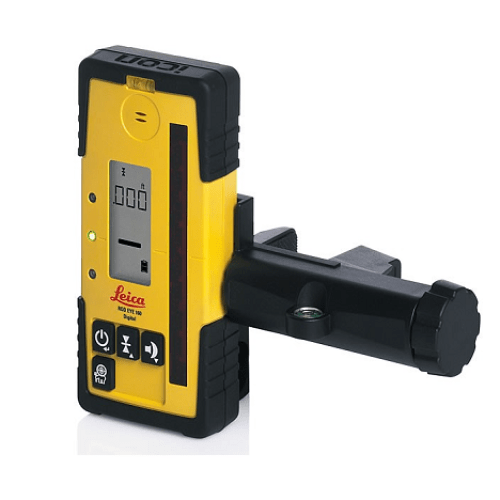

Kit comes with Rugby 680 with Rod Eye 160 Digital Receiver. Includes: carry case, Rod-eye 160 and bracket, alkaline batteries, instructions.
| Technical data | Leica Rugby 670 | Leica Rugby 680 |
| Dimensions | 212 239 192 mm | |
| Weight | 2.56 kg / 5.6 lbs | 2.56 kg / 5.6 lbs |
| Functionality | Self-levelling
horizontal, dial-in grade in single axis |
Self-levelling
horizontal, dial-in grade in dual axis |
| Product type | Semi-auto grade | Semi-auto grade |
| Laser class | Class 2 | |
| Laser type | 635 nm (visible) | |
| Plumb up | - | - |
| Measured at 20C
(horizontal / vertical) |
1.5 mm at 30 m (1/16" at 100 ft) | |
| Grade range | 8% SG | 8% DG |
| Smart Slope | Yes | Yes |
| Rotation RPS | 10 | 10 |
| Scanning degrees | - | - |
| Scan90 | - | - |
| Beam down | - | - |
| Sleep mode | - | - |
| Range (diameter) Basic | 600 m (2.000 ft) | 600 m (2.000 ft) |
| Range (diameter) RE140/160 | 800 m (2.600 ft) | 800 m (2.600 ft) |
| RF remote control (diameter) | - | - |
| Li-Ion batt. / hours operation | 40+ | 40+ |
| Alkaline batt. / hours operation | 60+ | 60+ |
| Working temperature range | 10 to +50 C
(14 to +122 F) |
20 to +50 C
(4 to +122 F) |
| Storage temperature range | 40 to +70 C
(40 to +158 F) |
40 to +70 C
(40 to +158 F) |
| Seal (both excluding and
including battery pack) |
IP67 | IP67 |
| Warranty | 3 years no cost (see PROTECT by Leica Geosystems policy for life time coverage) | |
