RX3000 4-Channel Analogue Module - RXMOD-A1
Backorder Now, once ordered your item will dispatch before the 10th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

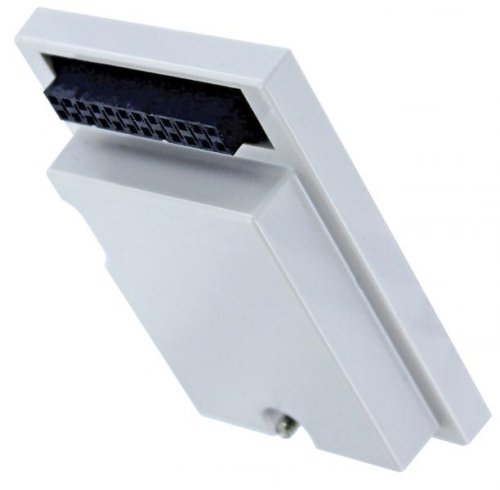

RX3000 4-Channel Analogue Module
Regular price
$322.00 AUD
+ GST
$354.20 AUD Inc. GST
$354.20 AUD Inc. GST
The optional analog module has four analog inputs that support excitation power, scaling, and statistics measurements. These four, single-ended sensor inputs are configured through HOBOlink. A HOBO RX3000 is required for this product.
Some features include:
15-bit resolution and high accuracy
Each module can have its own logging rate
Input ranges up to 33V
Environment:
The RXMOD-A1 Accessory is for use in Indoor and Outdoor environments
Measurements:
The RXMOD-A1 Accessory supports the following measurements:
4-20mA, Air Velocity, Carbon Dioxide, Compressed Air Flow, DC Current, DC Voltage
Important: This product requires an RX3000 Remote Monitoring Station
Input Channels - Four, single-ended, in addition to smart sensor data channels
Measurement Range and Accuracy
025.6 mA DC, 5 A 0.15% of reading
02.5 V DC, 0.25 mV 0.2% of reading
05 V DC, 0.25 mV 0.2% of reading
010 V DC, 0.3 mV 0.2% of reading
020 V DC, 0.6 mV 0.2% of reading
033 V DC, 1.20 mV 0.2% of reading
Resolution - 15 bits

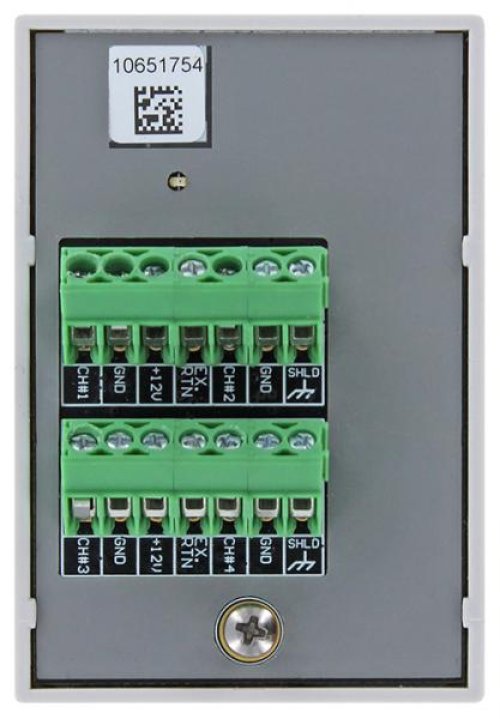

Field Wiring - Two- or three-wire via screw terminals, 1624 AWG
Minimum/Maximum Input Voltage - 0/33 V DC
Minimum/Maximum Input Current - 0/25.6 mA
Minimum Source Impedance for Current Measurement - 20 K?
Excitation Voltage - 12 V DC 5% at 200 mA maximum per module
Some features include:
15-bit resolution and high accuracy
Each module can have its own logging rate
Input ranges up to 33V
Environment:
The RXMOD-A1 Accessory is for use in Indoor and Outdoor environments
Measurements:
The RXMOD-A1 Accessory supports the following measurements:
4-20mA, Air Velocity, Carbon Dioxide, Compressed Air Flow, DC Current, DC Voltage
Important: This product requires an RX3000 Remote Monitoring Station
Specifications
Input Channels - Four, single-ended, in addition to smart sensor data channels
Measurement Range and Accuracy
025.6 mA DC, 5 A 0.15% of reading
02.5 V DC, 0.25 mV 0.2% of reading
05 V DC, 0.25 mV 0.2% of reading
010 V DC, 0.3 mV 0.2% of reading
020 V DC, 0.6 mV 0.2% of reading
033 V DC, 1.20 mV 0.2% of reading
Resolution - 15 bits
Field Wiring - Two- or three-wire via screw terminals, 1624 AWG
Minimum/Maximum Input Voltage - 0/33 V DC
Minimum/Maximum Input Current - 0/25.6 mA
Minimum Source Impedance for Current Measurement - 20 K?
Excitation Voltage - 12 V DC 5% at 200 mA maximum per module
