Sigfox Precision Fuel Level Sensor (RC1)

DISCONTINUED
Product code: WSSFC-CAP10-8-1500

For a personalised quote, add to cart. Then in the checkout choose create a quote.

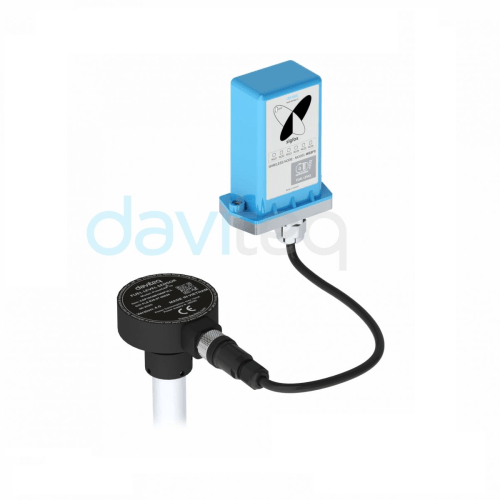

The WSSFC-CAP10-8-1500 is a plug-and-play, Sigfox fuel level sensor that delivers highly accurate and stable measurements with with 0.1% of span. Compatible with diesel, bio-diesel, vegetable oil, or any low viscosity non-conductive liquids.

-Compatible with RC1 zone.

-Can run for up to 2-5 years with 15 minutes updates.

-With IP67 protection.

Read more

Specifications

Sensor specifications:
- Measurement Range (mm) Standard Range: 1500
- Accuracy / Resolution / Repeatability: +/- 0.1% of Span / 0.1% / +/- 0.1% of span
- Thermal drift: less than +0.03% of span per 10oC
- Connector: M12 male, 4-pin, Coding A
- Sensor: MTBF More than 10 years
- Sensor wetted materials: Aluminum and engineering plastic
- Operating Temperature Range: -40 to 85 C
- Operating Humidity Range: 0 to 100% RH
- Sensor rating: IP67, outdoor
- Certification: CE-Marking per EN61236-1 (with test report)
- Standard accessories: Filter footer, flange, gasket, o-ring, self-tapping screws
Sigfox specifications:
- Sigfox zone(s): RC1
- Antenna: Internal Antenna 2 dbi
- Configuration: via Downlink or offline USB cable (PC software is supplied at free)
- Battery: 2x AA Type 1.5VDC
- RF Module: complies to CE, FCC, ARIB
- Working temperature: -40 to 60 C (using Energizer Lithium Ultimate AA battery)
- Dimensions and Net-weight (HxWxD): 140 x 73 x 42, 250 grams (Sigfox Device only)
- Housing: Polycarbonate, IP67
- Mounting: Wall mount bracket
- Sensor cable: 2m sensor cable with M12-male connector
