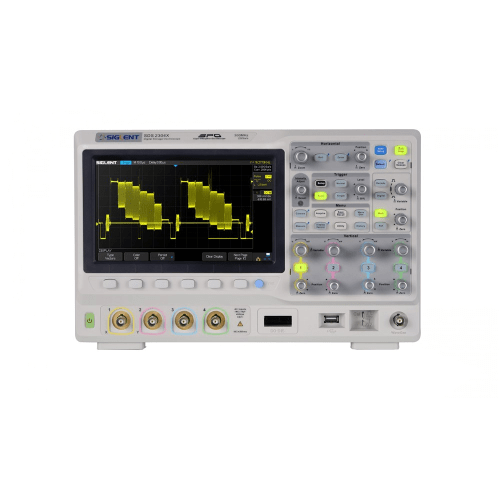

Siglent SDS2304X 300 MHZ, 4 Channel 2 GSA/S Digital Oscilloscope

ORDER ME IN
Product code: IC-SDS2304X

Backorder Now, once ordered your item will dispatch before the 10th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

The SDS2304X employs a new generation of SPO technology and has 200 MHZ bandwith. It has an innovative digital trigger system with high sensitivity and low jitter, and a maximum waveform capture rate of 140,000 wfm/s (normal mode), up to 500,000 wfm/s (sequence mode). It also employs the common 256-level intensity grading display function but also a color temperature display mode.

Read more

$3,700.00 AUD + GST
 $4,070.00 AUD Inc. GST

The SDS2304X employs a new generation of SPO technology and has 200 MHZ bandwith. It has an innovative digital trigger system with high sensitivity and low jitter, and a maximum waveform capture rate of 140,000 wfm/s (normal mode), up to 500,000 wfm/s (sequence mode). It also employs the common 256-level intensity grading display function but also a color temperature display mode. The trigger system supports multiple powerful triggering modes including serial bus triggering, History waveform recording and sequence acquisition allow for extended waveform records to be captured, stored, and analyzed. An impressive array of measurement and math capabilities, options for a built-in 25 MHz arbitrary waveform generator, 16 digital channels (MSO), as well as serial decoding are also features of the SDS2304X.

Features:

- 8 inch TFT-LCD Display and 10 One-button Menus
- 300 MHz Bandwidth
- 4 Channel
- Waveform Capture Rate up to 500,000 wfm/s
- Trigger Types: Edge, Slope, Pulse Width, Window, Runt, Interval, Dropout, Pattern, Video
- Serial Trigger: IIC, SPI, UART/RS232, CAN, LIN
- 7 inch TFT-LCD display and 10 one-button menus
- 1 M points FFT
- Sampling Rate: 2 GSa/s
- Serial Bus Decoding Function (Optional)
- Built-in 25MHz Function/Arbitrary Waveform Generator (Optional)

Specifications

- 16 Digital Channels (MSO Option): Maximum waveform capture rate up to 500 MSa/s, Record length up to 140 Mpts/CH
- Channels: 4 Channels + External
- Decoder Type (Option): IIC, SPI, UART/RS232, CAN, LIN
- Display: 8.0 inch color TFT-LCD,800(Horizontal)*480(Vertical) pixel
- I/O: USB Host, USB Device, LAN, Pass/Fail, Trigger Out, GPIB (Optional)
- IWaveform Capture Rate (Max.): 140,000 wfm/s (normal mode), 500,000 wfm/s (sequence mode)
- Language: Simplified Chinese, Traditional Chinese, English, French, Japanese, Korean, German, Russian, Italian, Portuguese
- Memory Depth (Max.): 140 Mpts (Single-Channel), 70 Mpts (Dual-Channel)
- Serial Trigger: IIC, SPI, UART/RS232, CAN, LIN
- Trigger Type: Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video
- Waveform Generator (Option): Single channel, Max. frequency up to 25MHz, 125MSa/s sampling rate, 16Kpts wave length

Warranty

- 1 Year Manufacturer Warranty + Additional 1 Year Instrument Choice Warranty
