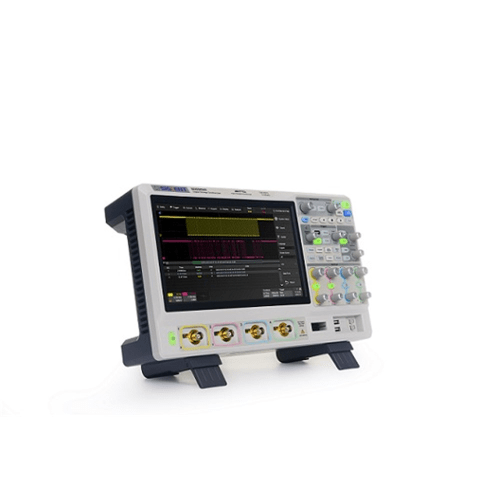

Siglent SDS5054X 500 MHZ; 4 Channels, 5 GSA/S 250 M Memory Depth

ORDER ME IN
Product code: IC-SDS5054X

Backorder Now, once ordered your item will dispatch before the 03rd of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

Siglent’s new SDS5000X series of digital storage oscilloscopes builds on the advancements learned with our SDS2000X scopes. These advancements include a faster architecture, touch-screen, mouse, and keyboard support, and a snappy user interface, all at a price that is about 1/2 that of similar products on the market. Popular and powerful features include both a 256-level intensity graded display as well as color-temperature display modes, 500 uV/div (BW is limited in this sensitivity position), Search & Navigate, and provisions for MSO (optional). The SDS5000X comes with Siglent’s most powerful Math capabilities to date.

Read more

$8,550.00 AUD + GST
 $9,405.00 AUD Inc. GST

Siglents new SDS5000X series of digital storage oscilloscopes builds on the advancements learned with our SDS2000X scopes. These advancements include a faster architecture, touch-screen, mouse, and keyboard support, and a snappy user interface, all at a price that is about 1/2 that of similar products on the market. Popular and powerful features include both a 256-level intensity graded display as well as color-temperature display modes, 500 uV/div (BW is limited in this sensitivity position), Search & Navigate, and provisions for MSO (optional). The SDS5000X comes with Siglents most powerful Math capabilities to date.

Features:

- 500 MHz
- 4 Channels
- Optional MSO
- Optional AWG
- Serial Decode Standard for I2C, SPI, UART, CAN, LIN
- Optional Serial Decode for CAN FD, Felx Ray, I2S, MIL-STD 1553B

Specifications

- Bandwidth: 500 MHz
- Interfaces: USB and LAN
- Maximum Sample Rate: 5 MSa/s (Interleaving mode, 2.5 GSa/s Non-Interleaving mode)
- Record Length: Up to 250 MPts
- Sensitivity: 500 uV/div (Below 2.45 mV/div the BW is limited to 200 MHz)
- Serial Triggering and Decode: I2C, SPI, UART, CAN, LIN standard (Optional: FlexRay, I2S, MIL-STD 1553B, CAN FD)
- Waveform Capture Rates: 110,000 wfm/s (normal mode) and 480,000 wfms/s (Sequence mode)

Warranty

- 1 Year Manufacturer Warranty + Additional 1 Year Instrument Choice Warranty
