Home > Single Logging Dosemeter Kit - IC-NK004B
Castle

Single Logging Dosemeter Kit - IC-NK004B

ORDER ME IN
Product code: IC-NK004B

Backorder Now, once ordered your item will dispatch before the 16th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

Measure personal noise levels with the Logging Dosemeter System. This kit consists of 1 logging dosemeters with calibrator and case. Ideal for checking worker's exposure to noise, downloading data to a PC and storing the results for future evaluation.

Read more

$3,299.20 AUD + GST
 $3,629.12 AUD Inc. GST

This system comprises of one industrial noise dosemeters for measuring Dose %, Projected Dose, Daily Exposure (Lepd) and True Peak in a single package. Ideal for large numbers of staff, making it easier and more cost-effective to initiate a wide ranging dosimetry programme. The GA257L logging dosemeter offers a full day's exposure data which can be downloaded to the dBdataPro noise software for further evaluation and storage.

Includes:

- 1x GA257L Personal Sound Exposure Meters
- GA601 Single Level Calibrator
- PC007 dBdataPro Noise Analysis Software and Cable
- KA007 5 Meter Kit Case

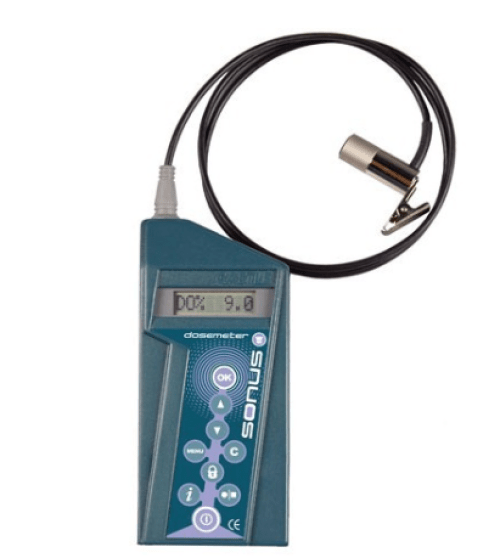

The SONUS Pocket Dosemeters are designed to be powerful and easy to use. These dosemeters are small and tough so measurements and data can be collected throughout the working period. Data can be reviewed on screen or downloaded to a PC for further analysis The SONUS GA257L which is also fully compliant with IEC 61252:1993 adds logging capabilities, allowing data to be downloaded to a PC using the Castle dBdataPro noise analysis software, and measures sound pressure levels and Leq.

Parameters measured:

- User selectable Exchange Rate (3dB, 4dB or 5dB)
- User selectable Criterion Level (75dB, 80dB, 85dB or 90dB)
- User selectable Threshold Level (-5dB, -10dB or OFF)
- Zpeak
- % Dose
- Lep'd (Lex)
- % DOHR (Dose/Hour)
- Pa2h (Lep'd expressed in Pascals)
- Exposure Time
- Lockable Keypad
- Constructed from tough crack resistance plastic

Specifications

- Standards: IEC61252-1993 (Personal Sound Exposure Meters)
- Linear Operating Range: 70dB
- Detector Characteristics: RMS and Peak
- Exchange Rate: 3dB, 4dB, 5 dB
- Criterion Level: 75dB, 80dB, 85dB, 90dB
- Threshold Level: -5dB, -10dB, OFF
- Peak: 3dB above top of selected range
- Display: Custom alphanumeric LCD, digit size 7mm x 5mm
- Memory: 2100 Data Intervals Maximum
- Calibration: 91.0 to 120.0dB at 1KHz
- Batteries: 1 x PP3 (9V) Approximately 12 hours continuous use
- Operating Temperature: -10 to + 50 C
- Humidity Effect: less than 0.5dB from 25% to 90% RH
- Vibration: No Effect on Instrument
- Processing: A to D Converter: 12-bit, 325kHz sampling. 8MHz, micro-controller
- Dimensions: 60mm (width) x 35mm (depth excluding pocket clip) x 135mm (height)
- Microphone Cable Length: 800mm (including rubber sleeve and microphone)
- Weight: 220g (including battery)
