Solar Radiation monitoring station - IC-SNiP-SRAD-A

ORDER ME IN
Product code: IC-SNiP-SRAD-A

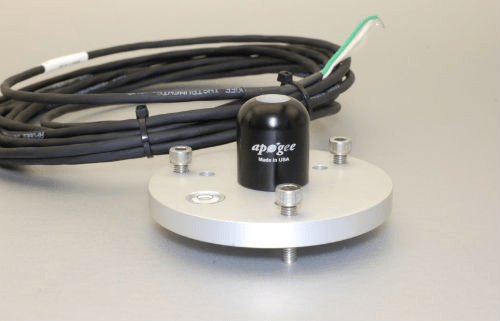

Solar Radiation monitoring station. Includes 1 x SP-212 Pyranometer with AL-120 mounting bracket and levelling plate, AD-NODE with LoRaWAN communications, 3x AA LiFeS2 batteries, node mounting bracket.

Read more

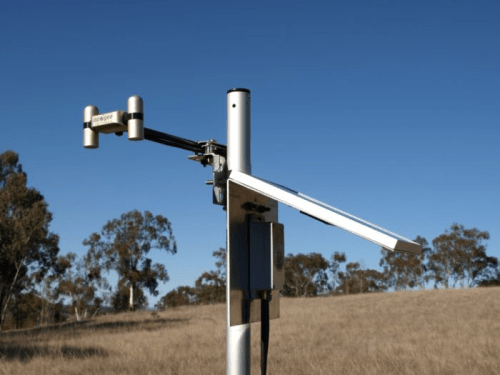

The SNiP-SRAD is a 'Sensor Node Integrated Package' for LoRa, LoRaWAN or FSK communication of real-time measurements of solar radiation, for continuous environmental monitoring.

The base SNiP-SRAD integrates 1x AD-NODE and 1x SP-212 Volt Pyranometer Sensor to a site's unique network, communication and power requirements.

AD-NODE: For High Resolution Analogue and Digital Sensors

The AD-NODE is designed for those requiring precision in their analogue and digital measurements. With a 24-bit ADC, the AD-NODE supports two RTDs, a 0 to 10V with compressing range and a 4 to 20mA input. Each of the four dry-contact digital inputs is capable of simultaneously sampling at 1 kHz, with periodic reporting. Settings on the device can be altered remotely via LoRaWAN or locally via USB.
Features

- LoRaWAN low-power long-range connectivity
- 2x 24-bit RTD
- 1x 24-bit Voltage input (0-10 V with compressing range)
- 1x 24-bit 4-20 mA
- 4x 32-bit dry-contact counting digital inputs, 2 x digital outputs
- 400 Hz 3-Axis Accelerometer
- 3 x AA Lithium Energizer battery
- Fully reconfigurable via LoRaWAN downlinks

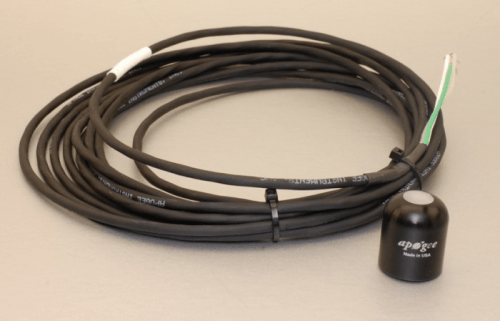

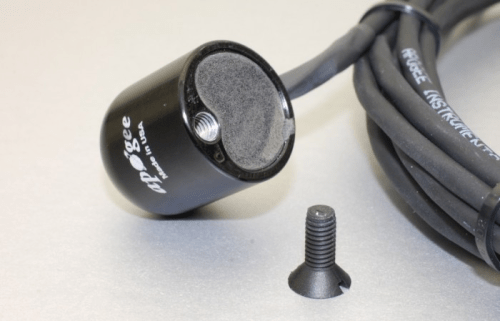

SP-212 Volt Pyranometer

The SP-212 is an amplified sensor with a 0-2.5 volt output and exhibits excellent cosine response. The SP-212 sensor can also be utilised in a custom IoT (Internet of Things). The SNiP-SRAD is a 'Sensor & Node Integrated Package' for LoRa, LoRaWAN, FSK, or GNSS (optional) communication of real-time solar radiation for continuous monitoring of plant light relations. The base SNiP-SRAD integrates 1x SP-212 Volt Pyranometer Sensor with an AD-NODE to a site's unique network, communication and power requirements.

Specifications

- ISO 9060:2018 Class C (previously known as second class)
- Power Supply: 3.3 to 24 V DC; current draw 10 uA
- Output (Sensitivity): 2 mV per watt per square metre
- Calibration Uncertainty: +/- 5 %
- Measurement Repeatability: Less than 1 %
- Long-term Drift: Less than 2 % per year
- Non-linearity: Less than 1 % up to 2000 watt per square metre
- Response Time: Less than 1 ms
- Field of View: 180 degrees
- Spectral Range: 360 to 1120 nm
- Directional (Cosine) Response: +/- 5 % at 75 zenith angle
- Temperature Response: 0.04 +/- 0.04 % per C
- Operating Environment: -40 to 70 C; 0 to 100 % relative humidity; can be submerged in water up to depths of 30 m
- Dimensions: 24 mm diameter, 33 mm height
