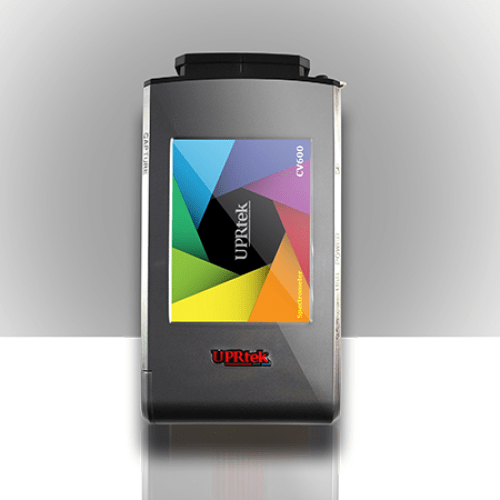

Spectral Color Meter - IC-CV600
Backorder Now, once ordered your item will dispatch before the 11th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
All purpose spectrometer and colorimeter for cinematographers, television production and video editors.
Regular price
$3,150.00 AUD
+ GST
$3,465.00 AUD Inc. GST
$3,465.00 AUD Inc. GST
Specifications
Spectrum:
- Sensor: CMOS Linear Image Sensor
- Wavelength Range: 380 to 780 nm
- Wavelength Data Increment: 1 nm
- Spectral Bandwidth: Approximately 12 nm (Half Bandwidth)
- Wavelength Reproducibility: +/- 1 nm
- Measurement Range: 5 to 100,000 lx
- Stray light: -25 dB max.
- Integration Time Range: 100us to 1,000 ms
- Digital Resolution: 16 bits
Flicker:
- Measurement Range: 5 to 100,000 lx
- Sampling Rate: 100k sample/sec
- Frequency Range: 5 to 50k Hz
- Frequency Resolution: 2 or 3 Hz
- Flicker Accuracy: +/- 5%
Measuring modes:
- Basic Mode
- Spectrum Mode
- CRI Mode
- Flicker Mode
- Filter Mode
- Exposure Mode
- CIE 1931/1976 Chromaticity Mode
- TM-30-15 Mode
- Compare Mode
- Browser Mode
- Option Mode
Measuring capabilities:
- Illuminance (LUX)/Foot Candle (fc)
- Correlated Color Temperature (CCT)
- CIE Chromaticity Coordinates
- Delta uv (Duv)
- Color Rendering Index (CRI, Ra)/R1 to R15
- Television Lighting Consistency Index (TLCI)
- TM-30-15 (Rf, Rg, Color Vector Graphic)
- Flicker Frequency
- Percent Flicker
- Flicker Index
- LB / CC Filter
- Exposure
- Spectral Power Distribution (SPD)
- Peak Wavelength
- Peak Wavelength Value
- Intergration Time
System configurations:
- Display: 3.5" 320X240 Resistive Touch LCD
- Max. files: 69,000 Files at 8GB SD Card (Excel + JPG)
- Battery Operation time: less than or equal to 5 hours / Fully Charged
- Power: Adapter; 2500 mAh (3.7V Rechargeable Li-ion Battery)
- Data Output Interface SD: SD Card (SD2.0,SDHC/up to 32G) / Mini USB Port (USB 2.0) / WiFi SD Card compatible with iOS and Android
- Data Format: Compatible Excel / JPG
- Dimensions: 147.5 x 78 x 24 mm (H x W x D)
