SterilDisk - TS01SD
Backorder Now, once ordered your item will dispatch before the 25th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
The SterilDisk is a temperature data logger with internal sensor that measures temperature up to 140 degrees Celsius.
- - Internal sensor range: -20 to 140 C. Includes calibration certificate.
- - Food grade and waterproof.
- - Easily fits packages because of its small size and ideal for surface monitoring.
$857.67 AUD Inc. GST
Note: Requires the DiskInterface HS to use. Sold separately.

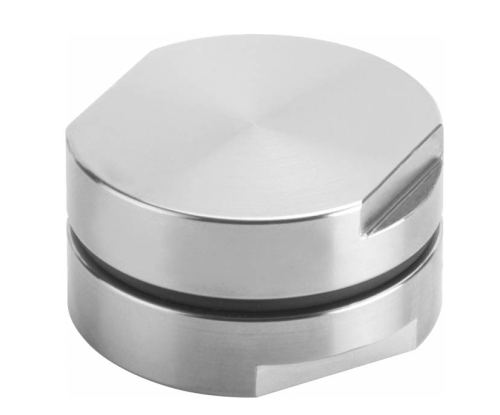

The TS01SD is a temperature data logger that measures from -20 to 140 C (calibration from 25 C to 140 C), with internal sensor, IP68, in AISI316 L stainless steel, for sterilisation, pasteurisation, cooking processes monitoring. Data management and settings are managed through windows software and USB.
Thanks to its reduced size (36,5 mm diameter) it can be used directly inside packages. Ideal for surface monitoring especially in connection with the tacky thermal pad to improve the response time. It can be used alone or in combination with other loggers of the same model or different models, also for pressure monitoring.
Every SterilDisk includes a battery kit for battery replacement is included. Battery is user replaceable and the data logger is provided with an Accredia (NIST equivalent) traceable certificate on 6 points.
Features:
- Small size
- Completely food grade and waterproof
- All software calculate lethality value (F0, PU, A0 ecc.)
- User replaceable battery (software shows battery status)
- Accredia (NIST equivalent) traceable calibration certificate included
- High accuracy and precision
- Printed reports compliant with health regulations and ISO (data are not editable in the software)
- Can be fixed to food package and surfaces with the Mounting Base
Specifications
- Dimensions: 17.4 h x 36.5 (mm)
- Weight: 80 g
- Materials: Stainless steel AISI316L, PEEK
- Temperature range: -20 to +140 C
- Standard calibration points (temperature): 25/50/75/100/121/140 C
- Extra calibration points (temperature): Within the range -20 to 140 C
- Temperature resolution: 0.01 C
- Temperature accuracy: +/- 0.2 C (within the calibration range)
- Memory (n. of acquisitions): 20.224
- Acquisition step: From 1 every second up, with 1 second steps
- Protection degree: IP68
- Battery type: 3.0V lithium user replaceable
- Battery life: +1.400.000 acquisitions at 1 second step continuously (calculated time at 25 C. Battery life may be shorter if used in low temperatures)
- Software and Mobile App: SPD, TS Manager
- Accessories: DiskInterface HS Mini, DiskInterface HS, Universal Multibay
