IDEAL 61-959 Suretrace Circuit Tracer

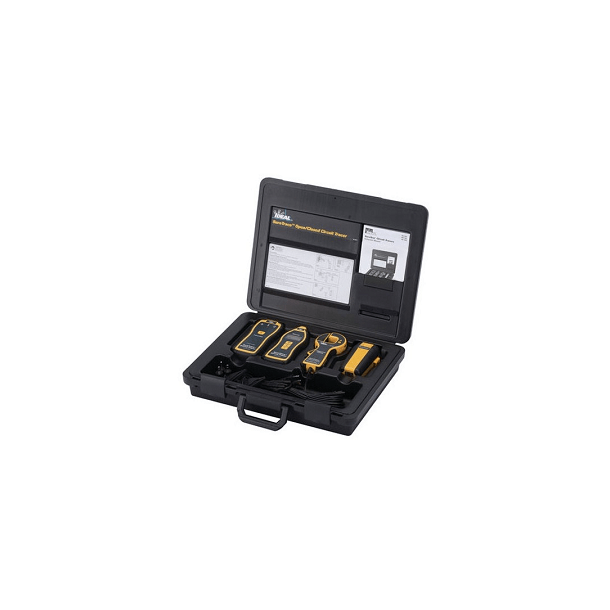

Numeric value and audible signal provide quick and easy-to-understand tracing feedback. Includes: TR-955 Transmitter, RC-955 Receiver, TL-956 Tracer Test Lead Set, IC-958 Inductive Clamp, BP-958 Battery Pack, C-959 Hard Case
No circuit tracer has ever been so user friendly. Super-bright models provide a numeric value between 0 and 99 and a variable pitch/tone audible indication. In addition, the peak detector provides instantaneous signal strength feedback.
SureTrace features the only rotating display in the industry. Regardless of what position you put the receiver in, the display will orient itself so that the reading stays upright.
Every safeguard has been taken to make the Circuit Tracers durable and safe for the long term. Additionally, a high-energy fuse and CAT III 600V design give you the confidence to go about the job without worrying about equipment safety.
Features:
- Numeric value and audible signal provide quick and easy-to-understand tracing feedback
- Receiver display rotates automatically for easy viewing
- Identifies breakers and fuses
- Pinpoints opens and shorts
- Traces wires behind walls and under ground
- Can be used on circuits 0-600V AC/DC
- Ruggedized overmolding for enhanced impact resistance
- Handset signal communication is tuned tighter to reduce false signaling on noisy circuits
- Bolder display for effortless viewing
- Sensitivity range expanded - no signal saturation on multiple breakers.
- Enhanced power management - 10% longer battery life and smart low battery indicator prevents performance - degradation
- Peak detector displays signal intensity fluidly
- CertainCircuit feature now on all models
Specifications
Transmitter:
- Operating Frequency: 32.768 kHz, fixed-amplitude, time-modulated signal
- Current Output of Signal: 82 mArms to 50 Ohms
- Voltage Output of Signal: 4 Vrms (330mW)
- Operating Voltage: 0600 VAC/DC
- Battery Power: 4x 1.5 AAbatteries (NEDA 15A, IEC LR6)
- Battery life: 25 hours open circuit testing/6 hours short circuit tracing
Receiver:
- Sensing: Magnetic
- Signal response: Numeric display and Audible beep
- Battery Power: 3x 1.5 AAbatteries (NEDA 15A, IEC LR6)
- Battery life: 20 hours minimum
Inductive Clamp with Battery Pack:
- Operating Frequency: 32.768 kHz, fixed-amplitude, time-modulated signal
- Current Output of Signal: 200 mA p-pmax into 50 ohms
- Voltage Output of Signal: 30 V nominal (2 watts)
- Operating Voltage: 0600 VAC/DC
- Battery Power: 8x "C" batteries (NEDA 15A, IEC LR6)
- Battery life: 30 hours
Other specifications:
- Operating temperature: 0 C to 50 C
- Storage temperature: -20 to 60 C
- Operating humidity: 95% RH max
Warranty:
- 2 Year Manufacturer Warranty +
Additional 1 Year Instrument Choice Warranty
