Surface Roughness Meter - IC-RTD-100
Backorder Now, once ordered your item will dispatch before the 26th of April 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

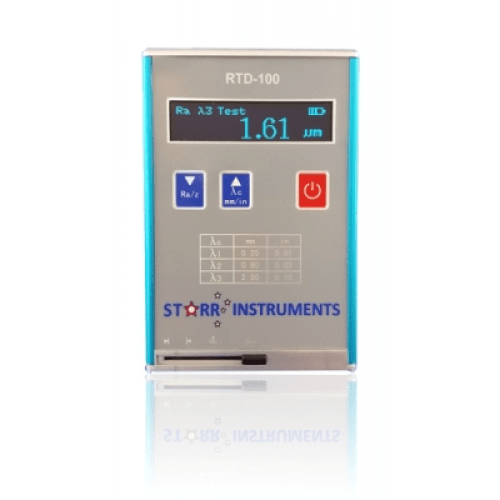

The RTD-100 is a gauge for measuring surface roughness and is best used with flat or large curved areas where access is not an issue. The RTD-100 has a sturdy metal case and is easy to read with a bright OLED dot matrix screen. Measurements are shown in Ra or Rz.
Regular price
$1,299.40 AUD
+ GST
$1,429.34 AUD Inc. GST
$1,429.34 AUD Inc. GST
Applications for use include workshop testing and QC, laboratory use, Metrology, production testing and including checking cylinder head and bore in automotive or railway track maintenance to name a few.
The metal case provides durability and the size is compact for portability. The easy to read OLED display can be read in bright environments without light interference. Low power consumption and automatic shut off allow for a long in use battery life of 20 Hours for ample testing. The probe is integrated in the unit for protection which makes the RTD-100 best suited for flat surfaces or large curves where access is easy.
The unit is easy to operate and can be calibrated using the included specimen. The sensitive probe traces the surface and converts the measurements into Ra or Rz. The measuring range for Ra is 0.05µm - 10µm and Rz is 0.1µm - 50µm.
Features:
• Compact, Easy to use
• Rugged full metal shell design
• DSP chip for hi-speed data processing
• Clear bright OLED dot matrix screen
• Built in rechargeable battery
• Automatic shutdown and power saving function.
• Standard Kit includes the main unit, the calibration reticule template and support, calibration certificate, USB charging cable and power adapter.
Specifications
• Maximum Travel: 6mm
• Accuracy: ±10%
• Parameter: Ra (0.05µm-10µm) Rz (0.1µm-50µm)
• Sampling Length "L": 0.25mm, 0.8mm, 2.5mm
• Evaluation Length: 1.25mm, 4mm, 5mm
• Power: Built-in rechargeable battery
• Battery Life: 20 Hours continuous work
• Dimensions: 106mm x 70mm x 24mm
