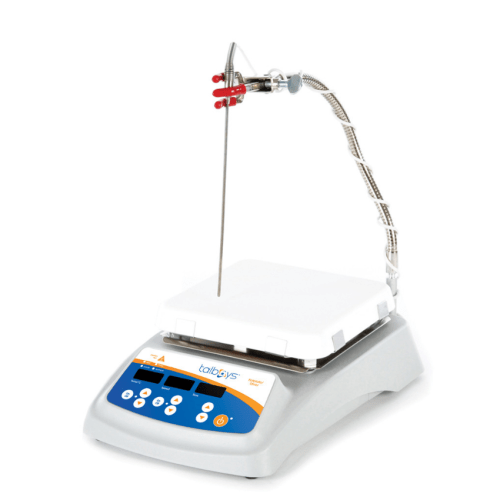

Talboys Professional Hotplate-Stirrers are designed for applications that require exceptional accuracy, stability and repeatability. Exclusive safety features help protect operator and sample. Enhanced microprocessor control offers an exceptional RTD probe option that delivers superior temperature control of the sample. Stirring function, with continuous duty motor and powerful magnet, maintains set speed, even under changing load or viscosity. Separate
LED displays for temperature, speed, and time allow user to view all settings at once.
Features:
- Low Profile Design: Takes up minimal space and fits easily into fume hoods. Spill-resistant design channels fluids away from internal components.
- Microprocessor Control: Advanced electronics regulate both heating and stirring and bring samples to temperature quickly and efficiently. An internal
RTD accurately measures and controls temperature. Precise speed control provides consistent
- Stirring at all speeds. Powerful continuous duty motor delivers dependable and reliable stirring. Control Panel: Touch pad controls with easy-to-read,
independent LED displays for temperature, speed and time allow operator to view all settings at once. Provides repeatable and accurate results every
time and is easily visible from outside fume hoods or across lab benches. Shows set-point and actual temperatures. Timer will display elapsed time
or, when programmed to user defined limit, will shut off unit when time reaches zero. Display will show last used settings, even after power has been
turned off.
- Ceramic Top Plate Material: Ceramic tops feature a chemical resistant, reflective white top plate surface that is easy to clean.
- Built-in Support Rod Holder: Rear housing features an off-centered, built-in support rod holder with locking knob that accepts the probe kit.
- RTD Probe Kit: Units are supplied with a probe kit which includes an 8 inches (20.3 cm) stainless steel PT1000 RTD temperature probe, 12 inches (30.5
cm) flex arm, interchangeable 3-prong clamp head, 2-prong clamp head and spring clamp head.
Safety features:
- Cool Touch Housing: Housing is made of a heat resistant polymer that is not only cool to the touch, but is also chemical resistant.
- Hot Top Indicator: For additional safety, hot symbol warning light is illuminated when heat is turned on and remains on until top plate cools down.
- Stir Protection: If stirrer motor stops or fails, unit will automatically shut down heater.
- Speed Ramping Feature: Slowly increases motor speed for improved safety and enhanced coupling. Avoids splashing, improves spin bar control, and provides
excellent low end speed control.
- Maximum Temperature Limiting (Plate Over Temperature Limit): Ensures plate temperature will never exceed users programmed set temperature limit, allowing
for control of samples with sensitive flash points.
- Audible Alarm: In timed mode, alarm will sound when time reaches zero or when unit reaches set-point temperature.
- Probe Protection: If probe disengages from sample, unit will automatically shut off heater.
Specifications
- Top plate dimensions: 7x7" (17.8 x 17.8 cm)
- Temperature Range: Ambient +5 C to 500 C
- Temperature Stability: +/- 1%
- Speed Range: 60 to 1600 rpm
- Speed Stability: +/- 2%
- Timer: 1 second to 160 hours
- Maximum Capacity (Water): 2500 ml
- Overall dimensions: 14.8 x 9.9 x 4.3 inches (37.6 x 25 x 10.9 cm)
