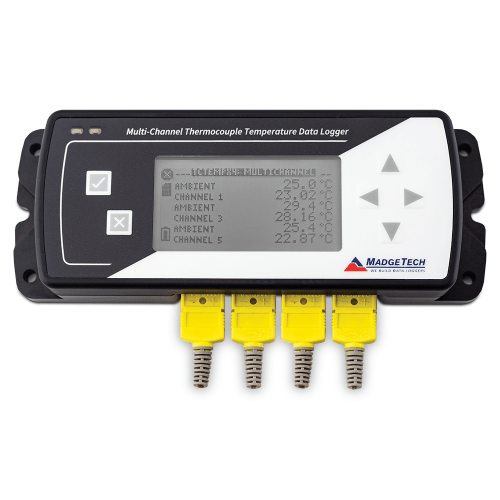

TCTempXLCD 8-Channel Thermocouple Data Logger with LCD

ORDER ME IN
Product code: IC-TCTempX8LCD

Backorder Now, once ordered your item will dispatch before the 13th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

The TCTempX8LCD features a large digital display for viewing current readings, as well as minimum, maximum and average statistics. Data can then be downloaded directly to the MadgeTech 4 Software for automatic reporting. No interface needed!

Read more

$3,237.15 AUD + GST
 $3,560.87 AUD Inc. GST
The TCTempX8LCD features a large digital display for viewing current readings, as well as minimum, maximum and average statistics. Data can then be downloaded directly to the MadgeTech 4 Software for automatic reporting. No interface needed!
Ideal for simultaneously monitoring multiple points in an application, the TCTempXLCD supports a variety of thermocouples and can be easily mounted for convenience.
The TCTempXLCD is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
Features:
- Large Backlit LCD Display
- User-Friendly Front Panel
- Monitor Multiple Points
- Accepts thermocouple types J, K, T, E, R, S, B, N
- High speed downloading
- On-screen statistics
- External power or user replaceable battery
- Low battery indicator

Specifications

- Temperature Range: -20 C to +60 C (-4 F to +140 F)
- Temperature Resolution: 0.01 C (0.018 F)
- Calibrated Accuracy: 0.5 C (0 C to 50 C), 0.9 F (32 F to 131 F)
- Remote Channel Thermocouple Types: J, K, T, E, R, S, B, N
- Thermocouple Connection: Female subminiature (SMP)Cold Junction
- Compensation: Automatic, based on internal channel
- Maximum Thermocouple Resistance: 1000 , <100 recommended
- Memory: 8-channel, 262,016 readings per channe
- LEDs: 1 per channel and 2 status LEDs
- Reading Rate: 4 Hz up to 1 reading every 24 hours
- Calibration: Digital calibration through software
- Calibration Date: Automatically recorded within device
- Battery Type: 9 V lithium battery included, user replaceable
- Battery Life: 18 months typical with display off. 3 months typical with continuous display use
- Data Format: Date and time stamped C, F, K, R, mV, V
- Time Accuracy: +/- 1 minute/month
- Computer Interface: USB-A to micro USB cable (included); 460,800 baud
- Operating System Compatibility: Windows XP SP3 or later
- Software Compatibility: Standard Software version 4.2.21 or later Secure Software version 4.2.18 or later
- Operating Environment: -20 C to +60 C (-4 F to +140 F),0 %RH to 95 %RH non-condensing
- Dimensions: 184.15mm x 65.58 mm x 42.672 mm
- Weight: 569 grams
