TEC AG-E3 Aerosol Generator - IC-AG-E3
Backorder Now, once ordered your item will dispatch before the 11th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
$12,568.60 AUD Inc. GST

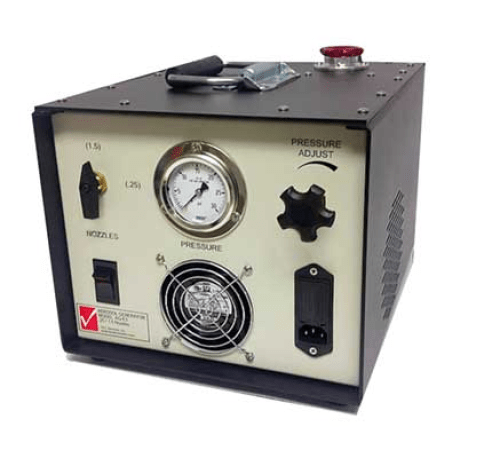

The AG-E3 laskin nozzle aerosol generator is a completely self-contained product. It offers the flexibility to leak test low airflow filter systems such as animal racks and isolators as well as still having the capability to test larger applications such as laminar flow hoods and biosafety cabinets all with the turn of a valve. The AG-E3 can be utilized to test filter systems from 34 to 2025 cfm.
It is simple, easy to operate, and control. The generator utilizes .25 laskin nozzles or 1.5 laskin nozzles depending on the users selection. If .25 nozzles is selected than the generator will provide 100 ug/l of aerosol when introduced into 34 cfm of airflow or 10 ug/l of aerosol when introduced into 338 cfm of airflow. If 1.5 nozzles is selected than the generator will provide 100 ug/l of aerosol when introduced into 203 cfm of airflow or 10 ug/l of aerosol when introduced into 2025 cfm of airflow.
The AG-E3 operates on 115 VAC (220 to 240 VAC / 50 to 60 HZ Available); there is no separate air compressor needed for operation. The internal compressor supplies 20+ psi to the laskin nozzles and is adjustable when lower concentrations are required. It also utilizes a collapsible handle, easy to use large fill port and sight glass for viewing the oil level. The pressure gauge is easily removable in order to calibrate.
Features:
- Heavy Duty Black Aluminum Case
- Fold Down Handle
- Self Contained Operation (Electric)
- Adjustable Nozzle Pressure
- Pressure Gauge (0-30 psi)
- Spare Fuses
- Illuminated Off-On Power Switch
- Large Fill Port
- Sight Glass for Oil Level
- 75 FNPT Output w/ Adaptor
Includes:
- Fold Down Handle
- Self contained Operation (electric)
- Adjustable Nozzle Pressure
- Pressure Gauge (0-30psi)
- Spare Fuse
- Illuminted On-Off Power Switch
- Large Fill Port
- Sight Glass for Oil Level
- 0.75" FNPT Output with Adapter
Warranty
- 2 Years Manufacturer Warranty + Additional 1 Year Instrument Choice Warranty
Specifications
- Aerosol Generation: 0.25 to 1.5 nozzles
- Aerosol Output at 34cfm: 100 ug/l
- Aerosol Output at 2025cfm: 10ug/l
- Case: Black Aluminum w/ Handle
- Size: 14.5 L x 11.25 W x 9.75 H
- Weight: 35 lbs. (15.9 kg)
- Power: 115 VAC 60 Hz or 220VAC 50 Hz
- Reagent: PAO or equivalent
- Testing Range: 34 to 2,025 CFM
