Temp/RH Cabinet 850L, Refrigerated
The TRH-850-SD/GD out of the TRH series manufactured by Thermoline offers accurate and precise control of temperature and humidity. All of these high performance models have the ability to perform heating, cooling, humidification and dehumidification functions. Models in four standard capacities from 150 litres to 850 litres are available.

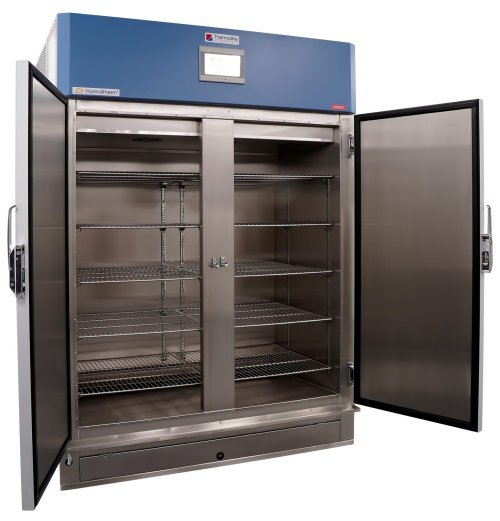

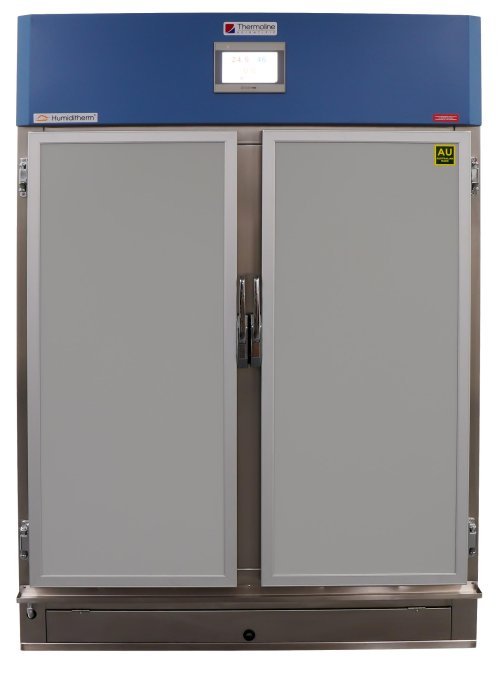

The TRH-850-SD comes with two solid doors and a capacity of 850 litres while the TRH-850-GD has glass doors.
Thermoline also has the ability to customise each unit to meet unique applications. All models are internally constructed from stainless steel and are externally constructed from an attractive PVC coated steel. Solid and glass doors are available for all models.
- Fan forced air supply via long life self cooling motors delivers conditioned air throughout for precise internal conditions
- Temporal accuracy at set point better than +/- 0.2 C and 1%RH (unloaded chamber)
- Spatial accuracy measured to be better than 1 C and 3%RH (unloaded chamber)
- Dehumidification via purpose built refrigeration system with air cooled condenser
- Heating and humidification provided through electric stainless steel heating element
- Cooling provided via evaporator coils with in air handling system and electronic switching of solenoid valves
- High grade electronic temperature and humidity sensor
- 50mm Monitoring or cable port access point (additional ports available)
- Convenient manual or log book holder on side of cabinet
- Easy installation with optional gravity feed water tank
- Built in condensate drain system to single exit point-allows easy cleaning of internal trough generator
- Optional ramp to set point functions
- Auto over temperature safety (Failsafe)
- Built in electric element safety cut out
- Positive door closure
- Lockable castors
- Water trough with automatic water level detection and low water safety cut out
- Controller error code
Specifications
:|
Capacity (litres) |
850 |
|
Temperature Range |
+10 C to +80 C (Solid Door) + 10 C to +60 C (Glass Door) |
|
Humidity Range |
10% to 95% (Solid Door) 10% to 90% (Glass Door) |
|
Shelf Positions |
Multiple |
|
Shelves Supplied |
8 |
|
Temperature Control Stability |
+/- 0.2 C |
|
Temperature Spatial Variation |
+/- 1.0 C |
|
Humidity Control Stability |
1% RH |
|
Humidity Spatial Variation |
3% RH |
