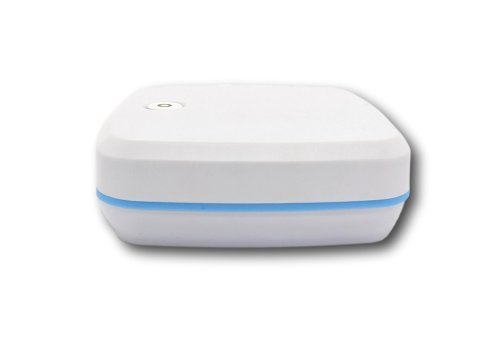

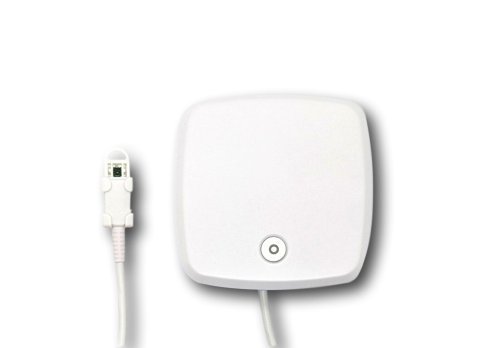

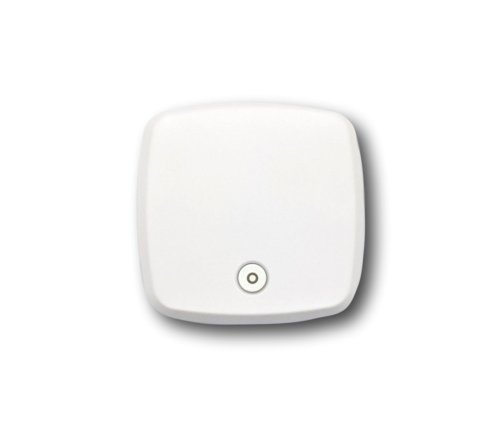

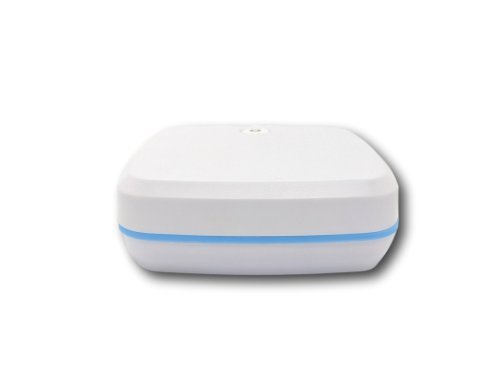

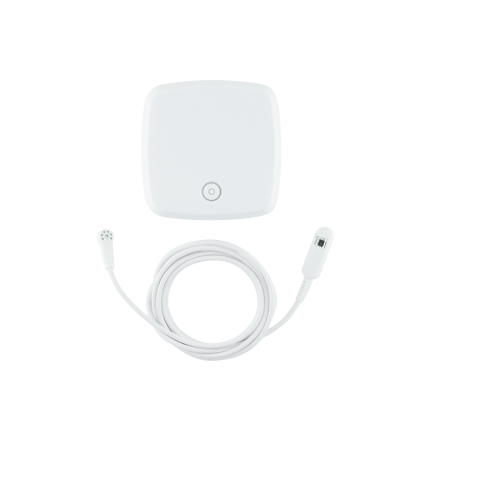

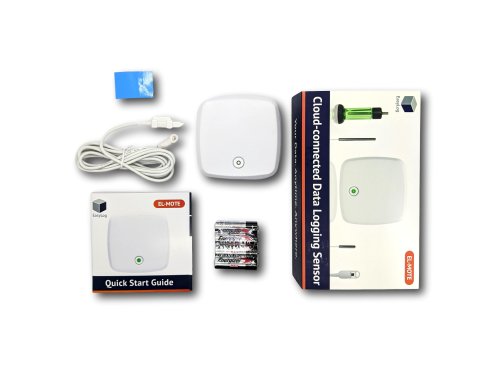

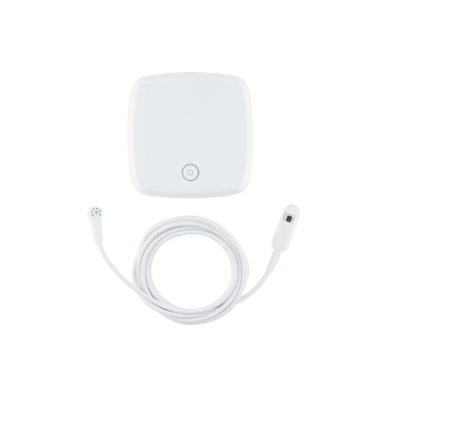

The EL-MOTE-TH kit has been designed to monitor air temperature and relative humidity with external temperature and humidity probes, ideal for monitoring museum display cases and HVAC systems.
Products in the EL-MOTE range are simple to set-up and easy to use. Download the EasyLog Cloud App and pair up a device in minutes over your WiFi network.
After set-up, the device can be placed anywhere within range of the WiFi network, continually monitoring and recording your data to the EasyLog Cloud.
Access your data on any Internet Browser or the EasyLog Cloud App, enabling you to monitor the ambient temperature of your chosen location from anywhere
at any time.
EL-MOTE devices can be programmed with high and low temperature alarm zones. If a temperature zone is breached, an alarm will be activated. Alarm options
include: email alerts (which can be sent to one or multiple email addresses), beeper sound alarms, and LED flash alerts.
Features:
- Measures ambient temperature between -30 to +80 C/-22 to +176 F and relative humidity 0 to 100 %RH
- Records and uploads temperature data to the EasyLog Cloud; access your data anywhere
- Access live temperature data via any Internet Browser or the EasyLog Cloud App
- Connect multiple useres with variable account priveleges
- Connect data loggers from multiple sites in a single account
- Remotely manage all of your data logging devices
- Set up alarm options for temperature zone breaches email alerts, beeper alarms or LED flash alerts
- Review and analyse your data with powerful graphing functionality
- Detailed event log for tracking important events
- Suitable for indoor and outdoor use
- Battery life of up to 2 years
Specifications
Temperature:
- Range: -30 to +80 (-22 to +176)
- Resolution: 0.1 (0.1) C (F)
- Accuracy (Typical): +- 0.3 (+5 to +60 C)/(+- 0.6 (+41 to +140 F))
- Accuracy (Maximum): +- 0.8 (-20 to +60 C)/(+- 1 (-4 to +140 F))
Humidity:
- Range: 0 to 100 %RH
- Resolution: 1
- Accuracy (Typical): +-2 (20 to 80) %RH
- Accuracy (Maximum): +- 5 (0 to 100) %RH

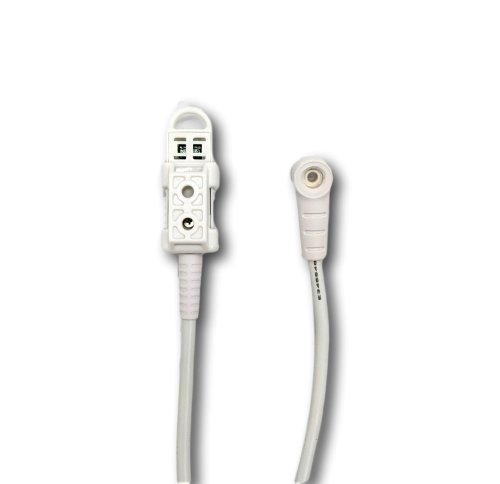

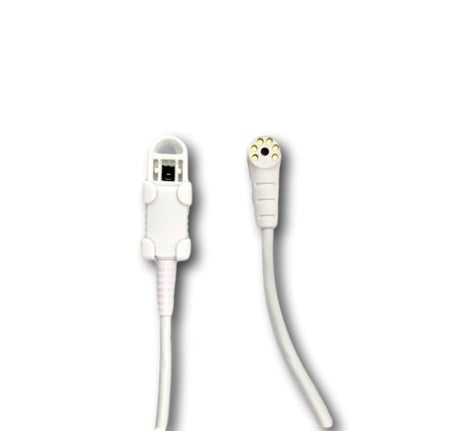

Probe dimensions:
- Dimensions: 37 x 12 x 8 mm (1.5 x 0.5 x 0.3 inches)
- Cable Length: 2000 mm (79 inches)
Data Logger:
- Battery Life: up to 2 years depending on wifi and logging settings

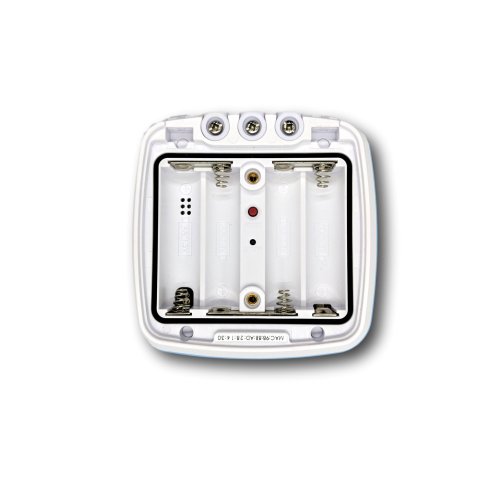

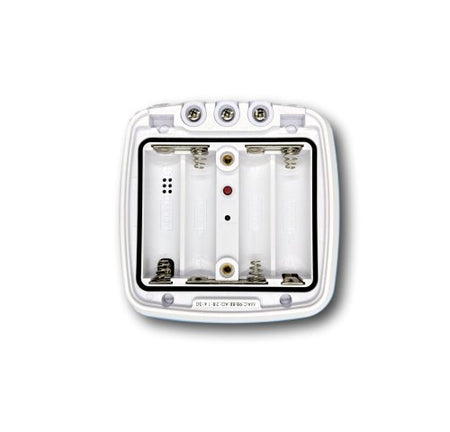

- Battery Type: 4 x 1.5V AA cells
- Operating Temperature (Powered by Batteries Supplied): -20 C (-4 F) +54 C (129.2 F)
- Operating Temperature (Mains Adapter Powered): -20 C (-4 F) +60 C (140 F)
- Logging Period (User Configurable): 10 sec 10 min 12 hrs
- Transmission Period (User Configurable): 1 min 1 hour 24 hours
- Dimensions: 93 x 93 x 32 (3.7 x 3.7 x 1.3) mm (inches)
- IP Rating: 67
