Unfortunately, the 0563 3100 has been discontinued and has been replaced by the
0563 3104.

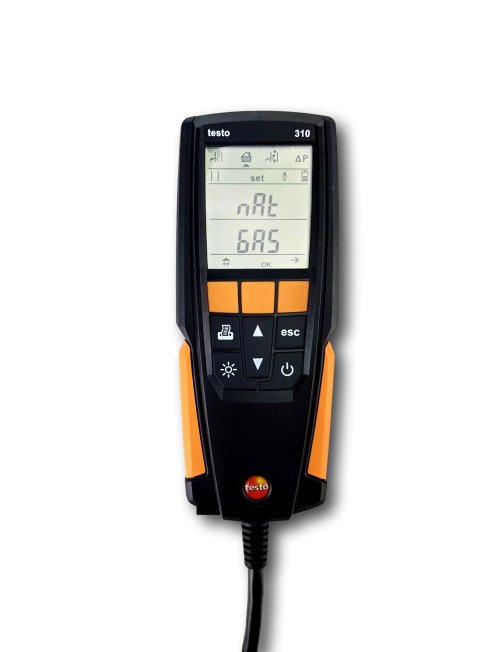

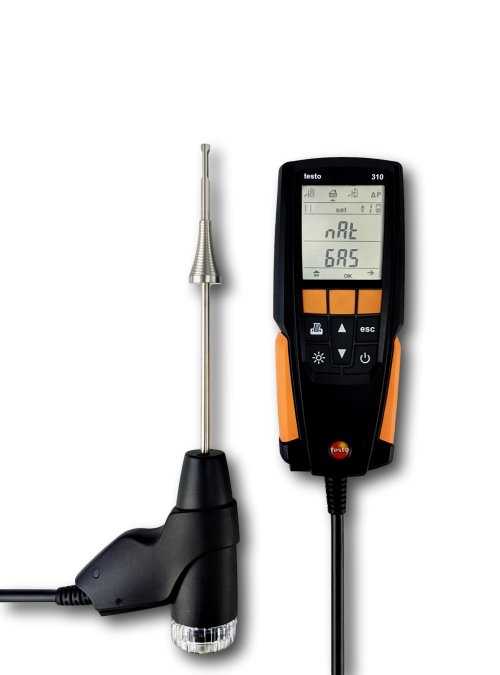

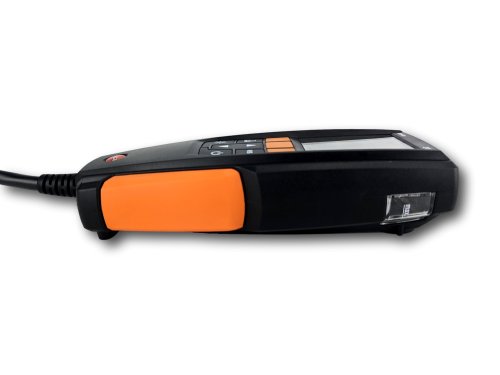

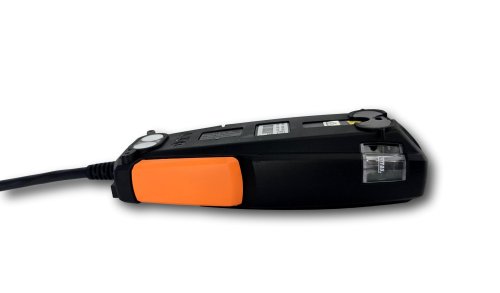

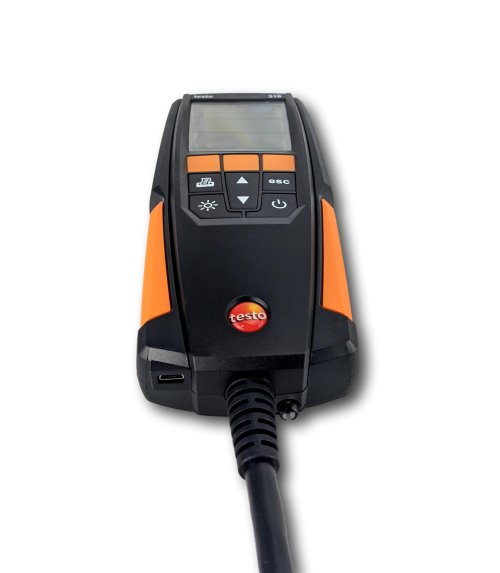

Fully featured and priced right, the Testo 310 residential combustion analyzer provides exceptional value and complete capabilities in combustion testing and furnace efficiency. With its capability to perform both basic, or more complex flue gas analysis, maintenance or safety checks, or confirm furnace efficiency, the fully featured Testo 310 combustion analyzer delivers more combustion parameters.

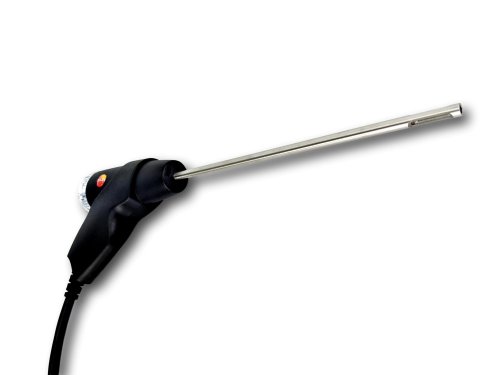

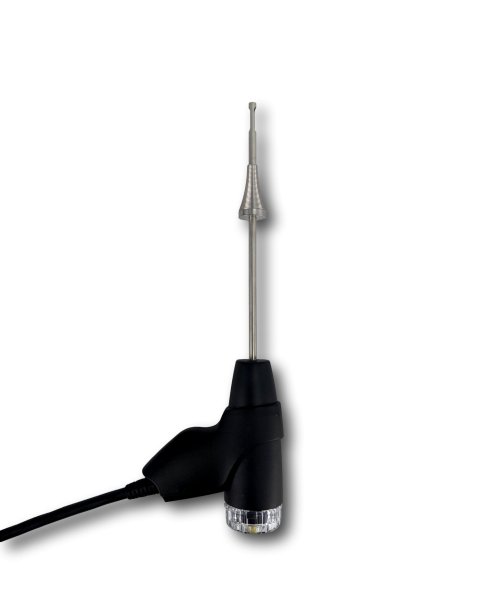

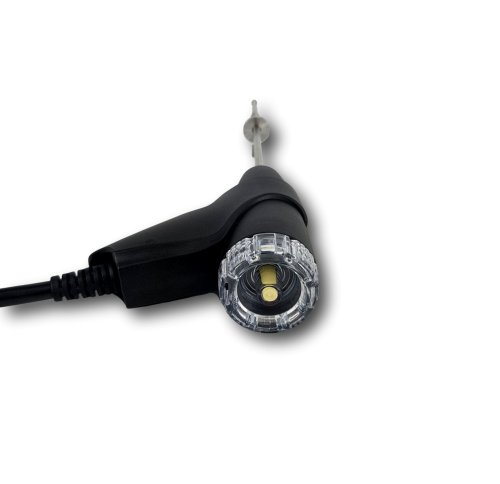

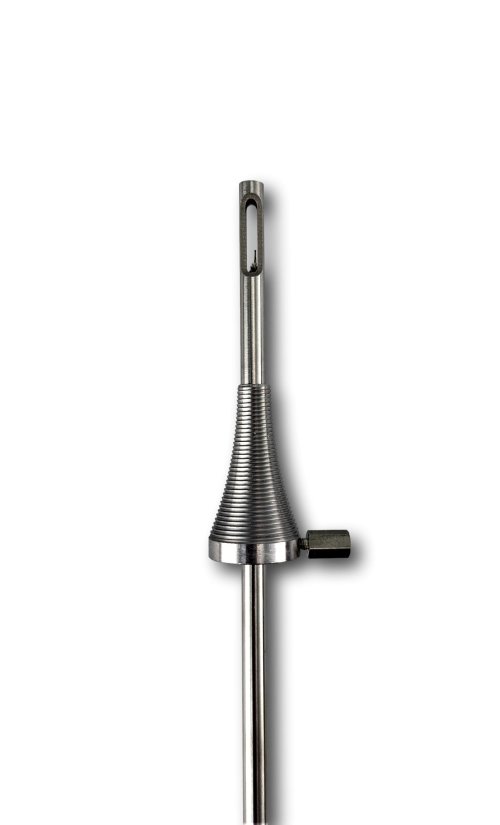

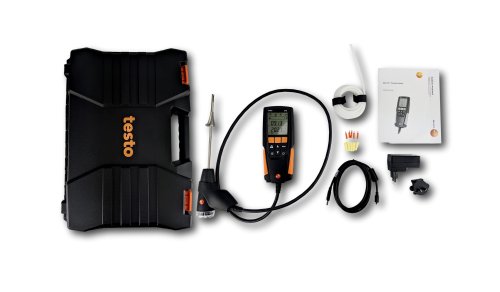

The stainless steel probe and cone-stop is perfect for residential, and boiler applications. The 310 can be used for accurate heating adjustments, so you can get it right the first time - every time.
With five different fuels to select from (Natural Gas, Propane, Fuel Oil , Biomass 5%, Wood 20%), it provides the flexibility you need for your tuning opportunities. With an optional printer kit available, you are able to keep records of all readings taken.
Measures:
- O2, CO , CO2
- Undiluted CO
- Ambient CO
- Draft & Pressure
- Temperature (flue & ambient)
- Combustion/flue gas efficiency & excess air
Specifications
Temperature - TC Type K (NiCr-Ni):
- Measuring range: -20 to +100 C
- Accuracy: 1 C
- Resolution: 0.1 C
- Reaction time: < 50 s
Temperature - TC Type J (Fe-CuNi):
- Measuring range: 0 to +400 C
- Accuracy: 1 C (0 to +100 C)/1.5 % of mv (> 100 C)
- Resolution: 0.1 C
- Reaction time: < 50 s
Flue gas O:
- Measuring range: 0 to 21 Vol.%
- Accuracy: 0.2 Vol.%
- Resolution: 0.1 Vol.%
- Reaction time t: 30 s
Differential Pressure flue gas Draught - Piezoresistive:
- Measuring range: -20 to +20 hPa
- Accuracy: 0.03 hPa (-3.00 to +3.00 hPa) 1.5 % of mv (Remaining Range)
- Resolution: 0.01 hPa
Flue gas degree of effectivity, Eta (calculated):
- Measuring range: 0 to 120 %
- Resolution: 0.1 %
Flue gas loss (calculated):
- Measuring range: 0 to 99.9 %
- Resolution: 0.1 %
Flue gas CO calculation (calculated from O):
- Measuring range: 0 to CO max (Display range)
- Accuracy: 0.2 Vol.%
- Resolution: 0.1 Vol.%
- Reaction time t: < 40 s
Pressure measurement:
- Measuring range: -40 to +40 hPa
- Accuracy: 0.5 hPa
- Resolution: 0.1 hPa
Flue gas CO (without H-compensation):
- Measuring range: 0 to 4000 ppm
- Accuracy: 20 ppm (0 to 400 ppm)/5 % of mv (401 to 2000 ppm)/10 % of mv (2001 to 4000 ppm)
- Resolution: 1 ppm
- Reaction time t: 60 s
Ambient CO:
- Measuring range: 0 to 4000 ppm
- Accuracy: 20 ppm (0 to 400 ppm)/5 % of mv (401 to 2000 ppm)/10 % of mv (2001 to 4000 ppm)
- Resolution: 1 ppm
- Reaction time: 60 s
