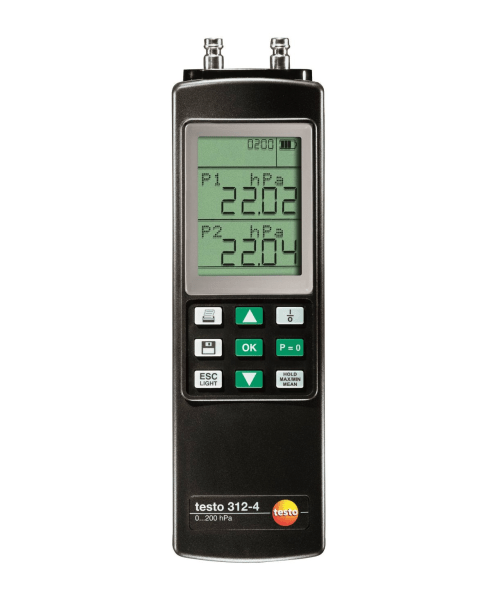

testo 312-4 - Differential pressure measuring instrument kit

ORDER ME IN
Product code: IC-0563-1328

Backorder Now, once ordered your item will dispatch before the 03rd of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

The testo 312-4 differential pressure measuring instrument offers measuring processes for load and tightness tests as well as serviceability tests on gas pipes using air. It also enables the checking of static gas and gas flow pressures, as well as the nozzle pressure setting on gas burners or boilers.

Read more

$3,139.40 AUD + GST
 $3,453.34 AUD Inc. GST

A measuring instrument for carrying out all necessary tests on gas heaters and pipes as well as water pipes. Inherently safe thanks to the use of C-Flex hoses with high impermeability. Legally compliant measurement procedure for pre-test, main test and leakage quantity measurement on gas pipes. Recording of measurement values over a defined period (e.g. 24 h) and data transfer and analysis on PC software incl. graphic presentation.

Features:
- Tightness testing and load testing on gas pipes
- Serviceability testing with air by pressure drop on gas pipes
- Pressure testing on drinking water and waste water pipes using air
- Automatic recording of measuring values over several hours

Specifications

Temperature - Type K TC:
- Measuring range: dependent on probe type used
- Accuracy: +/- 0.7 F (-148 to 392 F)* / +/- 0.4 C (-100 to +200 C)*/+/- 2 F (Remaining Range)* / +/- 1 C (Remaining Range)*
- Resolution: 0.01 ?F t1 / 0.01 ?C
Differential pressure (internal sensor):
- Measuring range: 0 to 80 InH?O / 0 to 200 hPa
- Accuracy: +/- 0.01 InH?O (0 to +1 InH?O) / +/- 0.03 hPa (0 to +3 hPa)/+/- 1.5 % of mv (+1.2 to +16 InH?O) / +/- 1.5 % of mv (+3.1 to +40 hPa)/+/- 1 InH?O or +/- 1 % of full-scale value (16 to +80 InH?O) / +/- 2 hPa or +/- 1 % of fsv (41 to +200 hPa)
- Resolution: 0.01 InH?O / 0.01 hPa
Pressure measurement (external probe):
- Measuring range: 0 to 363 psi / 0 to 25 bar
- Accuracy: +/- 0.6 % of full-scale value (0 to 145 psi) / +/- 0.6 % of fsv (0 to 10 bar)/+/- 0.6 % of full-scale value (>145 to 363 psi) / +/- 0.6 % of fsv (>10 to 25 bar)
- Resolution: 4 InH2O / 10 hPa
General technical data:
- Dimensions: 9 x 3 x 2 in. / 219 x 68 x 50 mm
- Interface printer: Infrared interface
- Data transfer: RS232
- PC software: Easyheat
- Memory: 25,000 measuring values
- Weight: 21 oz. / 600 g
*Accuracy information applies only to instrument without probes connected
Kit includes:
- testo 312-4 differential pressure gauge
- testo 312-4 hose set
- balloon pump with release screw
- conical test plug 1/2
- conical test plug 3/4
- testo fast printer
- pressure set for gas pressure measurements on heating systems
- high-pressure plug 3/8 und 3/4
- high-pressue plug 1/2 and 1
- high-pressure probe 1up to 25 bar
- system case
