Testo 570s Smart Vacuum Kit with Clamp Meters - 0564-5704
Backorder Now, once ordered your item will dispatch before the 18th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
The 570s Smart Vacuum Kit is appropriate for measuring refrigeration and air conditioning systems and heat pumps. Includes the testo 570s digital manifold with Bluetooth, 2 testo 115i clamp thermometer, 1 testo 552i wireless vacuum probe, 1 testo 770-3 Clamp Meter and transport case.
- The testo 570s digital manifold provides smart and reliable long-term measurements using its intelligent error analysis using the testo Smart App.
- Also boasts a long battery life, lasting for up to 360 hours.
- The included wireless smart probes connects to your mobile device for quick and accurate measurements without using cables.
- The included testo 770-3 clamp meter is designed for tight spaces with a retractable pincer arm.
Regular price
$1,959.20 AUD
+ GST
$2,155.12 AUD Inc. GST
$2,155.12 AUD Inc. GST
The 570s Smart Vacuum Kit is appropriate for measuring refrigeration and air conditioning systems and heat pumps. Includes the testo 570s digital manifold with Bluetooth, 2 testo 115i clamp thermometer, 1 testo 552i wireless vacuum probe and transport case.

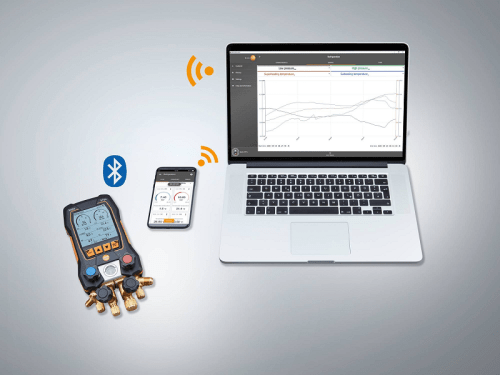

The testo 570s digital manifold provides smart and reliable long-term measurements using its intelligent error analysis using the testo Smart App. It also boasts a long battery life, lasting for up to 360 hours. The included wireless smart probes connects to your mobile device for quick and accurate measurements without using cables and provides additional functions.
The testo 115i is convenient for measuring refrigeration, air conditioning and heating systems and presents measured values in graphical display. The testo 552i monitors vacuum also through graphical display.
3 Year Warranty (2 Year Manufacturer Warranty + Bonus 1 Year Instrument Choice Warranty)
Testo 570 features:
- Get results fast, with no tedious searching. With the intelligent error analysis feature in the testo Smart App

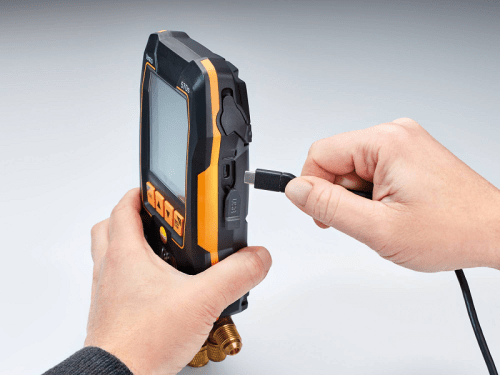

- World's longest battery life of up to 360 hours with rechargeable battery (USB-C) and batteries
- Suitable for use with A3 and A2L refrigerants
- Highest precision even at low pressure values due to measuring accuracy of 0.25% fs
- Ideal for long-term measurements on refrigeration and air conditioning systems and also heat pumps, thanks to its long runtime (360 hours) and large data memory
- View all measurement data at a glance and follow a graphical progression display on the large screen
- Straightforward to use, with maximum flexibility for your application: Wireless measurement of temperature, vacuum, refrigerant weight and current via automatic connection of Bluetooth probes
testo 115i features:
Professional measuring technology is now mobile: when it comes to measuring temperature at widely spaced measuring points in particular, the testo 115i makes things a lot easier thanks to wireless connection to your smartphone or tablet.
- Convenient temperature measurement on refrigeration, air conditioning and heating systems thanks to wireless connection to your smartphone or tablet
- Fast identification of temperature changes by graphic progression display
- Measurement data analyzed and sent via testo Smart App
- Problem-free application at measuring points that are a long distance apart thanks to Bluetooth range up to 100 m
testo 552i features:
Wireless vacuum measurements via just one service port: The testo 552i app-controlled vacuum probe with Bluetooth enhances the Testo Smart Probes portfolio. It delivers reliable measurement results, is robust and easy to use the vacuum probe provides optimum support for proper evacuation of refrigeration and air conditioning systems and heat pumps.
- Identify vacuum quickly and easily by means of the graphical display in the App or on the digital manifold screen
- Connects automatically via Bluetooth to the testo Smart App and digital manifolds
- Exceptionally compact and reliable thanks to the robust, easy-to-handle housing with IP 54 protection class
- Easy installation at any service port thanks to the integrated 45 degrees angle
testo 770-3 features:
- Easy to operate thanks to the fully retractable pincer arm
- Auto AC/DC and large two-line display
- Improved TRMS method
- Bluetooth connection to your smartphone (with the testo Smart App)

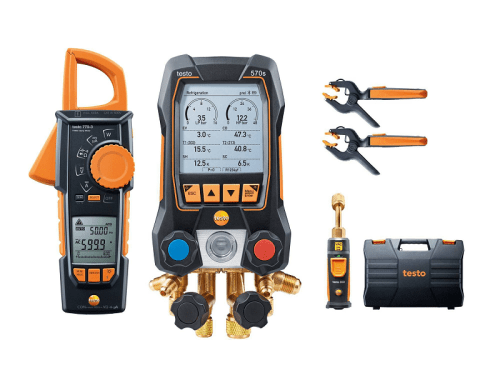

Standard Kit Includes:

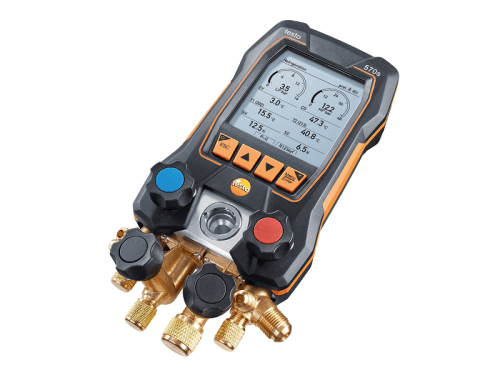

- Testo 570s digital 4-way manifold with lithium-ion rechargeable battery
- 2x Testo 115i wireless clamp thermometers
- 1x Testo 552i wireless vacuum probe
- 1x Testo 770-3 TRMS clamp meter
- 1x Testo 770-3 TRMS clamp meter
- Transport case
- Testo Smart App (free download)
- Instruction manuals
Testo 570 technical specifications:
Temperature:
- Measuring range: -50 to +150 C
- Accuracy: +/- 0.5 C
- Resolution: 0.1 C

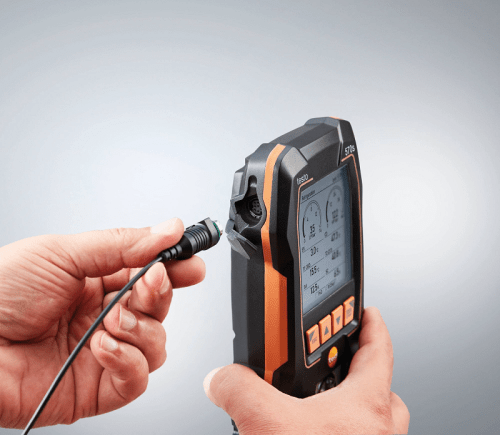

- Probe connection: 2 x Plug-in (NTC)
Pressure:
- Measuring range: -1 to 60 bar
- Accuracy: +/- 0.2 % fs
- Resolution: 0.01 bar
- Probe connection: 3x 7/16 inch UNF + 1 x 5/8 inch UNF
- Overload rel. (low pressure): 65 bar
- Overload rel. (high pressure): 65 bar
General:
- Weight: 1 kg
- Dimensions: 229 x 112 x 71 mm
- Operating temperature: -20 to +50 C
- Protection class: IP54
- System requirements: requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0
- Auto-off instrument: 10 min
- Battery life: With built-in rechargeable battery:; greater than or equal to 220 h without Bluetooth, without illumination; around 120 h with Bluetooth and illumination; With 3 AA batteries:; around 145 h without Bluetooth, without illumination; 75 h with Bluetooth and illumination

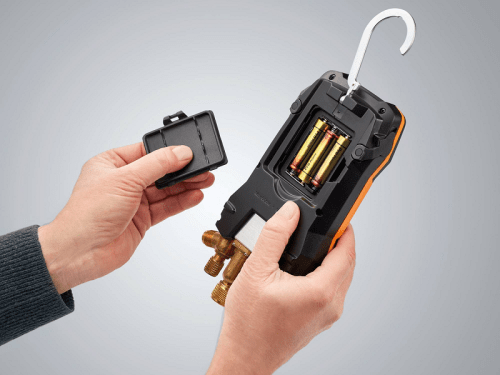

- Battery type: Built-in rechargeable battery: LI batttery 18650; Replaceable battery: 3 alkaline batteries AA
- Radio range: 150 m
- Storage temperature: -20 to +60 C
