testo 735-1 - 3-Channel temperature measuring instrument - IC-0560 7351

ORDER ME IN
Product code: IC-0560-7351

Backorder Now, once ordered your item will dispatch before the 17th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

testo 735-1 - 3-Channel temperature measuring instrument. Displays, saves, and prints delta T, min, max, and mean values

Read more

$807.00 AUD + GST
 $887.70 AUD Inc. GST

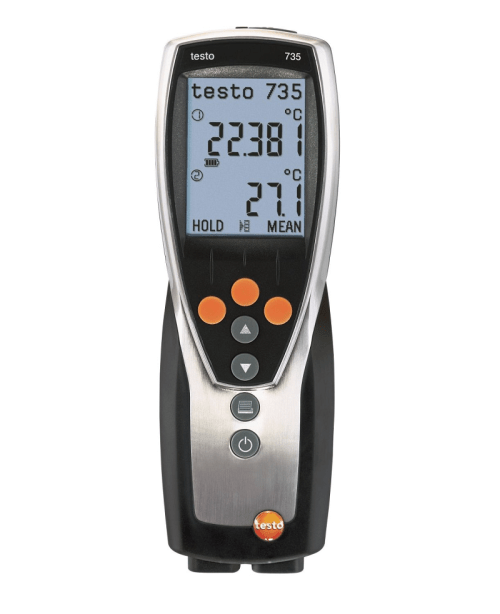

The testo 735-1 is a robust and compact measuring instrument, with a probe socket for highly accurate Pt100 probes, and two sockets for fast-action thermocouple probes. Readings from up to three additional temperature probes can be shown on the instrument's clear display; measurement data transmission is by radio, or wireless.

A total of six channels can be collected in this way by the instrument. Using the highly accurate, plug-in Pt100 immersion / penetration probe, a system accuracy of 0.05 C with a resolution of 0.001 C is reached. This measurement system is therefore ideally suited for use as a working standard. Data measured by testo 735-1 can be transmitted by infrared to the Testo printer for documentation purposes. If cyclical printing is used, it is also possible to print data on the printer once every minute, for example.
Features:
- Displays, saves, and prints delta T, min, max, and mean values
- Audible alarm when limit values are exceeded
- Protection class IP65

Specifications

Temperature - Pt100:
- Measuring range: -328.0 to 1472.0 F / -200 to +800 C
- Accuracy: +/- 0.4 F (-148.0 to 391.8 F) / +/- 0.2 C (-100 to +199.9 C)/ +/- 0.2 % of mv (Remaining Range)
- Resolution: 0.05 F / 0.05 C
Temperature - Type K TC:
- Measuring range: -328.0 to 2498.0 F / -200 to +1370 C
- Accuracy: +/- 0.5 F (-76.0 to 140.0 F) / +/- 0.3 C (-60 to +60 C)/ +/- (0.4 F + 0.3 % of mv) (Remaining Range) / +/- (0.2 C + 0.3 % of mv) (Remaining Range)
- Resolution: 0.1 F / 0.1 C
Temperature - TC Type T (Cu-CuNi):
- Measuring range: -328.0 to 752.0 F / -200 to +400 C
- Accuracy: +/- 0.5 F (-76.0 to 140.0 F) / +/- 0.3 C (-60 to +60 C)/ +/- (0.4 F + 0.3 % of mv) (Remaining Range) / +/- (0.2 C + 0.3 % of mv) (Remaining Range)
- Resolution: 0.1 F / 0.1 C
Temperature - Type J TC:
- Measuring range: -328.0 to 1832.0 F / -200 to +1000 C
- Accuracy: +/- 0.5 F (-76.0 to 140.0 F) / +/- 0.3 C (-60 to +60 C)/ +/- (0.4 F + 0.3 % of mv) (Remaining Range) / +/- (0.2 C + 0.3 % of mv) (Remaining Range)
- Resolution: 0.1 F / 0.1 C
Temperature - TC Type S (Pt10Rh-Pt):
- Measuring range: 32.0 to 3200.0 F / 0 to +1760 C
- Accuracy: +/- 1.8 F (32.0 to 3200.0 F) / +/- 1 C (0 to +1760 C)
- Resolution: 1.0 F / 1 C
