Testo 750-3 - Digital Voltage Tester

ORDER ME IN
Product code: IC-0590-7503

Backorder Now, once ordered your item will dispatch before the 17th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

The testo 750 voltage testers are the first instruments to include an all-around viewable LED voltage indication. The testo 750-3 features single pole phase testing, RDC/RC trigger function, LC dispplay, low input impedance, phase sequence, continuity test, and meet CAT III 1000 V CAT IV 600 V safety standards.

Read more

$256.00 AUD + GST
 $281.60 AUD Inc. GST

USPs

  • LC display showing the reading
  • Clear, patented all-round LED display
  • In accordance with DIN EN 61243-3:2010 and CAT III
  • RC trigger function and vibrating load buttons
  • The testo 750-3 voltage tester is the most high-performance model in Testo's convenient and reliable voltage tester family. In addition to the unique fibre-optic technology, the single pole voltage testing, the torch for measuring point illumination and the all-round LED display, it also has an LC display where the value currently being measured is shown.

Product Video - https://www.youtube.com/watch?v=r4g2Klwbh38&t=3s

Product Description

The testo 750-3 voltage tester is the most innovative voltmeter on the market. The clear all-round LED display with fibre-optic technology for ideal voltage indication can easily be read in any position. A second LC display also indicates the current reading. An anti-slip ring and the ergonomic shape of the handle also ensure you can work comfortably. The integrated torch helps with the illumination of dark measuring points. And the voltage tester is extremely durable thanks to the robust housing.

The testo 750-3 voltage tester is first and foremost suitable for determining voltage or de-energization on electrical circuits or systems. In addition, it can also be used to test continuity, measure rotating magnetic fields and test residual current circuit breakers via the RC trigger function. Vibrating load buttons ensure that trigger tests cannot be carried out accidentally.

Delivery Scope

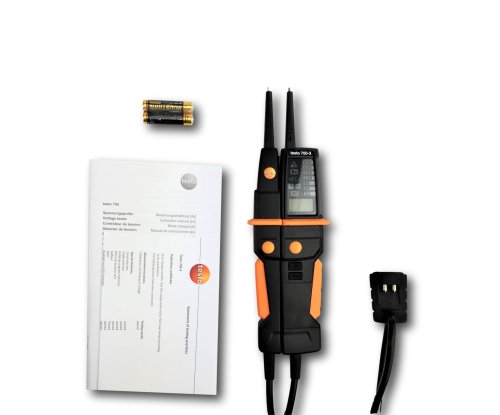

Testo 750-3 voltage tester, including batteries, measuring tip protector and measuring tip caps.



Specifications


DC Voltage:

- Measuring Range: 12 to 690 V
- Resolution: 0.1 V
- Accuracy: +- (3 % of mv + 5 Digit)

AC Voltage:

- Measuring Range: 12 to 690 V
- Resolution: 0.1 V
- Accuracy: +- (3 % of mv + 5 Digit)

General technical data:

- Operating temperature: -10 to +50 C
- Protection class: IP64
- Battery type: 3 x AAA
- Storage temperature: -15 to +60 C
- Overvoltage Category: CAT IV 600V; CAT III 1000V
- Authorizations: TUV; GS; CSA; CE
- Weight: 295 g
- Dimensions: 280 x 78 x 35 mm

Measurement functions:

- Continuity testing
- Display ligthing
- Hold
- RDC/RC trigger function
- Rotating magnetic field testing
- Single pole phase testing
- Measuring point illumination
