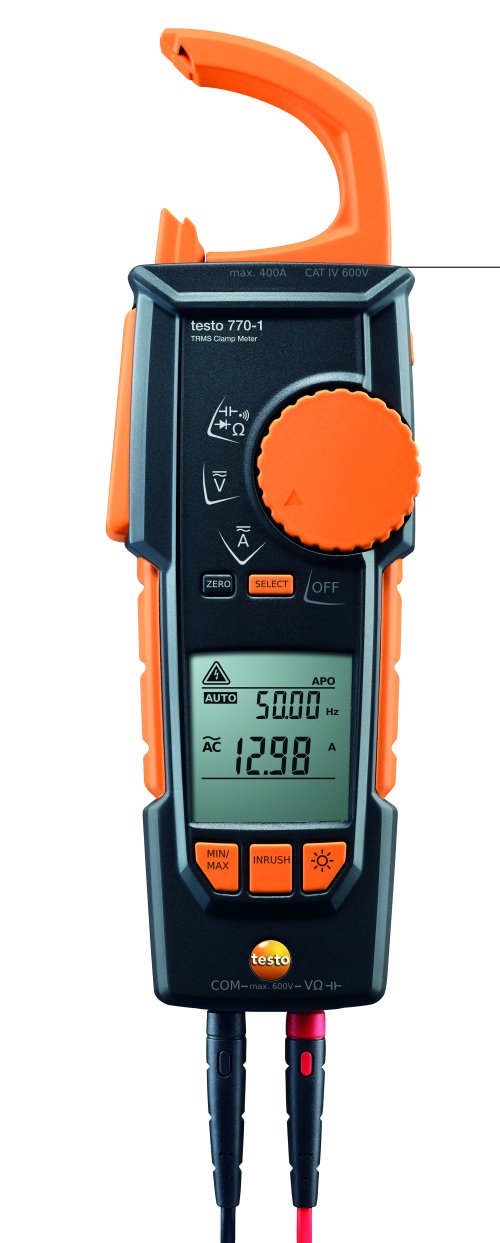

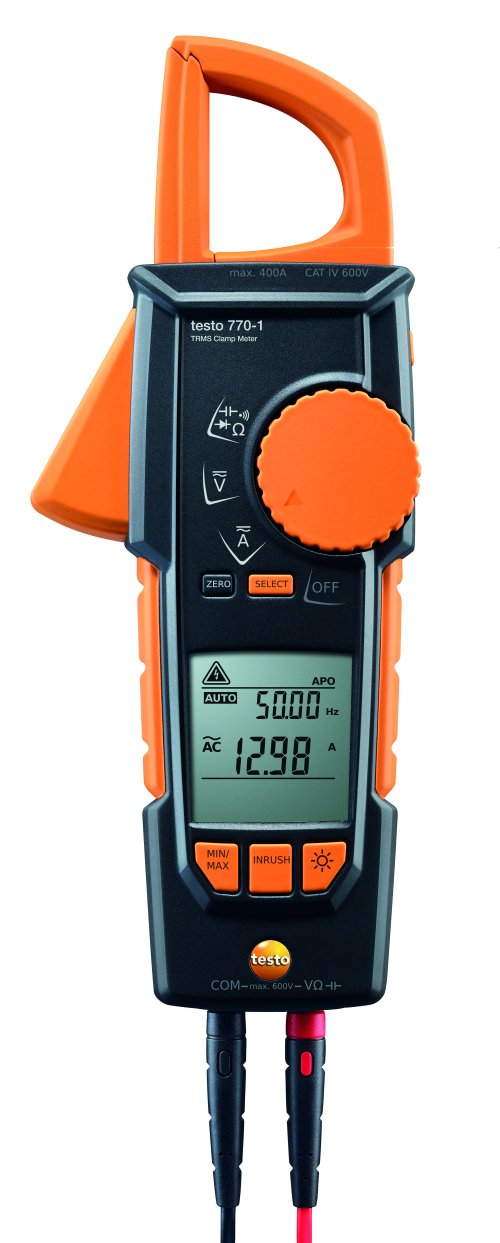

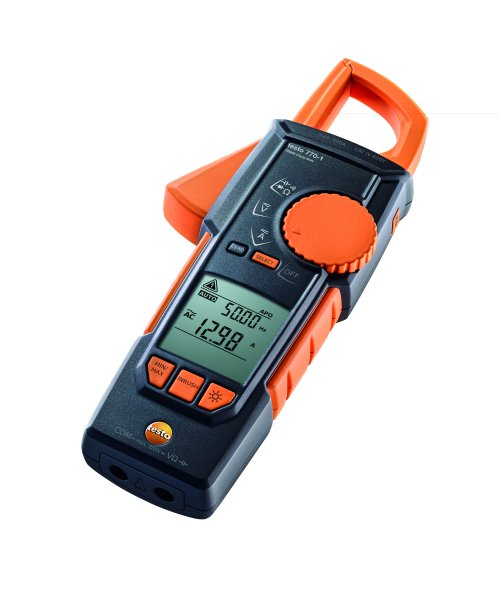

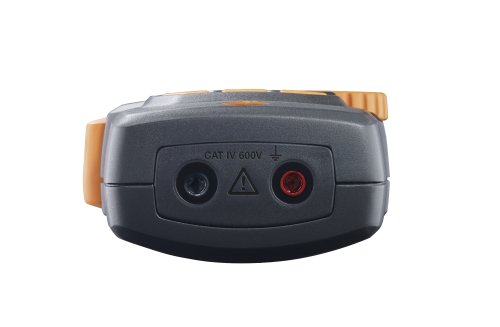

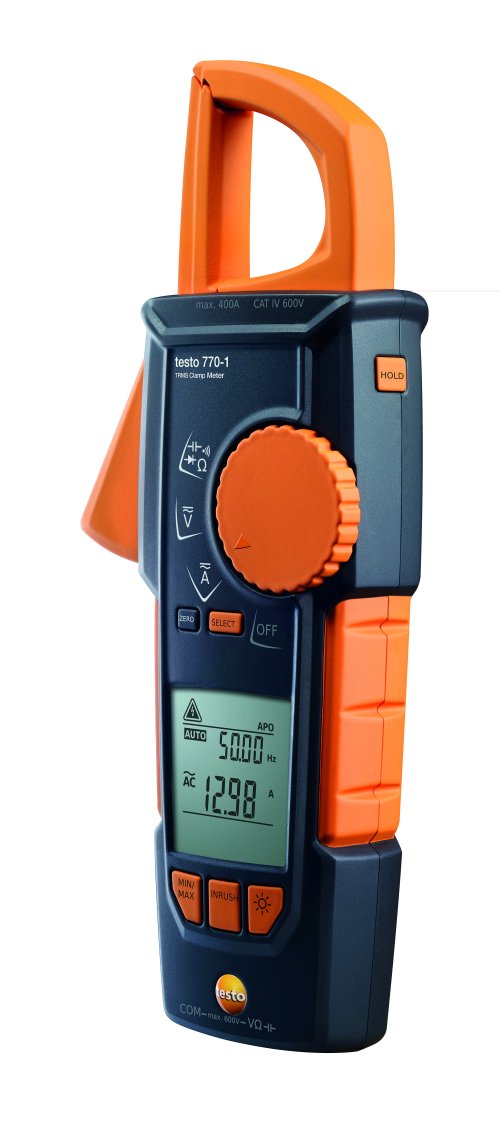

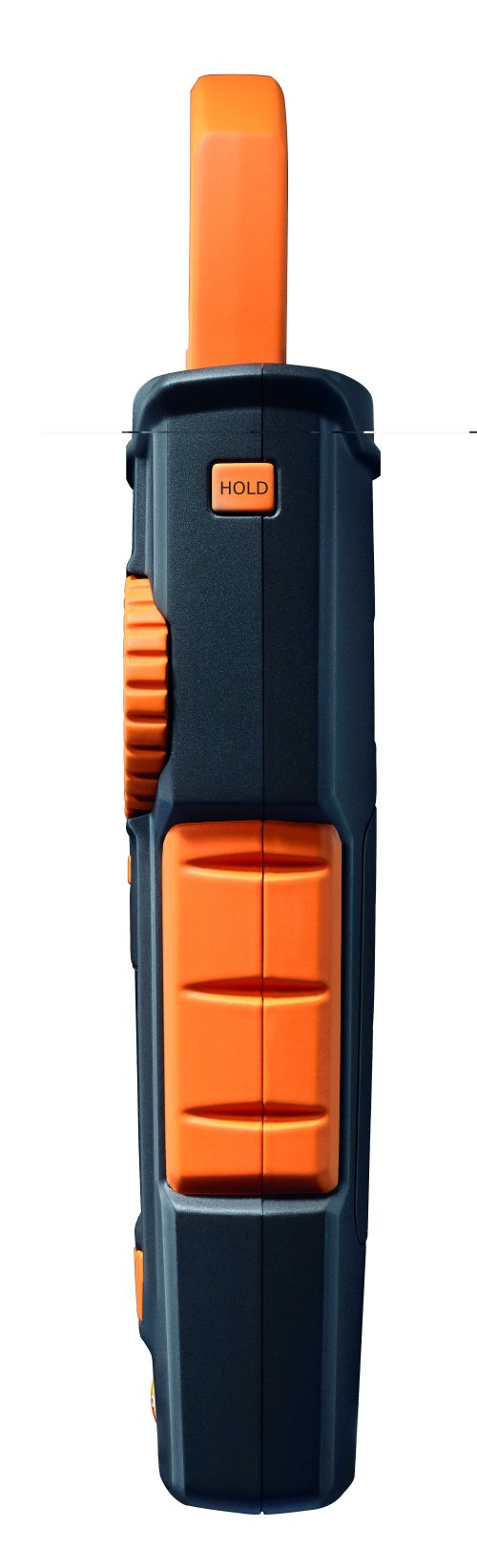

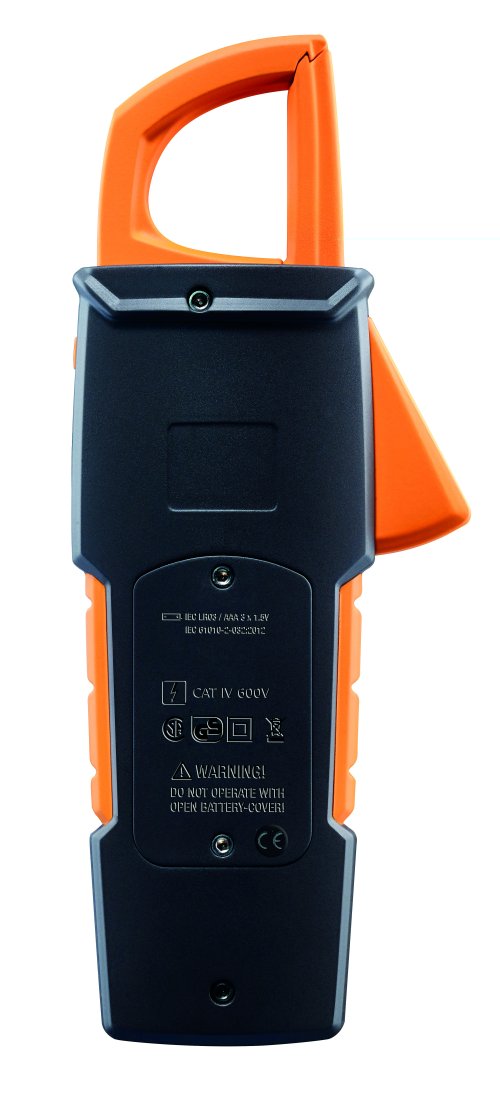

testo 770-1 clamp meter with digital multimeter and TRMS inrush

ORDER ME IN
Product code: IC-0590-7701

Backorder Now, once ordered your item will dispatch before the 10th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

The testo 770-1 clamp meter is ideally suited for non-contact current measurement on tightly packed power cables or conductors with a small diameter. The unique grab mechanism means you can grab each individual cable easily and safely.

Read more

$355.00 AUD + GST
 $390.50 AUD Inc. GST

USP's

  • Fully retractable pincer arm for maximum flexibility
  • Auto AC/DC
  • Large two-line display
  • The testo 770-1 clamp meter is ideally suited for non-contact current measurement on tightly packed power cables or conductors with a small diameter. The unique grab mechanism means you can grab each individual cable easily and safely.

Product Video - https://www.youtube.com/watch?v=41cBhovSN7w&t=3s

Product Description

This clamp meter means you can cope in any application environment, no matter how tight. The movable pincer arm can be fully retracted into the instrument, so that you can for instance grab tightly packed cables in switching cabinets as if you were using a hook. You have never been able to measure as conveniently as this in tight spots.

The operation of the testo 770-1 clamp meter is also easier and more reliable than ever before. It automatically detects and selects AC/DC and other electrical parameters, such as resistance, continuity, diode and capacitance. In addition, you can also use it to measure the starting current. And the two-line display presents your readings clearly and distinctly.

Delivery Scope

Testo 770-1 TRMS clamp meter, including battery and 1 set of measuring cables.

Specifications


DC Voltage:

- Measuring Range: 0.1 mV to 600 V
- Resolution: 0.1 mV
- Accuracy: +/- (0.8 % of mv + 3 Digit)

AC Voltage:
- Measuring Range: 0.1 to 600 V
- Resolution: 0.1 mV
- Accuracy: +/- (1.0 % of mv + 3 Digit)

DC Current:

- Measuring Range: 0.1 to 400 A
- Resolution: 0.1 A
- Accuracy: +/- (2 % of mv + 5 Digit)

AC Current:

- Measuring Range: 0.1 to 400 A
- Resolution: 0.1 A
- Accuracy: +/- (2 % of mv + 5 Digit)

Resistance:

- Measuring Range: 0.1 Ohm to 40 MOhm
- Resolution: 0.1 Ohm
- Accuracy: +/- (1.5 % of mv + 3 Digit)

Capacitance:

- Measuring Range: 10 nF to 100.00 mF
- Accuracy: +/- (1.5 % of mv + 5 Digit)
- Resolution: 0.01 nF

Frequency:

- Resolution: 10 nF to 100.0 ?F
- Accuracy: +/- (0.1 % of mv + 1 Digit)
General technical data:
- Operating temperature: -10 to +50 C
- Protection class: IP64
- Storage temperature: -15 to +60 C
- Overvoltage Category: CAT IV 600V; CAT III 1000V
- Authorizations: CSA; CE
- Weight: 378 g
- Dimensions: 249 x 96 x 43 mm
Measurement functions:
- Diode test
- Continuity testing
- Display lighting
- Hold
- MinMax
- True RMS
- Inrush current measurement
- Display (6,000 counts)
- Autom. measurement parameter detection
