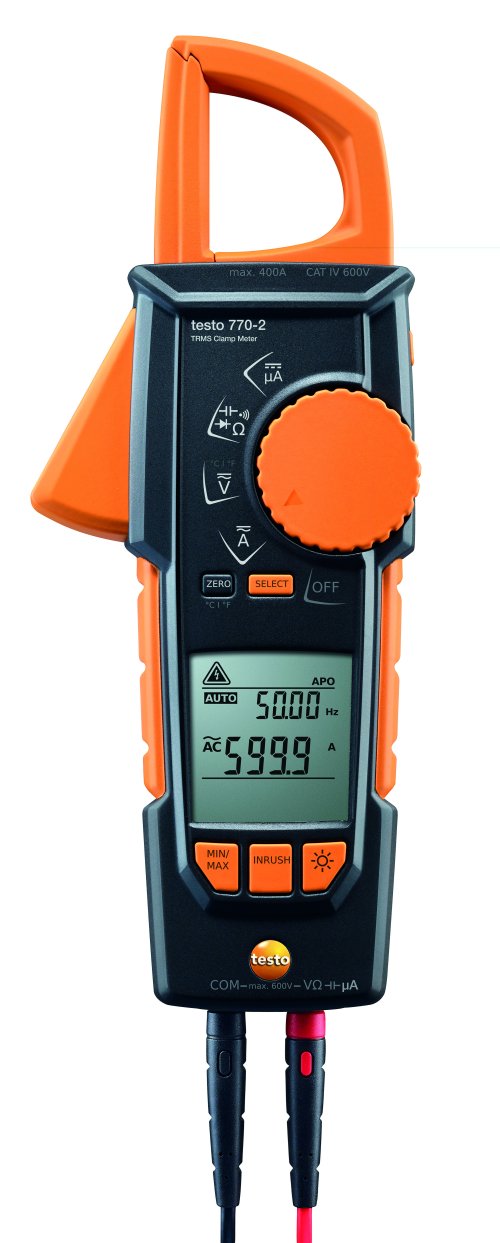

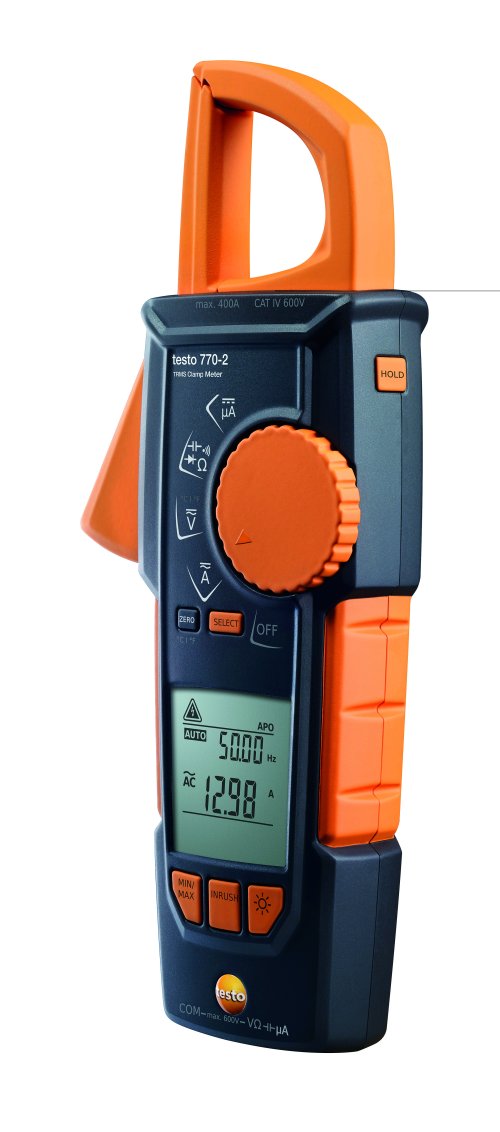

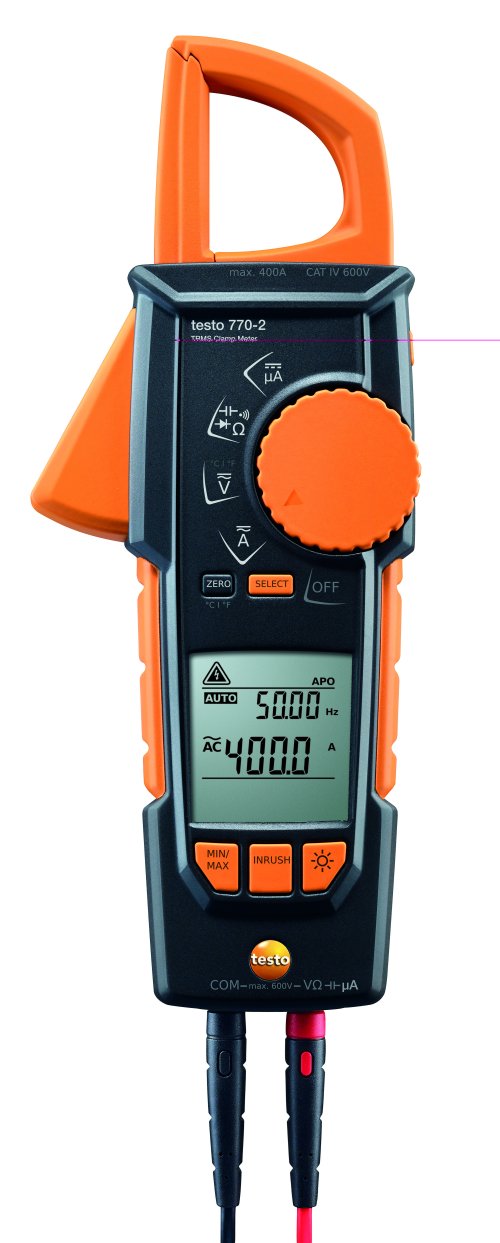

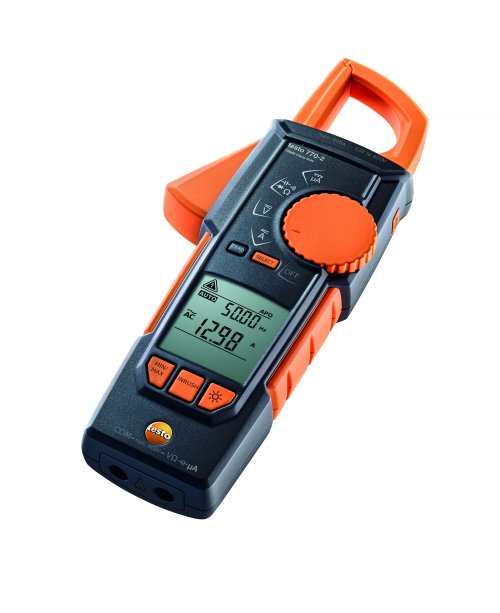

Testo 770-2 clamp meter with built in multimeter TRMS, inrush and temperature measurement

ORDER ME IN
Product code: IC-0590-7702

Backorder Now, once ordered your item will dispatch before the 10th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

The innovative grab mechanism makes the testo 770-2 the perfect clamp meter for non-contact measurements on tightly packed cables with a small diameter. In addition to the standard functions of the testo 770-1 clamp meter, it also offers a temperature adapter and measures current in the uA range.

Read more

$464.00 AUD + GST
 $510.40 AUD Inc. GST

USP's

  • Fully retractable pincer arm to make your work easy
  • Auto AC/DC and large two-line display
  • Measuring functions for starting current on electric motors and ?A measurements
  • Temperature adapter for type K thermocouples
  • The innovative grab mechanism makes the testo 770-2 the perfect clamp meter for non-contact measurements on tightly packed cables with a small diameter. In addition to the standard functions of the testo 770-1 clamp meter, it also offers a temperature adapter and measures current in the uA range.

Product Video - https://www.youtube.com/watch?v=41cBhovSN7w&t=3s

Product Description

The testo 770-2 clamp meter makes it so much easier to work on tight measuring points, such as switching cabinets. The clamp meter's movable pincer arm can be fully retracted into the instrument. This means you can accurately grab tightly packed conductors such as cables and check them for faults.

Furthermore, it enables measurement of the starting current on electric motors and ionisation current testing in the uA range. The supplied temperature adapter for thermocouple probes can be used to measure electrical parameters as well as temperatures (compatible type K thermocouple probe can be ordered separately).

The clamp meter detects and selects AC/DC fully automatically and also provides automated selection of other electrical parameters such as resistance, continuity, diode and capacitance. This makes operation easier and more reliable than ever before. Your readings are clearly and distinctly presented on the two-line display.

Delivery Scope

Testo 770-2 TRMS clamp meter, including batteries, 1 set of measuring cables and 1 x adapter for type K thermocouples.

Specifications

Temperature - TC Type K (NiCr-Ni):

- Measuring Range: -20 to +500 C
- Resolution: 0.2 C
- Accuracy: +/- 1 C (0 to +100 C)

DC Voltage:

- Measuring Range: 1 mV to 600 V
- Resolution: 1 mV
- Accuracy: +/- (0.8 % of mv + 3 Digit)

AC Voltage:
- Measuring Range: 1 mV to 600 V
- Resolution: 1 mV
- Accuracy: +/- (1.0 % of mv + 3 Digit)

DC Current:

- Measuring Range: 0.1 ?A to 400 A
- Resolution: 0.1 ?A
- Accuracy: +/- (2 % of mv + 5 Digit)

AC Current:

- Measuring Range: 0.1 ?A to 400 A
- Resolution: 0.1 ?A
- Accuracy: +/- (2 % of mv + 5 Digit)

Resistance:

- Measuring Range: 0.1 Ohm to 40 MOhm
- Resolution: 0.1 Ohm
- Accuracy: +/- (1.5 % of mv + 3 Digit)

Capacitance:

- Measuring Range: 10 nF to 100.0 ?F
- Accuracy: +/- (1.5 % of mv + 5 Digit)
- Resolution: 0.01 nF

Frequency:

- Accuracy: +/- (0.1 % of mv + 1 Digit)
General technical data:
- Operating temperature: -10 to +50 C
- Protection class: IP64
- Storage temperature: -15 to +60 C
- Overvoltage Category: CAT IV 600V; CAT III 1000V
- Authorizations: CSA; CE
- Weight: 378 g
- Dimensions: 249 x 96 x 43 mm

Measurement functions:
- Diode test
- Continuity testing
- Display lighting
- Hold
- MinMax
- Temperature measurement with adapter
- True RMS
- Inrush current measurement
- Display (6,000 counts)
- ?A current measuring range
- Autom. measurement parameter detection
