Oven Temperature Profiling kit - ThermoVault

ORDER ME IN
Product code: ThermoVault

Backorder Now, once ordered your item will dispatch before the 20th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

Oven Temperature Profiling kit. Comes with TC101A Thermocouple based Temperature Data Logger with screw terminal, Thermally insulated enclosure, and Type K thermocouple probe.

Read more

$2,809.80 AUD + GST
 $3,090.78 AUD Inc. GST

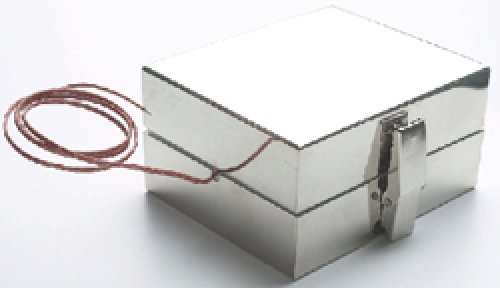

The ThermoVault is a thermally insulated, battery powered, stand alone, thermocouple based temperature data logger used for the thermal profiling of ovens. The device records temperature data inside an oven to be later downloaded from to the users PC.

The ThermoVault will measure and record data for up to 500,000 measurements per channel. It can withstand an oven temperature of up to 572F for up to 15 minutes when properly sealed. The devices real time clock ensures that all data is time and date stamped. The storage medium is non-volatile solid state memory, providing maximum data security even if the battery becomes discharged. The device can be started and stopped directly from your computer and its small size allows it to fit almost anywhere. The ThermoVault makes data retrieval quick and easy. Simply plug it into an empty USB port and our user-friendly software does the rest.


Specifications

Temperature

Internal Channel Temperature Sensor
Semiconductor

Internal Channel Temperature Resolution
0.1C

Internal Channel Temperature Calibrated Accuracy
0.25C

Remote Channel Temperature Sensor
Thermocouple Types J, K, T, E, R, S, B ,N

Remote Channel Temperature Range
Thermocouple Dependent

Remote Channel Temperature Resolution
Thermocouple Dependent

Remote Channel Temperature Calibrated Accuracy
Thermocouple Dependent


General

Memory
500,000 readings; software configurable memory wrap
250,000 readings in multiple start/stop mode

Reading Rate
1 reading every second to one every 12 hours

Baud Rate
115,200

Cold Junction Compensation
Automatic

Channels
1 Internal & 1 Remote

LED Indicators
Red & Green

Battery Life
10 Years typical at a 15 minute reading rate

Material
304 stainless steel w/ PTFE insulation

Dimensions
4.8" x 4.8" x 2.5" (122mm x 122mm x 65mm)

Operating Environment
See specifications sheet, 0~95%RH non-condensing

Required Interface Package
IFC200
