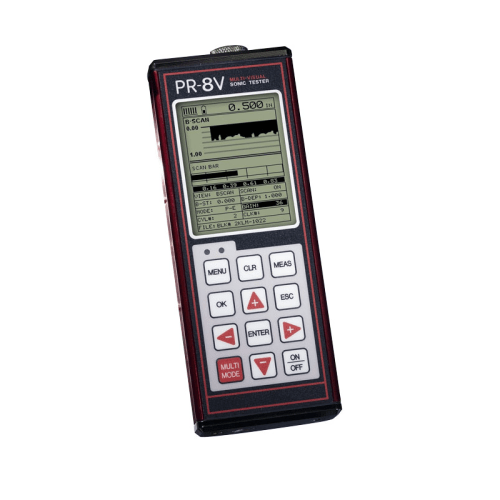

The Check-Line PR-8V thickness gauge is designed for specifically for the needs engine builders and race shops. The time-based B-Scan feature of the PR-8V displays a cross section of the opposite surface, allowing engine builders the ability to see the contour of the back surface in cylinders while scanning.
The internal Data Logger of the PR-8V has been customized for both the engine builder and the chassis inspector. Selectable cylinder mapping or general
alpha numeric file storage will satisfy your reporting needs.
Built-in transducer types offer increased linearity between transducers. The Fast Scan feature provides a better representation during the scanning process,
by making 32 measurements per second. Remove the transducer from the test material to display the thinnest measurement found.
Use the visual and audible alarm to set Hi and Lo limits to signal the inspector when the measurements are out of tolerance.
The PR-8V also comes complete with our Windows PC software for transferring data to and from a PC, and viewing B-Scans, Cylinder Maps, and general measurements.
Features:
- Selectable low, medium, and high gain settings offer the inspector the additional punch power for materials that are hard to penetrate.
- Store up to 64 custom setups. Factory setups available for common applications.
- Selectable transducer types with built-in dual path error correction for improved linearity.
- Fast-Scan Mode: Takes 32 readings per second and displays the minimum reading found when the transducer is removed.
- Use the visual and audible alarm to set Hi and Lo limits to signal the inspector when the measurements are out of tolerance.
- 2 year warranty
- The PR-8V is supplied as a complete kit with the gauge, probe, 4 oz. bottle of coupling fluid, 2 AA batteries, data transfer cable, Windows Software,
NIST Calibration Certificate, and Operating Instruction Manual - all in a foam-fitted carrying case.
Measurement Modes:
- Pulse-Echo (flaws, pits)
- Echo-Echo (thru-paint)
Specifications
:
- Range in Steel (Pulse-Echo Mode): Standard operating mode for engines and automotive parts without painted surfaces (pits or flaws detection) measures
from 0.63 to 254 millimeters (0.025 - 9.999inches)
- Range in Steel (Echo-Echo Mode: Thru Paint & Coatings): 0.05 to 4.0inches (1.27 to 102 millimeters). Range will vary +/- depending on the thickness
of coating.
- Resolution: 0.001 inches (0.01mm)
- Velocity Range: 0.0492 to 0.3936 in./ms; 1250 to 9999 meters/sec
- Units: English & Metric
- Transducer Types: Dual Element (1 to 10 MHz).
- Memory: 16 megabit non-volatile ram
- Memory capacity: 12,000 pages with 1 reading and waveform per page
- Power Source: Three 1.5V alkaline or 1.2V NiCad AA cells
- Battery Life: Typically operates for 150 hours on alkaline and 100 hours on NiCad
- Auto Power off: if idle 5 min
- Display: 1/8 in. VGA grayscale display 62 x 45.7mm
- Keyboard: Membrane switch with twelve tactile keys
- Case:Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed).
- Operating Temperature: -10 to 60 C (-14 to 14 F)
- Weight, net: 13.5 ounces
- Dimensions: 63.5 W x 165 H x 31.5 D mm
- Warranty: 2 year limited
- Certification: CE Approved, Factory calibration traceable to national standards
