Thru-Paint Ultrasonic Wall Thickness Gauge - IC-ZX-6
Backorder Now, once ordered your item will dispatch before the 13th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

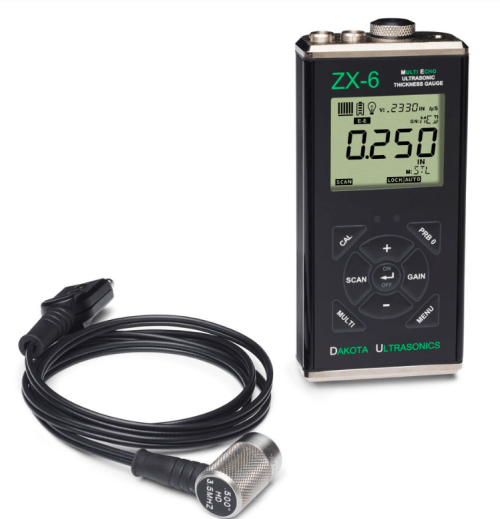

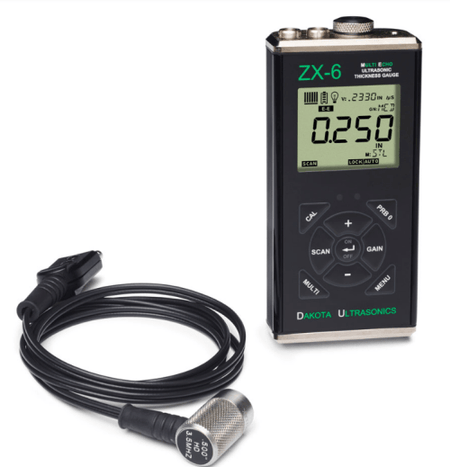

The new Dakota ZX-6 Wall Thickness Gauge accurately measures wall thickness and the extent of corrosion of all metals, ceramics, glass and most rigid plastics - from only one side!When operated in E-E Mode (Thru-Paint Mode), the coating is eliminated from the reading and the gauge will display only the thickness of the metal wall.
Regular price
$4,579.30 AUD
+ GST
$5,037.23 AUD Inc. GST
$5,037.23 AUD Inc. GST
The new Dakota ZX-6 Wall Thickness Gauge accurately measures wall thickness and the extent of corrosion of all metals, ceramics, glass and most rigid plastics - from only one side!When operated in E-E Mode (Thru-Paint Mode), the coating is eliminated from the reading and the gauge will display only the thickness
of the metal wall.
ZX-6 Features include Automatic or Manual Probe Zero maximizing accuracy, 5-position Gain Adjustment to help located the correct backwall echo and to penetrate
the walls on sound-attenuating materials such as cast metals and thick materials. It also features Differential mode, Hi-Low Alarms with audible and
visual indicators and Scan mode that captures the minimum thickness at 100 measurements per second (100 Hz). It also includes a special Velocity Mode
to measure in terms of velocity for nodularity testing.
The ZX-6 can be used in a Single Thickness Reading mode or in a Scan mode , where the probe is dragged over a large measuring area. The minimum thickness
reading recorded during the "scan" will be displayed.
The gauge and probe have a protection rating of IP67, is impact-resistant and environmentally sealed to provide trouble-free operation under the toughest
field conditions. The ZX-6 is covered by a 5-Year Limited Warranty, CE-certified and is proudly Made in the USA.
Features:
- Includes both Pulse-Echo Mode (Pit & Flaw Detection) and Echo-Echo Mode (Through Paint & Coatings Mode)
- Using the standard probe T-102-2700, the gauge will read thru 0.040" coating thickness (1 mm)
- Using one of the optional probes T-104-2700, the gauge will read thru 0.075" coating thickness (1.9 mm)
- Calibrate to a sample of known thickness which automatically calculates the optimal acoustic velocity
- 2-Point Calibration to optimize linearity over a wide measurement range, automatically calculates the optimal acoustic velocity
- Scan mode, 100 readings/sec. Probe is slid over a large measuring area, the minimum thickness during the "scan" will be displayed
- Adjustable GAIN in 5 steps to fine tune the gauge for use on challenging materials or applications
- Differential mode, Hi-Low Alarms with audible and visual indicators
- User-selected Manual or Auto Zero of Transducer
- The extruded aluminum housing is impact-resistant and environmentally sealed (IP 65) to provide trouble-free operation under the toughest field conditions
- High visibility LCD Display is readable in all lighting conditions and temps as low as 22 F (-30 C)
- LCD shows Thickness Value, Velocity Setting, Gain Setting, Stability & Battery Indicators, Scan Mode, Zero, units and stored data
- Special-purpose probes are offered for a variety of applications (1 to 10 MHz)
- Single value data output via USB port
- Selectable Backlight ON/OFF/AUTO
- Resolution of 0.001 inch (0.01 mm)
- 5 Year Warranty, CE-Certified and Made in USA
- Includes NIST Traceable Calibration Certificate

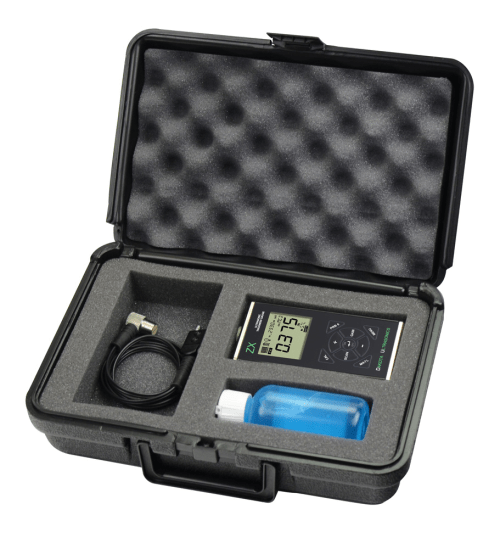

- The ZX-6 is supplied as a complete kit with the gauge, probe, 4 oz. bottle of coupling fluid, 2 AA batteries, NIST-Traceable Calibration Certificate,
and Operating Instruction Manual - all in a foam-fitted carrying case.
Specifications
- Range in Steel (Pulse-Echo Mode, it & Flaw Detection): 0.025 to 19.999 inches (0.63 to 500 millimeters)
- Range in Steel (Echo-Echo Mode, Through Paint & Coatings): 0.100 to 1.000 inch (2.54 to 25.40 millimeters)
- Resolution: 0.001 inch (0.01 mm)
- Velocity Range: 0.0120 to 0.7300 in/us. 305 to 18,542 meters/sec
- Measuring Mode: Pulse-Echo (P-E), Echo-Echo (E-E, Thru-Paint Mode), Scan, Differential, Alarm and VX-velocity
- Time Dependent Gain (TDG): Used in both pulse-echo (P-E) and Echo-Echo (E-E) modes depending on transducer and frequency selected
- Probe (Standard): 1/4", 5 MHz Hi-Damp Dual Element Transducer, actual wearface is 5/8" (17mm), p/n T-102-2700
- Probes (optional): 1 to 10 MHz, 3/16" up to 1 inch (custom probes available)
- Probe Wearface: PEEK (Polyethylethylkytone)
- Cable: 1.2m (4ft.) waterproof cable with non-polarized, quick-disconnect connectors
- LCD Display: Multi-function 7 segment 4.5 digit liquid crystal display with 0.500" digit height. Two 0.125 in14 segment fields for labels and values,
and one 7 segment field for labels and values. Additional icons to indicate features and modes
- Display Backlight: Backlight is selectable on/off/auto, and selectable brightness (Lo, Med, Hi) options
- Housing: Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed)
- Housing Rating: IP65
- Display Update Rate: 10 Hz (10 updates/sec)
- Temp. Limits (Ambient): -30 to 75 C (-22 to 167 F)
- Temp. Limits (Material): -20 to 100 C (0 to 200 F)
- Battery Type: 2x AA batteries (rechargeable batteries can be used)
- Battery Life: 45 hours continuous use
- Weight: 308 grams (11 ounces)
- Dimensions: 63.5 x 131.3 x 31.5 mm (2.5" x 5.17" x 1.25")
- Certifications: NIST Traceable and MIL-STD-45662A
