Thru-Paint Ultrasonic Wall Thickness Gauge, Probe, Datalogging, USB
Backorder Now, once ordered your item will dispatch before the 13th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

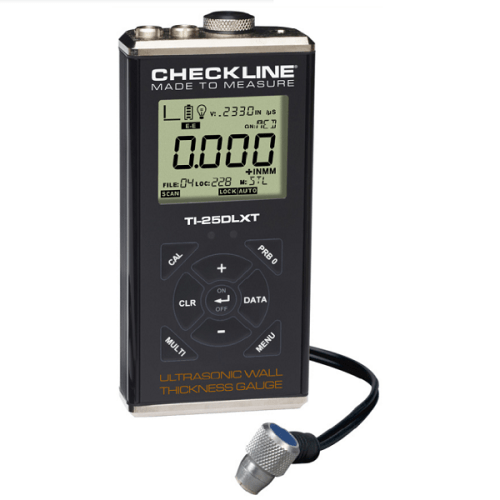

The new CHECK-LINE TI-25DLXT Wall Thickness Gauge accurately measures wall thickness and the extent of corrosion of all metals, ceramics, glass and most rigid plastics from one side. When operated in E-E Mode (Thru-Paint Mode), the coating is eliminated from the reading and the gauge will display only the thickness of the metal wall.
Regular price
$4,579.70 AUD
+ GST
$5,037.67 AUD Inc. GST
$5,037.67 AUD Inc. GST
The new CHECK-LINE TI-25DLXT Wall Thickness Gauge accurately measures wall thickness and the extent of corrosion of all metals, ceramics, glass and most rigid plastics from one side. When operated in E-E Mode (Thru-Paint Mode), the coating is eliminated from the reading and the gauge will display only the thickness of the metal wall.
The TI-25DLXT offers data logging for 10,000 values with 250 readings per batch, up to 40 separate batches and USB Output. Data can be transferred into
any program in CSV format or viewed in Datacomm Software (free download).
The TI-25DLXT permits the operator to select from 8 preset materials as well as program 2 custom material velocities, plus allows free adjustment of the
velocityand allows the end-user to calibrate to a sample of known thickness where the velocity is automatically calculated. Additionally, to optimize
linearity over a wide range, the user can perform a 2 point calibration to two samples of known thickness. The optimal velocity is automatically calculated
to provide the highest accuracy and linearity between the low and high calibration points.
The TI-25DLXT's probe is waterproof and can be submerged in water. The gauge is impact-resistant and environmentally sealed (IP65) to provide trouble-free
operation under the toughest field conditions.
Features:
- Includes NIST Traceable Calibration Certificate
- Built-in datalogging for 10,000 data values stored in up to 40 batches with 250 values/batch with USB Output.
- Data can be transferred into any program in ".csv" format or viewed in Datacomm Software (free download)
- Includes both Pulse-Echo Mode (Pit & Flaw Detection) and Echo-Echo Mode (Through Paint & Coatings Mode)
- Using the standard probe T-102-2700, the gauge will read thru 0.040" coating thickness (1 mm)
- Using one of the optional probes T-104-2700, the gauge will read thru 0.075" coating thickness (1.9 mm)
- User can select from 8 preset materials as well as program 2 custom material velocities
- Calibrate to a sample of known thickness which automatically calculates the optimal acoustic velocity
- 2-Point Calibration to optimize linearity over a wide measurement range, automatically calculates the optimal acoustic velocity
- Scan mode, 100 readings/sec. Probe is slid over a large measuring area, the minimum thickness during the "scan" will be displayed
- Adjustable GAIN in 5 steps to fine tune the gauge for use on challenging materials or applications
- Special-purpose probes are offered for a variety of applications (1 to 10 MHz)
- The extruded aluminum housing is impact-resistant and environmentally sealed (IP 65) to provide trouble-free operation under the toughest field conditions
- High visibility LCD Display is readable in all lighting conditions and temps as low as 22 F (-30 C)
- LCD shows Thickness Value, Velocity Setting, Gain Setting, Stability & Battery Indicators, Scan Mode, Zero, units and stored data
- Switch-selected units for inches or mm with Resolution of 0.001 inch (0.01 mm)
- Selectable Backlight ON/OFF/AUTO
- 5 Year Warranty, CE-Certified and Made in USA
Specifications
- Range in Steel, Pulse-Echo Mode (Pit & Flaw Detection): 0.025 to 19.999 inches (0.63 to 500 millimeters)
- Range in Steel, Echo-Echo Mode (Through Paint & Coatings): 0.100 to 1.000 inch (2.54 to 25.40 millimeters)
- Resolution: 0.001 inch (0.01 mm)
- Velocity Range: 0.0120 to .7300 in/?s. 305 to 18,542 meters/sec
- LCD Display: Multi-function 7 segment 4.5 digit liquid crystal display with 0.500" digit height. Two 0.125 in 14 segment fields for labels and values,
and one 7 segment field for labels and values. Additional icons to indicate features and modes
- Display Backlight: Backlight is selectable on/off/auto, and selectable brightness (Lo, Med, Hi) options
- Display Update Rate: 10 Hz (10 updates/sec)
- Probe (Standard, included): 1/4", 5 MHz Hi-Damp Dual Element Transducer, actual wearface is 5/8" (17mm), p/n T-102-2700
- Probe Wearface: PEEK (Polyethylethylkytone)
- Cable: 1.2m (4ft.) waterproof cable with non-polarized, quick-disconnect connectors
- Temp. Limits (Ambient): -30 to 75 C (-22 to 167 F)
- Temp. Limits (Material): -20 to 100 C (0 to 200 F)
- Battery Type: 2x AA batteries (rechargeable batteries can be used)
- Battery Life: 45 hours continuous use
- Weight: 308 grams (11 ounces)
